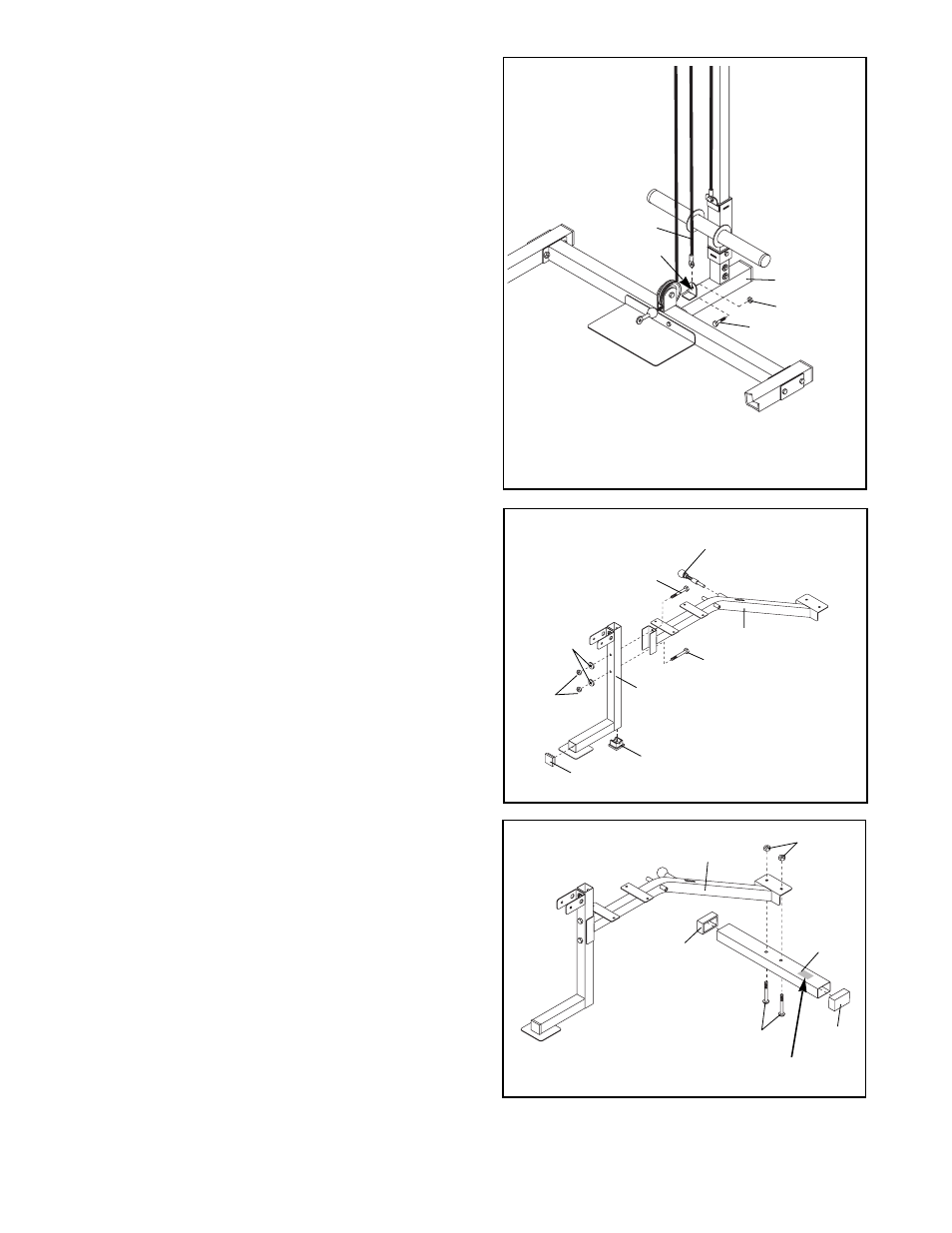

21. Attach the indicated end of the Low Cable (8) to the
bracket on the Rear Base (3) using an M10 x 20mm
Bolt (26) and an M10 Nylon Locknut (11).
21
26
11
3
8
Bracket
22. Press a 50mm Square Inner Cap (10) into the indi-
cated end of the Front Leg (73). Insert a 50mm
Square Inner Cap (10) into the bottom of the Front
Leg.
Attach the Front Leg (73) to the Bench Frame (63)
using two M10 x 65mm Bolts (56), two M10 Small
Washers (6), and two M10 Nylon Locknuts (11).
Insert the Backrest Knob (80) into the Bench Frame
(63) and tighten.
22
23. Press a 50mm x 70mm Outer Cap (60) onto each
end of the Stabilizer (87). Attach the Stabilizer to
the Bench Frame (63) using two M10 x 60mm
Carriage Bolts (64) and two M10 Nylon Locknuts
(11).
Note: The dents on the Stabilizer (87) should
face the floor, and the decal should be in the
indicated location.
23
10
10
56
56
80
73
63
11
6
63
64
87
60
60
11
Decal
