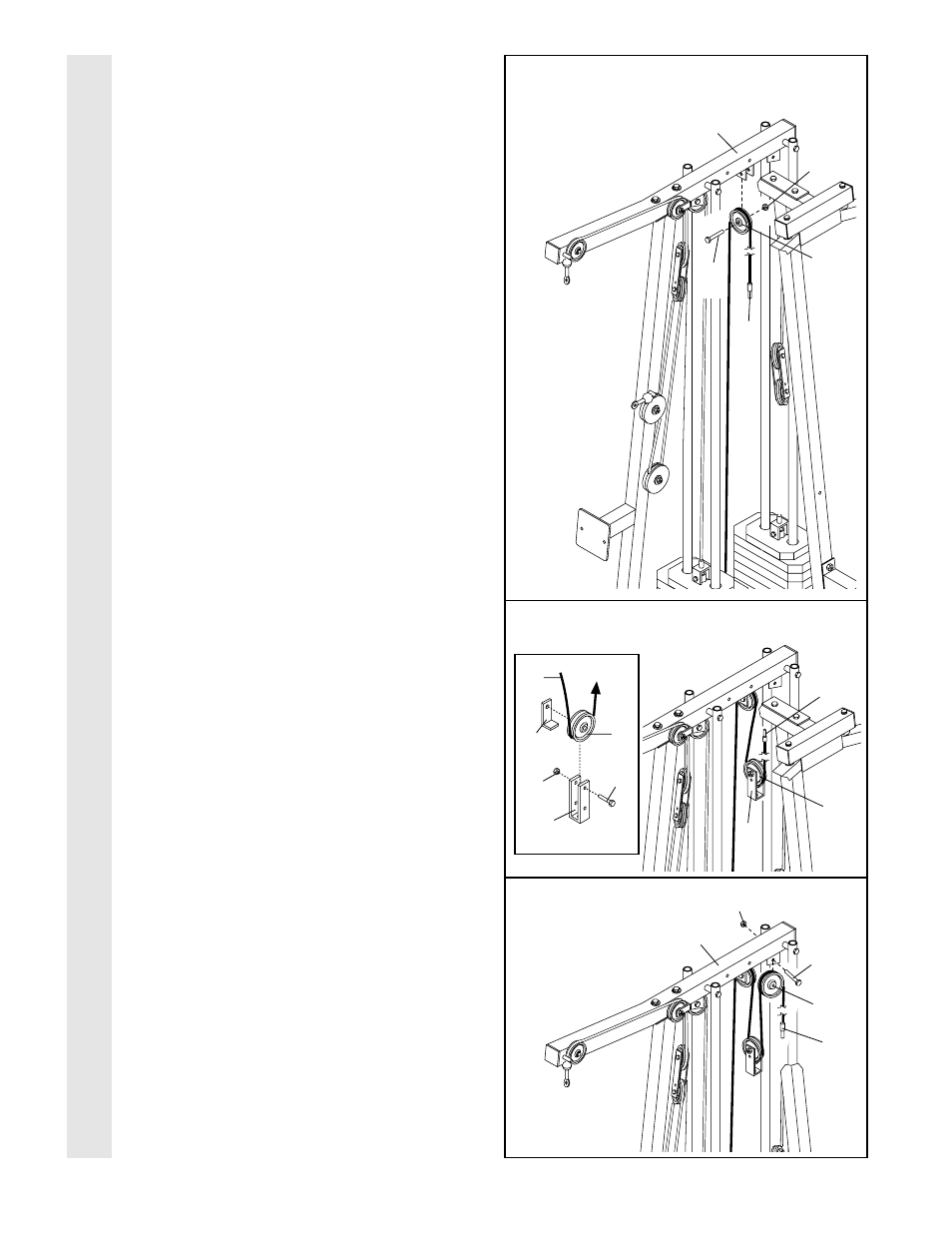

42. Wrap the Low Cable (89) around a 3 1/2”
Pulley (82). Attach the Pulley to the indicated
bracket on the Top Frame (2) with a 3/8” x 2”
Bolt (50) and a 3/8” Nylon Locknut (42). The
Cable must be routed from the direction
shown.
43. See the inset drawing. Attach a 3 1/2” Pulley
(82) and a Cable Trap (80) to the upper hole
in the Large “U” Bracket (84) with a 3/8” x 2”
Bolt (50) and a 3/8” Nylon Locknut (42). Be
sure that the Cable Trap is inside the
Large “U” Bracket. Note: This may come
pre-assembled.
Route the Low Cable (89) through the Large
“U” Bracket (84) and the 3 1/2” Pulley (82).
Be sure that the Cable is in the groove of
the Pulley and that the Cable and Pulley
move smoothly.
44. Wrap the Low Cable (89) around a 3 1/2”
Pulley (82). Attach the Pulley to the Top
Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8”
Nylon Locknut (42). The Cable must be
routed from the direction shown.
