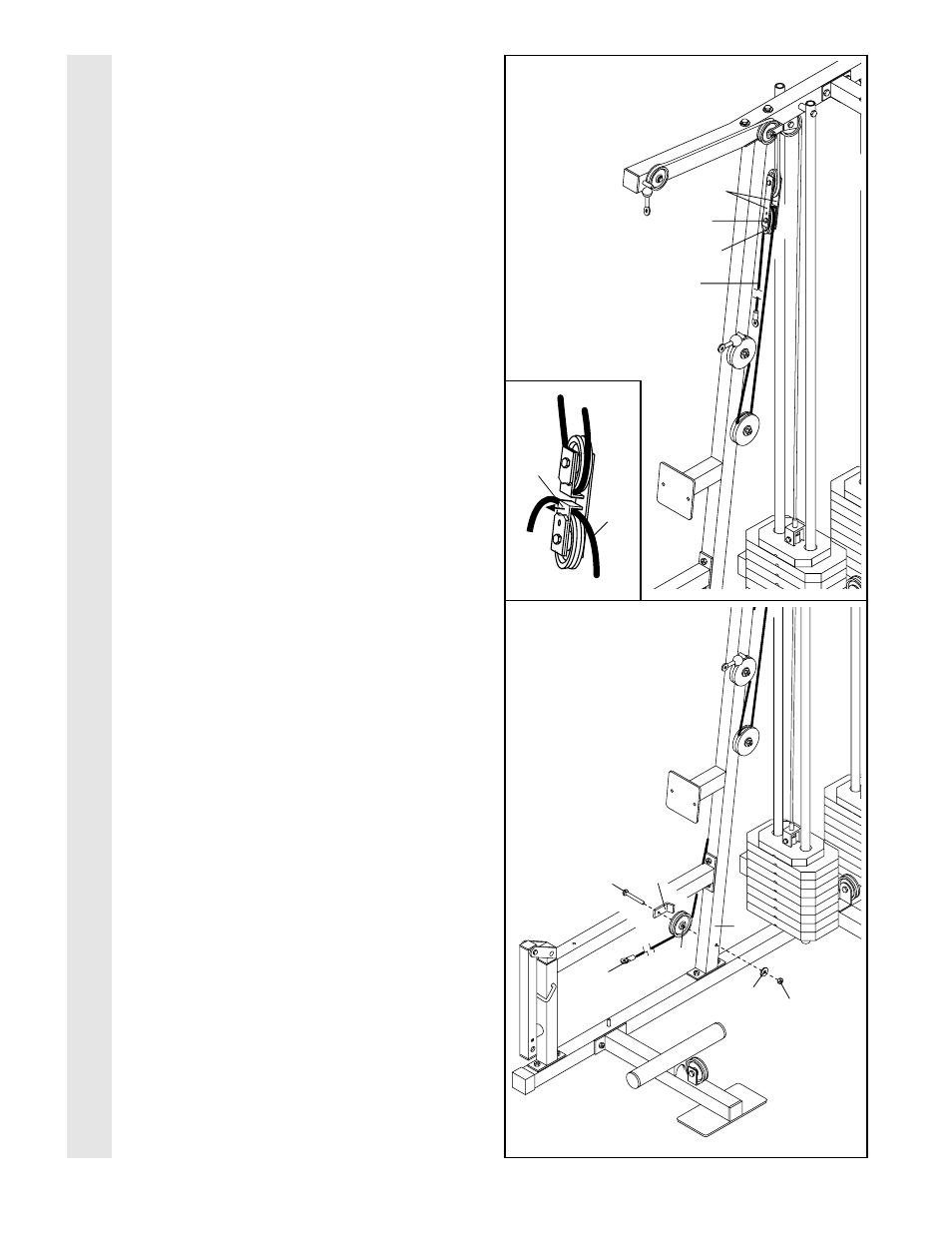

36. Route the Press Cable (88) over the indicated
3 1/2” Pulley (82) attached to the Pulley
Plates (31). The Cable must be routed from
the direction shown. Refer to the inset draw-
ing. Be sure that the Cable is between the
Cable Trap (80) and the Pulley, and that the
Cable Trap is positioned to hold the Cable
in place.
37. Wrap the Rear Cable (87) around a 3 1/2”
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the Ab Upright (1) with a 3/8” x 3
1/2” Bolt (66), a 3/8” Washer (38) and a 3/8”
Jam Nut (43). Be sure that the Cable and
Pulley move smoothly and that the Cable
is between the Pulley and the post.
36
37
17
CABLE
ASSEMBL
Y
31
82
50
43
38
82
80 66
87
1
87
87
80
