13
I N S TA L L AT I O N I N S T R U C T I O N S
U N F R A M E D M O D E L I C B C T 3 6 E U

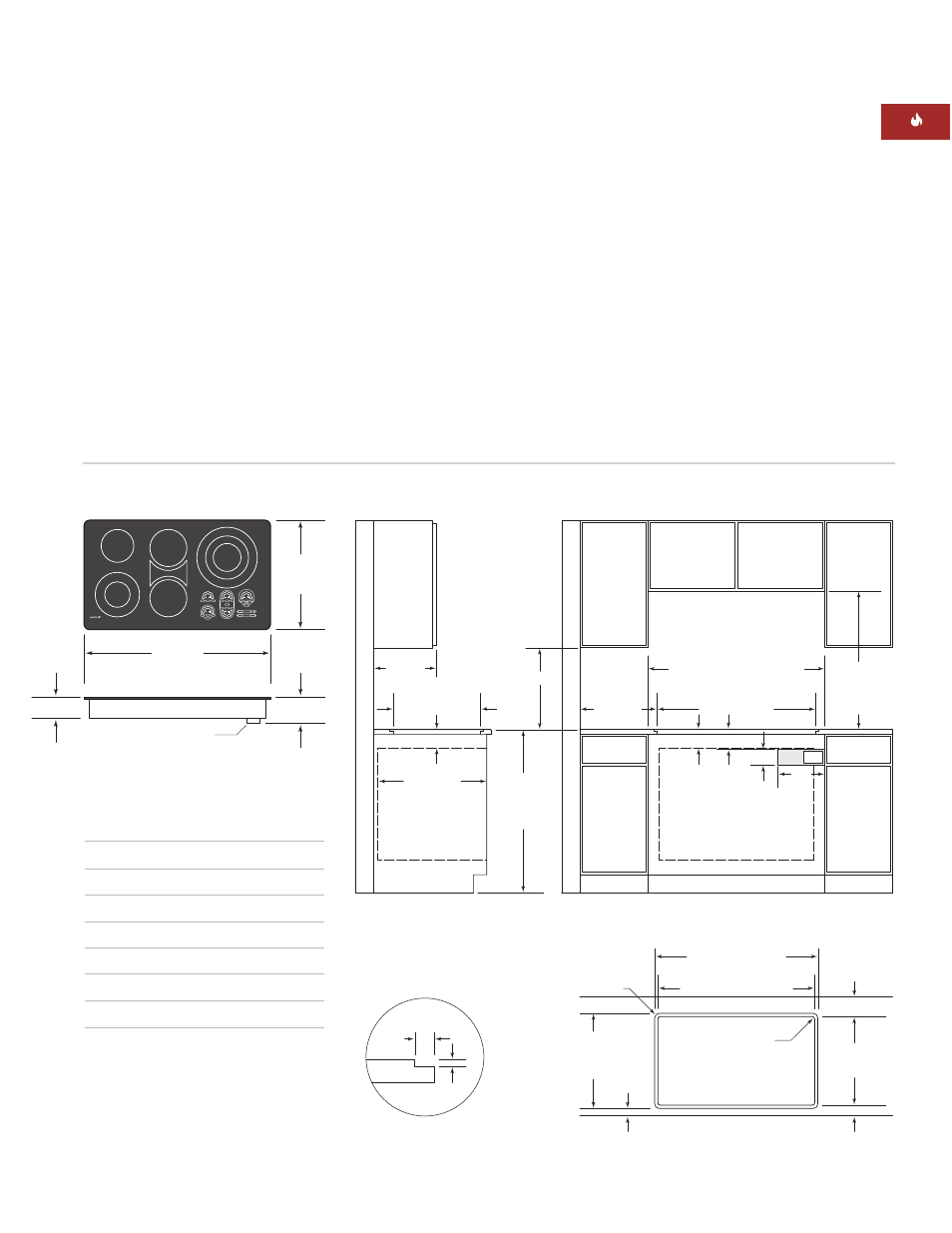

The illustrations below provide installation
specifications for Model ICBCT36EU.
For ease of installation, 991 mm cabinets are
recommended for installation of Model
ICBCT36EU.
A Wolf 914 mm built-in single oven may be
installed below Model ICBCT36EU. For this
installation, unless you are using cabinets
deeper than 610 mm, it is recommended that
the electrical supply be placed in the base
cabinet to the right of the oven. Refer to instal-
lation instructions provided with the built-in
oven for additional specifications.
If Model ICBCT36EU is installed above
cabinets, electrical placement is not critical.
A grounded electrical box should be located
within 1.2 m of the right rear of the cooktop.
For Model ICBCT36EU installation options,
refer to Unframed Installations on pages
14–15.
IMPORTANT NOTE: For flush mount applica-
tions, it is recommended to measure the
cooktop glass before cutting the countertop to
ensure a proper fit. Small variances may exist
between the template and the cooktop.
51 mm* min
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
457 mm
914 mm
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
762 mm
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
*Minimum clearance from both side edges and back edge of cooktop cut-out to combustible materials up to 457 mm above countertop.
991 mm
RECOMMENDED CABINET WIDTH
914 mm min
914 mm OVEN OPENING
918 mm**
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
873 mm
COOKTOP CUT-OUT WIDTH
33 mm
RADIUS
FRONT OF COUNTERTOP
62 mm
492 mm
COOKTOP
CUT-OUT DEPTH
40 mm
537 mm**
RECESSED AREA
FOR FLUSH MOUNT
INSTALLATION ONLY
11 mm RADIUS
**Minimum dimension, but may be exceeded by up to 3 mm.
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
8 mm
22 mm
max
COUNTERTOP
PROFILE
SEE COUNTERTOP
CUT-OUT BELOW
330 mm
max
610 mm min
SEE COUNTERTOP
CUT-OUT BELOW
51 mm*
102 mm min
E
254
mm
102 mm
min
TO OVEN
OPENING
89 mm
114 mm
Overall Dimensions
Countertop Cut-Out
533 mm
OVERALL
DEPTH
914 mm
OVERALL WIDTH
140 mm 108 mm
TERMINAL BOX
M O D E L I C B C T 3 6 E U
Overall Width 914 mm
Overall Height 108 mm
Overall Depth 533 mm
Minimum Cabinet Depth 578 mm
Minimum Height Clearance* 114 mm
Cut-Out Width 873 mm
Cut-Out Depth 492 mm
I N S T A L L A T I O N S P E C I F I C A T I O N S – M O D E L I C B C T 3 6 E U
*Minimum 159 mm clearance is required
between countertop and any combustible
surface directly below the cooktop.
For detailed terminal block dimensions,
refer to the illustration on page 7.
Dimensions may vary to ± 3 mm.
