Control panel, Control panel parts – Whirlpool GI15NDXTS1 User Manual
Page 6
6

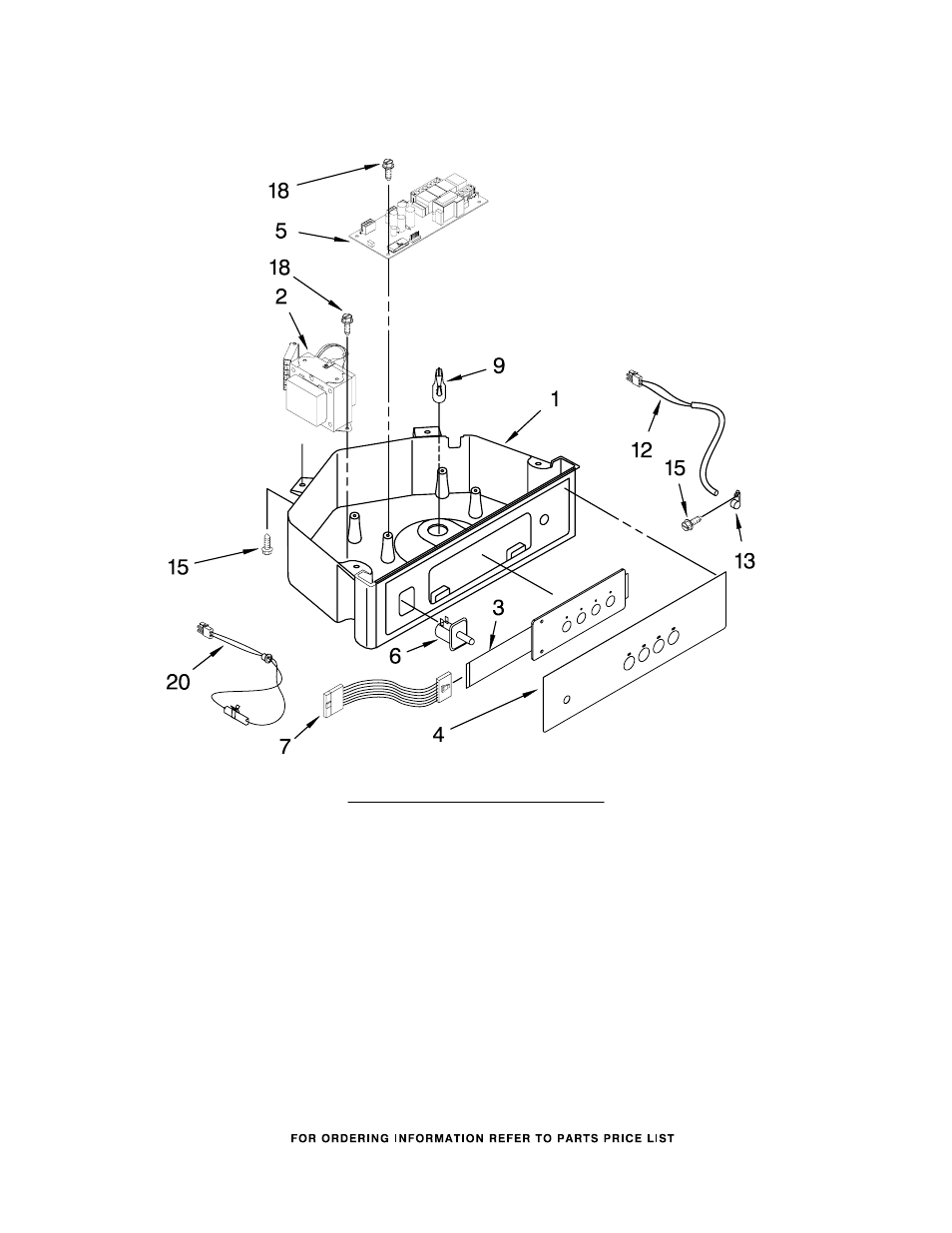

CONTROL PANEL PARTS
For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1
(White) (Black) (Stainless Steel)
W10165835
Illus. Part
No. No. DESCRIPTION
1 W10139122 Box, Control
2
2310139 Transformer
3
2304121 Assembly, Switch
(Also Order #4)
4
2313692 Overlay
5 W10122069 Control Board
6
2149705 Switch, Plunger
(Also Order # 4)
7
2187585 Wire Assy−Active
Overlay Jumper
9
745362 Bulb
12
2313633 Thermostat, Bin
13
2185825 Clamp
15
3400884 Screw
18
3400850 Screw 8−16 x 3/8
20
2313635 Thermister,
Ice Control
