4
*from floor with
dryer feet extended
1" (25 mm)
INSTALLATION INSTRUCTIONS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed:
■ Flat-blade screwdriver
■ Phillips screw driver
■ Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
(for adjusting dryer feet)
■ Level
■ Utility knife
■ 1/4" socket wrench or
1/4" nut driver
■
Vent clamps
■ Caulk gun and caulk (for
installing new exhaust
vent)
Parts supplied:
Parts package is located in dryer drum. Check that all parts
are included.
Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
■ Check code requirements: Some codes limit or do not permit
installation of clothes dryers in garages, closets, or sleeping
quarters. Contact your local building inspector.
■ Make sure that lower edges of the cabinet, plus the back and
bottom sides of the dryer, are free of obstructions to permit
adequate clearance of air openings for combustion air. See
“Recessed Area and Closet Installation Instructions” for
minimum spacing requirements.
NOTE: The dryer must not be installed in an area where it will be
exposed to water and/or weather.
4 Leveling legs

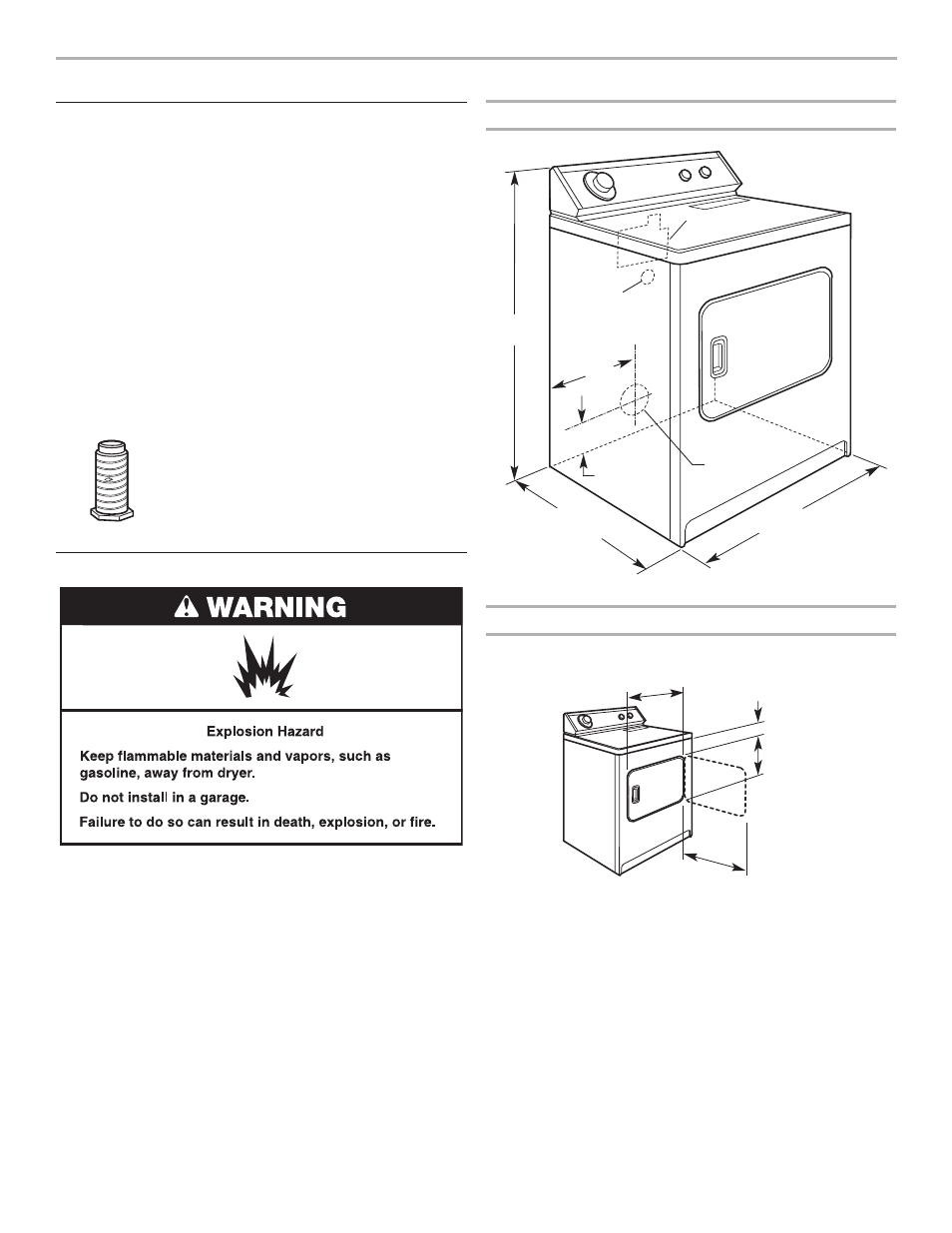

Dryer Dimensions
29"
(737 mm)
28" max.
(711 mm)
14 1 /
2
"
(368 mm)
dryer
exhaust
vent
power supply
cord/cable
opening
terminal block
cover
42 3 /
8
"*
(1076 mm)
6"
(152 mm)*
Door Clearance
22 3 /
4
"
(578 mm)
22 3 /
4
"
(578 mm)
19 1 /
8
"
(486 mm)
3 7 /
8
"
(98 mm)
