M10 x 63mm Bolt (30)
M10 x 85mm Bolt (23)
M10 x 20mm Bolt (25)
M10 x 63mm Carriage Bolt (18)
M6 x 60mm Bolt (31)
M6 x 16mm Bolt (24)
M6 Washer (22)
M10 Nylon Locknut (19)
M4 x 16mm Screw (28)
M10 x 70mm Bolt (26)
M10 Washer (20)
M10 Large Washer (27)
PART IDENTIFICATION CHART

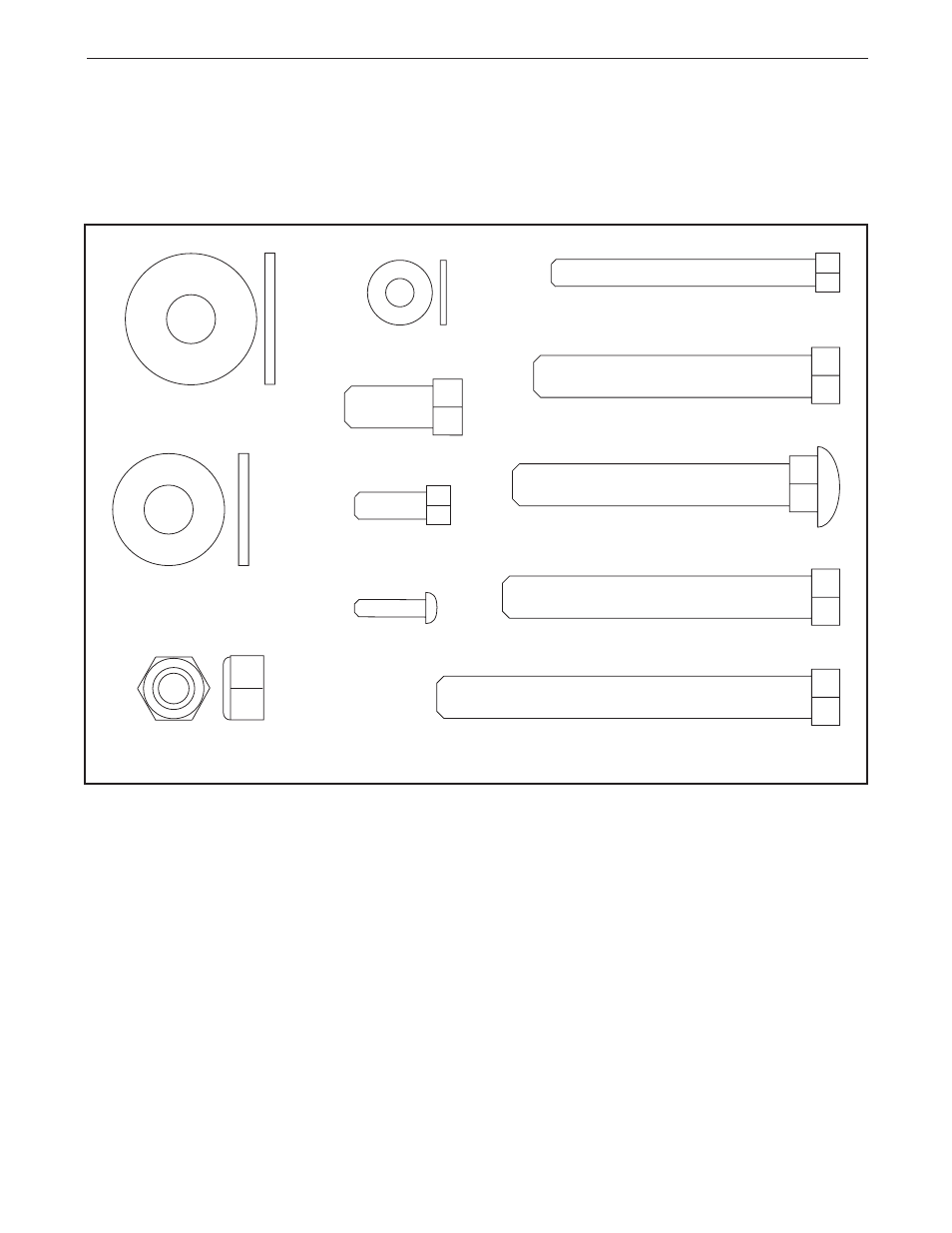

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST on page 11 of this manual. Note: Some parts may have
been pre-assembled for shipping purposes. If you cannot find a part in the parts bags, check to see if it
has been pre-assembled. If a part is missing, call toll-free 1-800-999-3756.
