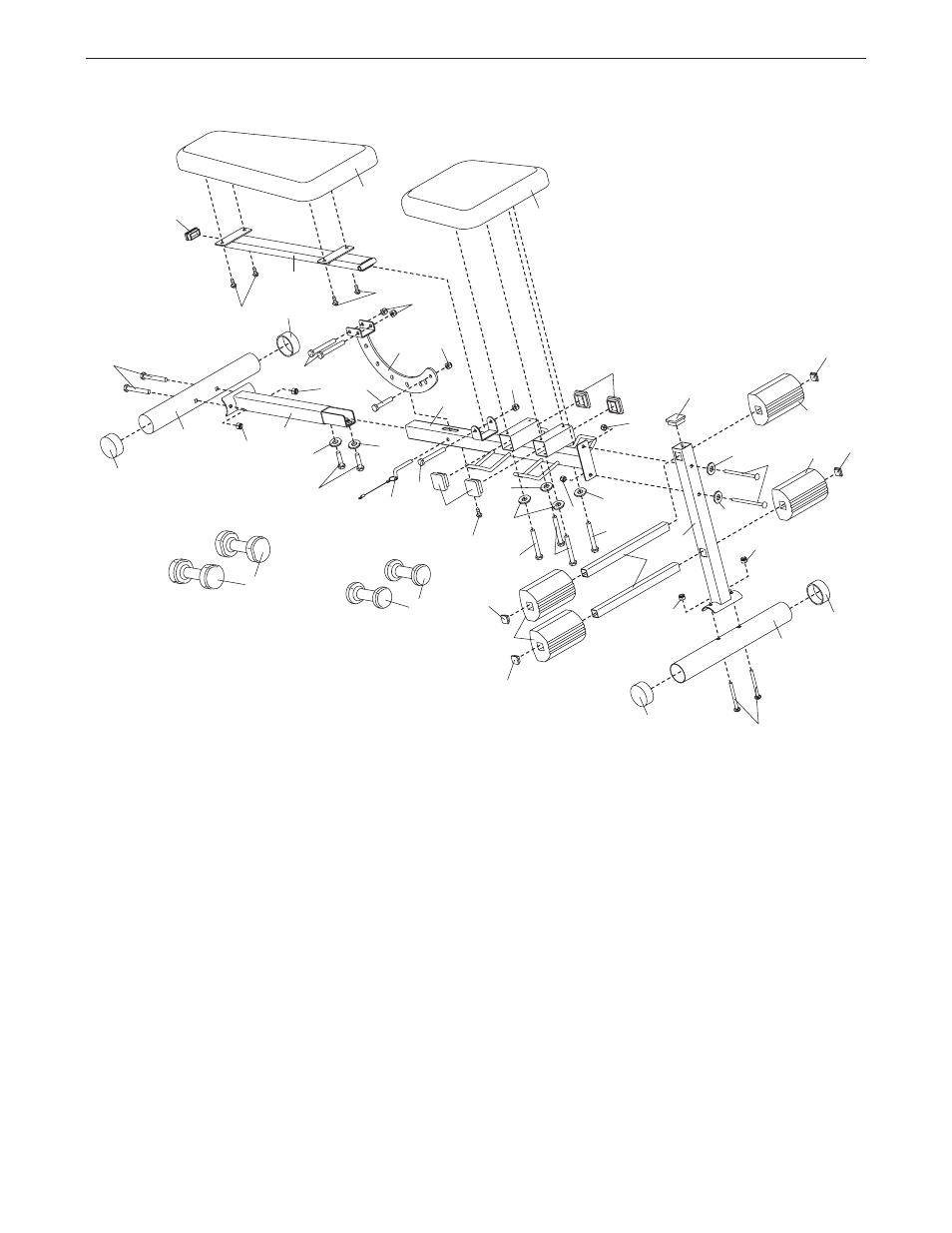

Part list/exploded drawing – Weider Pro 202 831.150260 User Manual
Page 11
1
2
4
29
7
6
8
9
10
9
9
13
13
12
12
12
12
11
11
19
11
14
15
16
17
18
18
19
19
19
19
19
19
20
20
27
27
26
22
22
22
23
24
24
25
19
19
28
25
11
30
31
31
31
3
5
21
11
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of
this manual for information about ordering replacement parts. If a part is missing, call toll-free 1-800-999-3756.
Key No.
Qty.
Description
Key No. Qty. Description
1
1
Frame
2
1
Front Leg
3
1
Rear Leg
4
1
Silver Stabilizer
5
1
Backrest Frame
6
1
Pivot Bracket
7
1
Backrest
8
1
Seat
9
4
Foam Pad
10
2
Pad Tube
11
4
25mm Square Inner Cap
12
4
50mm Round Outer Cap
13
4
50mm Square Inner Cap
14
1
45mm Square Inner Cap
15
1
25mm x 50mm Inner Cap
16
2
5-pound Dumbbell
17
2
3-pound Dumbbell
18
4
M10 x 63mm Carriage Bolt
19
10
M10 Nylon Locknut
20
2
M10 Washer
21
1
Locking Pin
22
4
M6 Washer
23
1
M10 x 85mm Bolt
24
4
M6 x 16mm Bolt
25
3
M10 x 20mm Bolt
26
2
M10 x 70mm Bolt
27
2
M10 Large Washer
28
1
M4 x 16mm Screw
29
1
Black Stabilizer
30
2
M10 x 63mm Bolt
31
4
M6 x 60mm Bolt
# 1
User’s
Manual
#
1
Exercise Guide
#
1
Grease Pack
PART LIST/EXPLODED DRAWING
—Model No. 831.150260
R0703A
