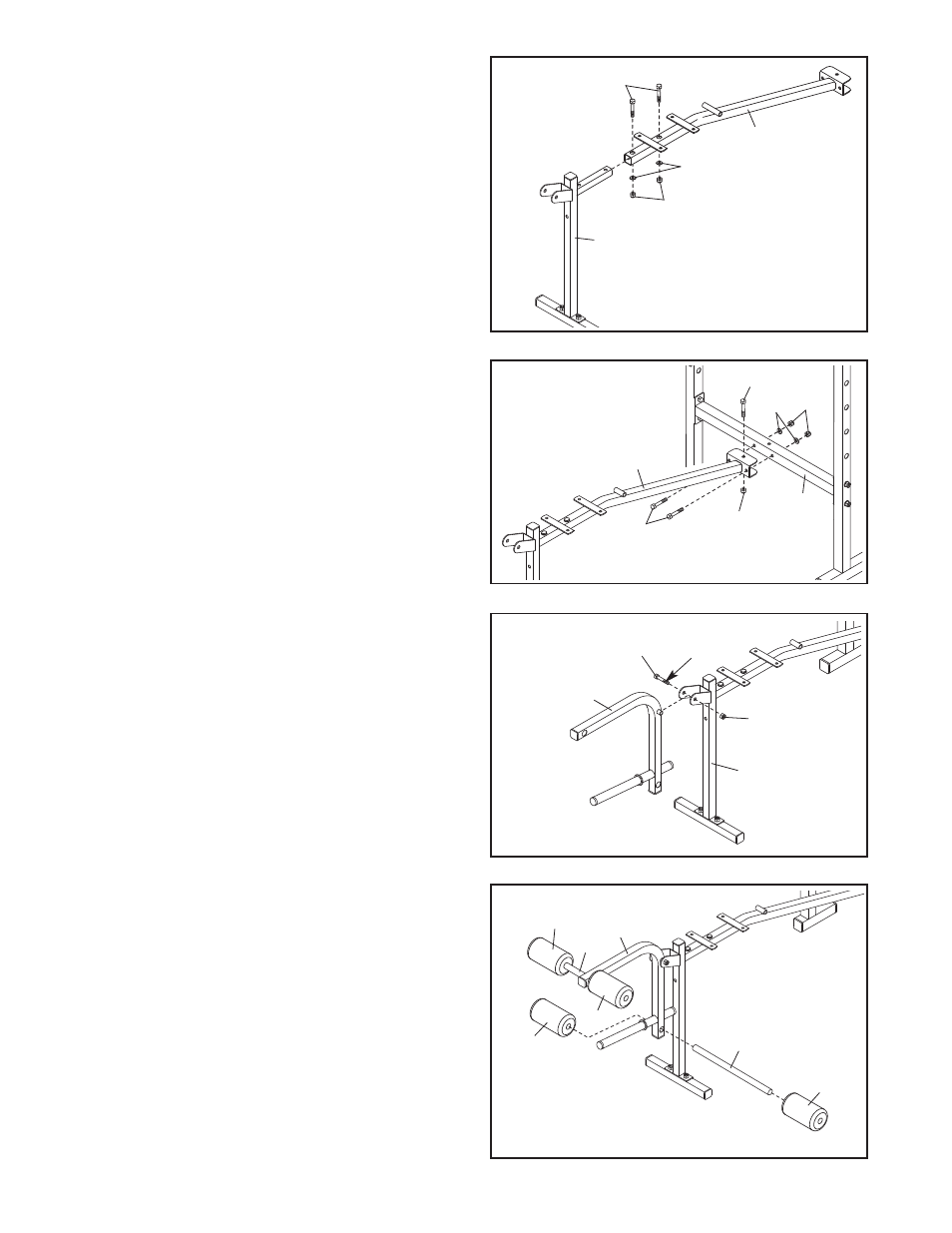

3. Attach the Front Leg (8) to the Frame (2) with two
M8 x 40mm Bolts (39), two M8 Washers (16), and
two M8 Locknuts (17); do not tighten the
Locknuts yet.
4. Attach the Frame (2) to the Crossbar (3) with three
M8 x 55mm Bolts (18), two M8 Washers (16), and
three M8 Locknuts (17); do not tighten the
Locknuts yet.
5. Apply some of the included grease to an M10 x
63mm Bolt (32). Attach the Leg Lever (4) to the
Front Leg (8) with the Bolt and an M10 Locknut
(33). Do not overtighten the Locknut; the Leg
Lever must pivot easily.
3
17
2
39
8
16
4
2
3
17
17
18
18
16
5
33
4
Grease 32
8
7
6. Insert a Long Pad Tube (10) into a hole in the
Leg Lever (4). Slide two Foam Pads (23) onto the
Long Pad Tube.
Attach the other Long Pad Tube (10) and
Foam Pads (23) in the same way.
10
10
4
23
23
23
23
6
