Weider WESY19740 - Manual (Page 15)

15

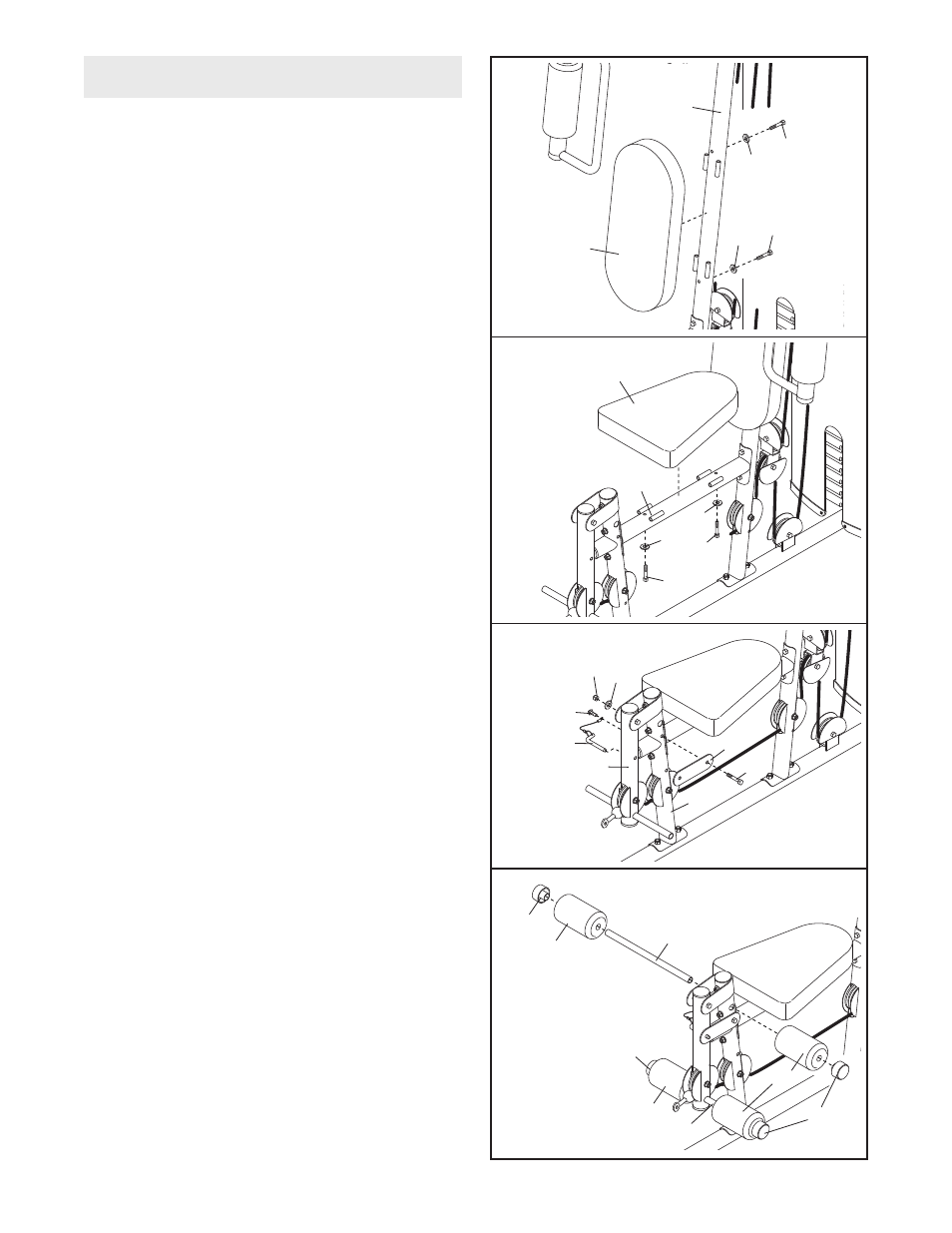

30. Attach the Backrest (16) to the Upright (3) with
two M6 x 63mm Screws (70) and two M6
Washers (82).
32. Attach the Lock Plate (73) to the Front Leg (7)
with an M10 x 70mm Bolt (86), an M10 Washer
(57), and an M10 Nylon Locknut (56).
Do not
overtighten the Locknut; the Lock Plate must
be able to pivot easily.
Attach the Leg Lever Pin (38) to the Front Leg (7)
with an M4 x 20mm Self-tapping Screw (69).
Insert the Leg Lever Pin through the Leg Lever
(8) and the Lock Plate (73).
33. Insert the Pad Tube (29) through the Front Leg
(7). Slide two Small Foam Pads (28) onto the
ends of the Pad Tube. Press two Foam Caps (34)
onto the Pad Tube.
Slide two Small Foam Pads (28) onto the Leg
Lever (8). Press two Foam Caps (34) onto the
Leg Lever.
31. Attach the Seat (15) to the Seat Frame (6) with
two M6 x 63mm Screws (70) and two M6
Washers (82).
30
31
32
33
16
70
70
82
82
3
15
70
82
82
70
6
56
57
69
38 73
86
7
8
29
8
28
34
34
28
34
28
Seat Assembly
