SINGLE DRYER SPECIFICATIONS
MODEL NUMBER CEM2760TQ
▲
CGM2761TQ
•
GENERAL INFORMATION
Stainless Steel Look Push Button console, white enamel drum,
porcelain finish top, powdered paint cabinet, front panel lock
blank factory installed, removable indoor lint filter, improved
meter case, 4-Way Venting
Metercase Model
Accepts the Following
Payment Systems:
Coin Slide
Retrofit Coin Drop
Retrofit Card Reader
OPL
Push-to-Start
Metercase Model
Accepts the Following
Payment Systems:
Coin Slide
Retrofit Coin Drop
Retrofit Card Reader
OPL
Push-to-Start
ELECTRICAL REQUIREMENTS 3-Wire Nominal
240/208-Volt, 60 Hz., A.C.
Standard 30 Amps Breaker/
Fuse Branch Circuit per Dryer
(Subject to Local Codes)
Nominal, 120-Volt, 60 Hz.,
A.C., Standard 15 Amps
Breaker/Fuse Branch
Circuit per Dryer
(Subject to Local Codes)
MOTOR 1 ⁄
3
-HP Single Speed
Motor with Built-In
Overload Protector
5.9 Amps Max Rating
1 ⁄
3
HP Single Speed
Motor with Built-In
Overload Protector
5.9 Amps Max Rating
HEATER TYPE ELECTRIC GAS **
HEATER/BURNER RATING
(Add 500 watts approx for motor on all dryer models)
Heater Rated at 5600 watts
22,000 BTU
Natural Gas
OPERATIONAL AMPERAGE
(Does not include control or gas valve)
Motor — 4.0 Amps
No load
Heater — 23.33 Amps
@ 240-Volt 27.33 Total
Motor — 4.0 Amps
No load
DIMENSIONS 43" H*, 27" W, 28.5" D 43" H*, 27" W, 28.5" D
SHIPPING WEIGHT (EST.) 134 Lbs. 135 Lbs.
DRUM VOLUME 7.4 Cu. Ft. 7.4 Cu. Ft.
EXHAUST INFORMATION
All dryers require the equivalent of a 4-inch
diameter exhaust duct. Rigid metal duct is
recommended. Failure to properly exhaust
the dryer will result in improper operation.
# of 90°
Turns 4" Hood 2 1 ⁄
2
" Hood
Maximum Length of 4" Diameter Rigid
Metal Duct
0 64 Ft. 58 Ft.
1 54 Ft. 48 Ft.
2 44 Ft. 38 Ft.
3 35 Ft. 29 Ft.
4 27 Ft. 21 Ft.
Maximum Length of 4" Diameter Flexible
Metal Duct
0 36 Ft. 28 Ft.
1 31 Ft. 23 Ft.
2 27 Ft. 19 Ft.
3 25 Ft. 17 Ft.
4 23 Ft. 15 Ft.
Dimensions are for planning purposes only.
For complete information, see installation
instructions packed with product.

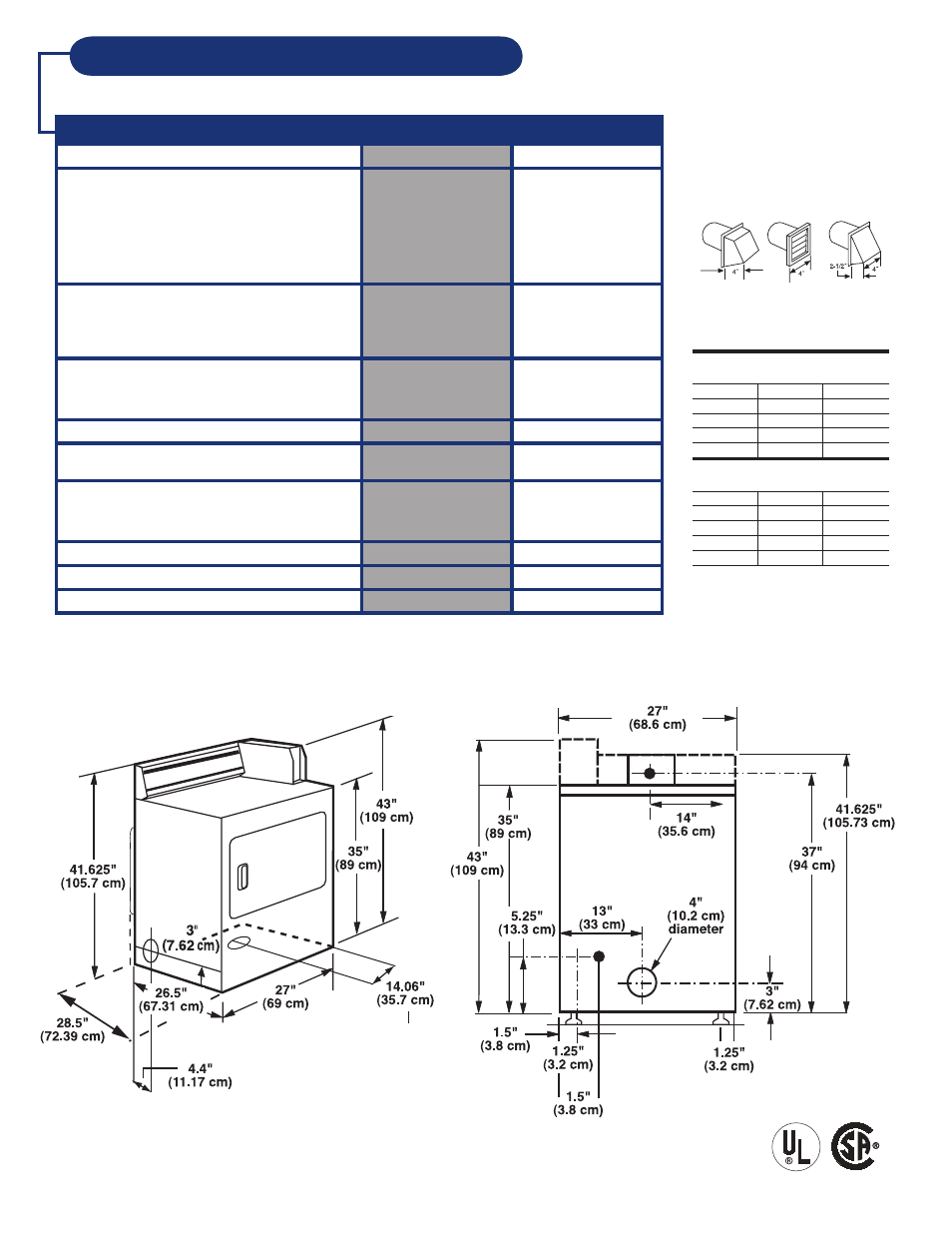

27" & 29" Dryer Venting Requirements
COMMERCIAL DRYER SPECIFICATIONS
