INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
The parts supplied are in the washer basket.
Tools needed for connecting the drain hose and water
inlet hoses:
Parts supplied:
Tools needed for securing the drain hose and leveling
the washer:
Parts supplied:
Alternate Parts
Your installation may require additional parts. For ordering
information, please refer to the toll free phone numbers on the
front page of your “Washer User Instructions.”
■ Pliers that open to 1 ⁹⁄₁₆"
(3.95 cm)
■ Flashlight (optional)

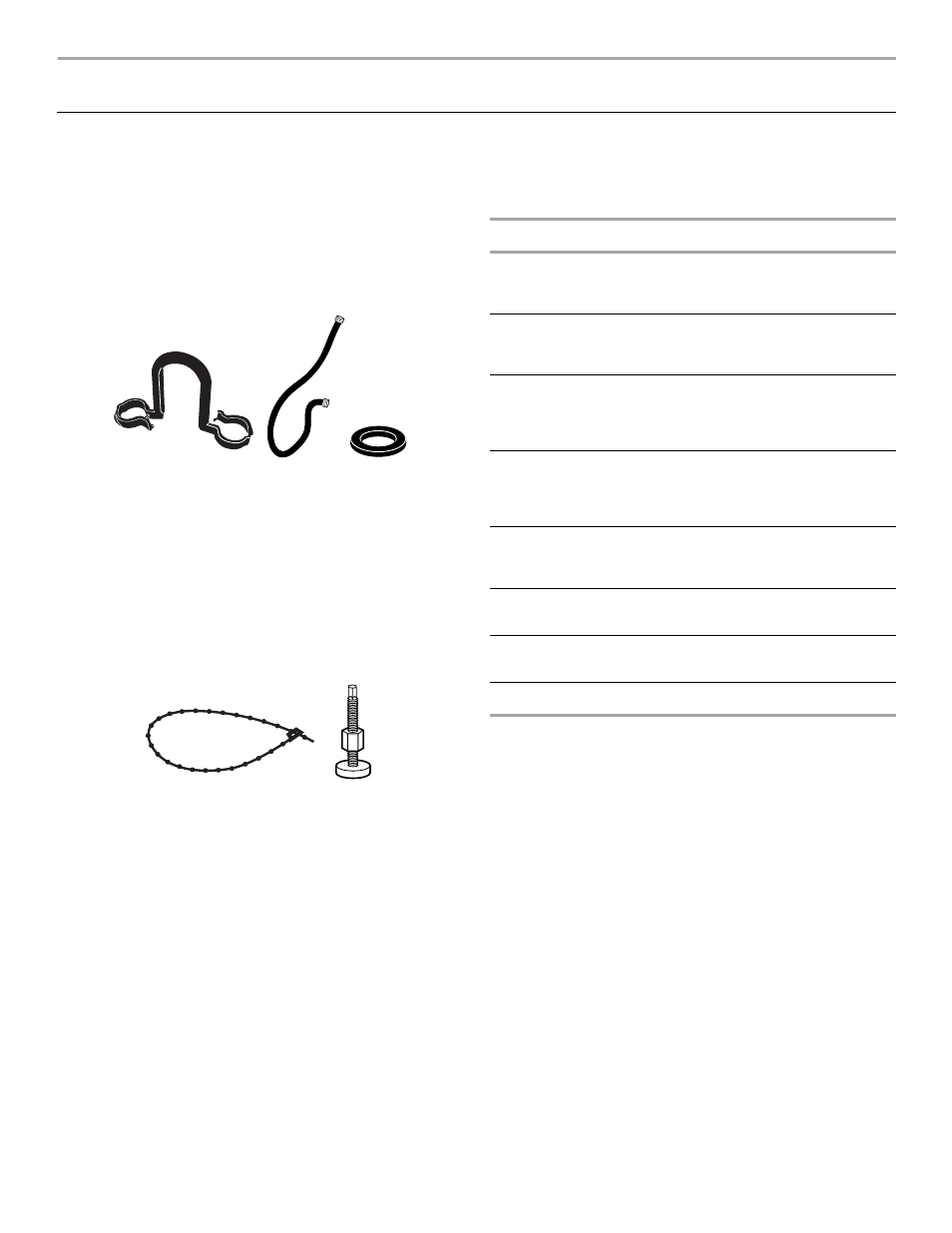

A. Drain hose form
B. Water inlet hoses (2)
C. Flat water inlet hose washers (4)
■ Adjustable or open end
wrench
⁹⁄₁₆" (14 mm)
■ Level
■ Wood block
■ Ruler or measuring tape
A. Beaded tie strap
B. Front leveling feet with nuts (2)
A B C
A B
If You Have: You Will Need to Buy:
Laundry tub or
standpipe taller
than 96" (2.4 m) Sump pump system (if not already
available)
1" (2.5 cm)
diameter
standpipe 2" (5 cm) diameter to 1" (2.5 cm)
diameter standpipe adapter,
Part Number 3363920
Overhead sewer Standard 20 gal. (76 L) 39" (99 cm) tall
drain tub or utility sink, sump pump and
connectors (available from local
plumbing suppliers)
Floor drain Siphon break, Part Number 285320;
additional drain hose,
Part Number 3357090 and connector kit,
Part Number 285442
Water faucets
beyond reach of fill
hoses 2 longer water fill hoses:
6 ft (1.8 m) Part Number 76314,
10 ft (3.0 m) Part Number 350008
Drain hose too
short Drain hose, Part Number 388423 and
hose kit, Part Number 285442
Drain hose that is
too long Hose kit, Part Number 285442
Lint clogged drain Drain protector, Part Number 367031
