27

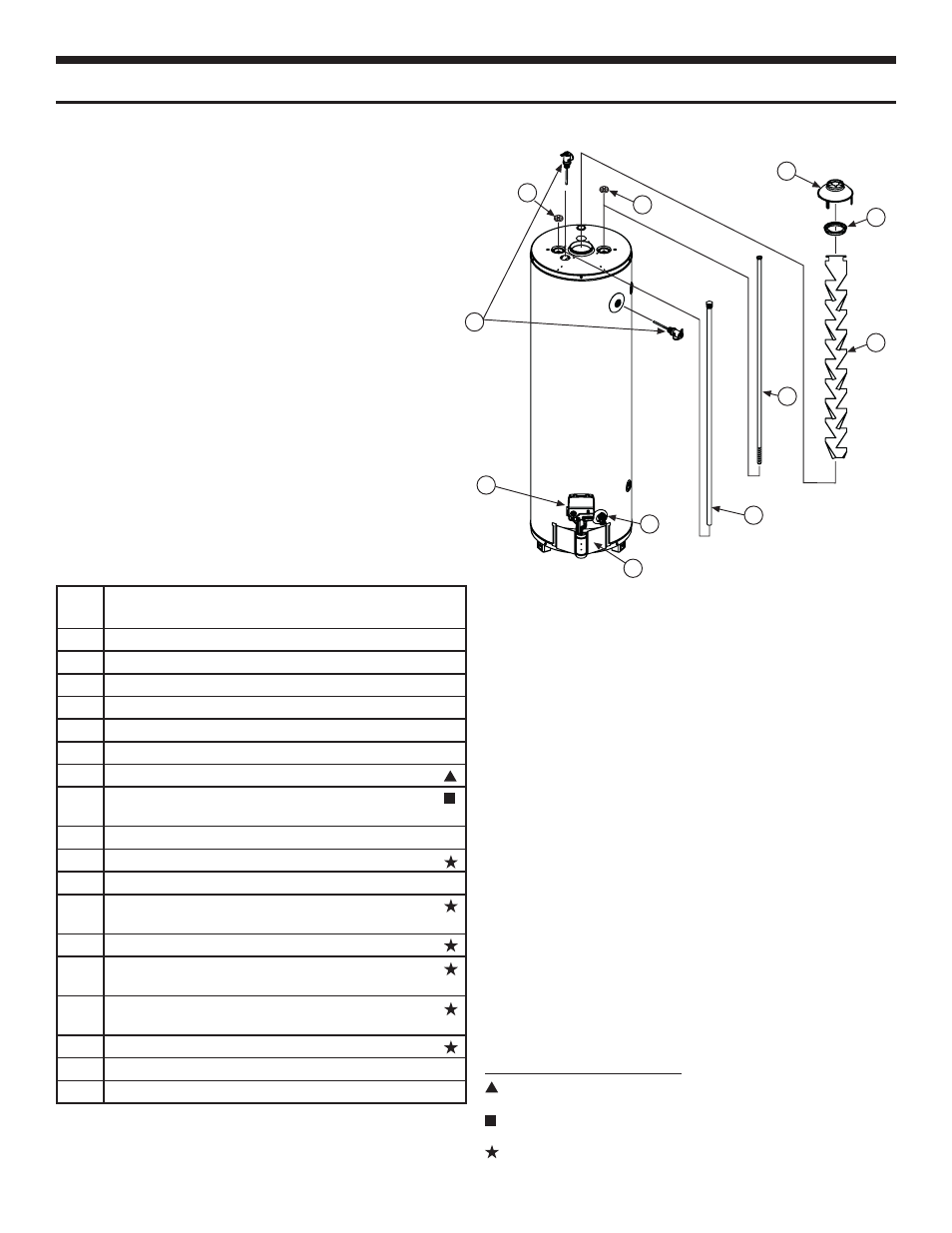

REPAIR PARTS ILLUSTRATION
1
2
3
4
8
5
10
11
9
7
6
Item
No.
Parts Description
1 DRAFTHOOD
2 REDUCER RING - SOME MODELS
3 FLUE BAFFLE
4 HEAT TRAP (COLD) - SOME MODELS
5 HEAT TRAP (HOT) - SOME MODELS
6 COLD WATER DIP TUBE
7 ANODE ROD
8 TEMPERATURE & PRESSURE RELIEF VALVE
(LOCATED TOP OR SIDE)
9 DRAIN VALVE
10 GAS CONTROL VALVE/THERMOSTAT (with wire leads)
11 OUTER DOOR
12* PILOT ASSEMBLY KIT
(Natural Gas)
13 BURNER (Natural Gas/Low Nox)
14* MANIFOLD DOOR ASSEMBLY
(Natural Gas/Low Nox)
15* TWO PIECE WIRE CONNECTOR
WITH RETAINER CLIP
16* MANIFOLD DOOR GASKET
17* VIEWPORT ASSEMBLY
18* THERMISTORS
*Pictured on next page.
When ordering repair parts always give the following
information:
1. Model, serial, and product number
2. Type of gas
3. Item
number
4. Parts description
Repair Parts List
LEGEND
Special anode rod (see page 19)
Temperature and Pressure Relief Valve is required,
but may not be factory installed
Unique: Flame Lock ™ Safety System parts
