Planning Information
New Integrated Induction Cooktop
M O D E L C T 1 5 I / S
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

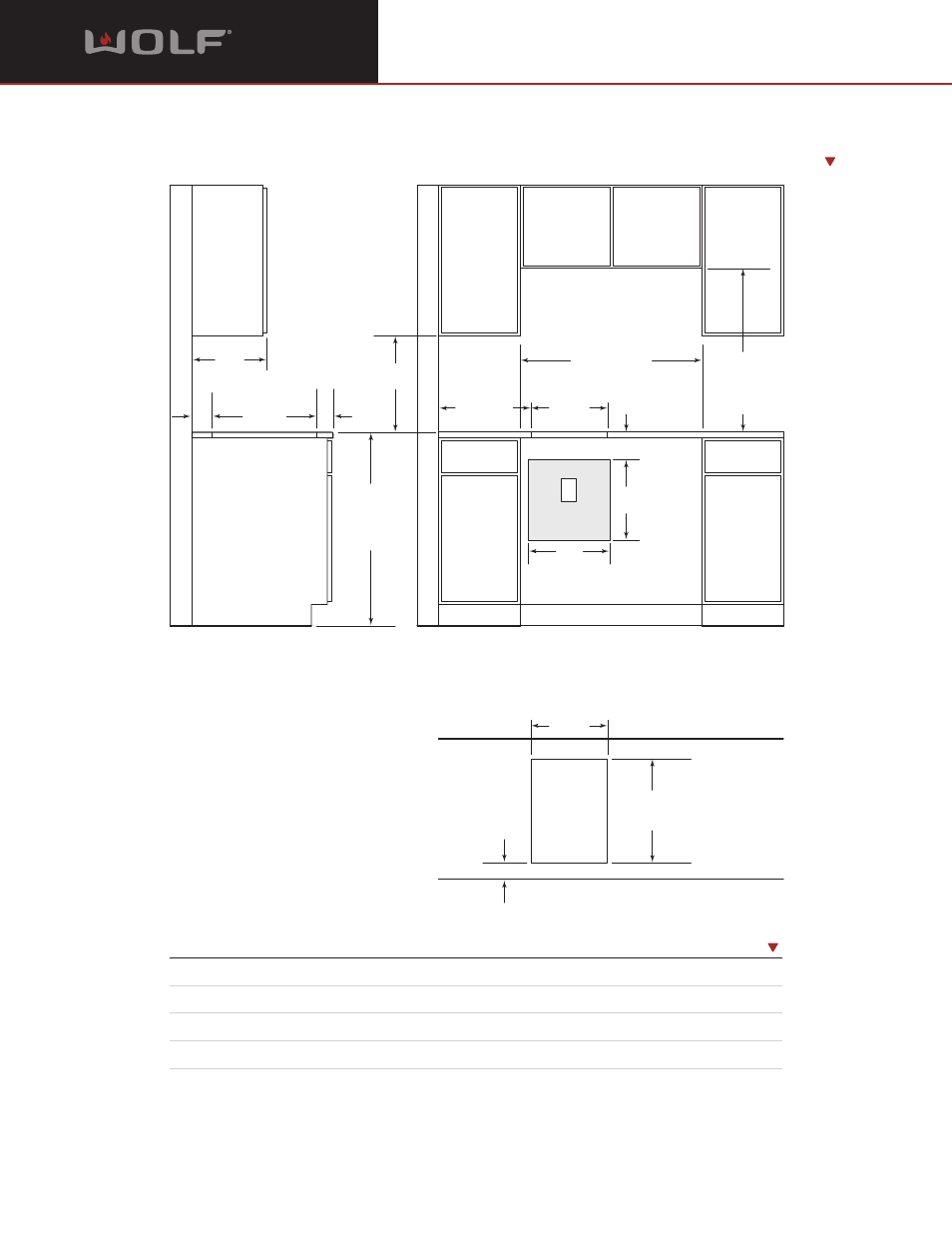

I N S T A L L A T I O N S P E C I F I C A T I O N S
E
4 1 / 2 " (114)
15"
(381)
15"
(381)
2"* min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
13 3 / 8 " (340)
COOKTOP CUT-OUT
WIDTH
13 3 / 8 " (340)
COOKTOP CUT-OUT
WIDTH
33" (838) RECOMMENDED
CABINET WIDTH
18"
(457)
NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457)
recommended cabinet width for installation of single 15" (381) cooktop or module. *Minimum clearance from both side edges of cooktop cut-out
to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up
to 18" (457) above countertop.
19 1 / 4 " (489)
COOKTOP CUT-OUT
DEPTH
2 1 / 2 " min
(64)
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13" max
(330) 30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
FRONT OF COUNTERTOP
2 1 / 2 " min
(64)
19 1 / 4 " (489)
COOKTOP
CUT-OUT DEPTH
2"**
(51)
D I M E N S I O N S
Minimum Cabinet Depth 22 3 / 4 " (578)
Cooktop Cut-Out Width 13 3 / 8 " (340)
Cooktop Cut-Out Depth 19 1 / 4 " (489)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
