Weider WESY26331 - Manual (Page 19)

19

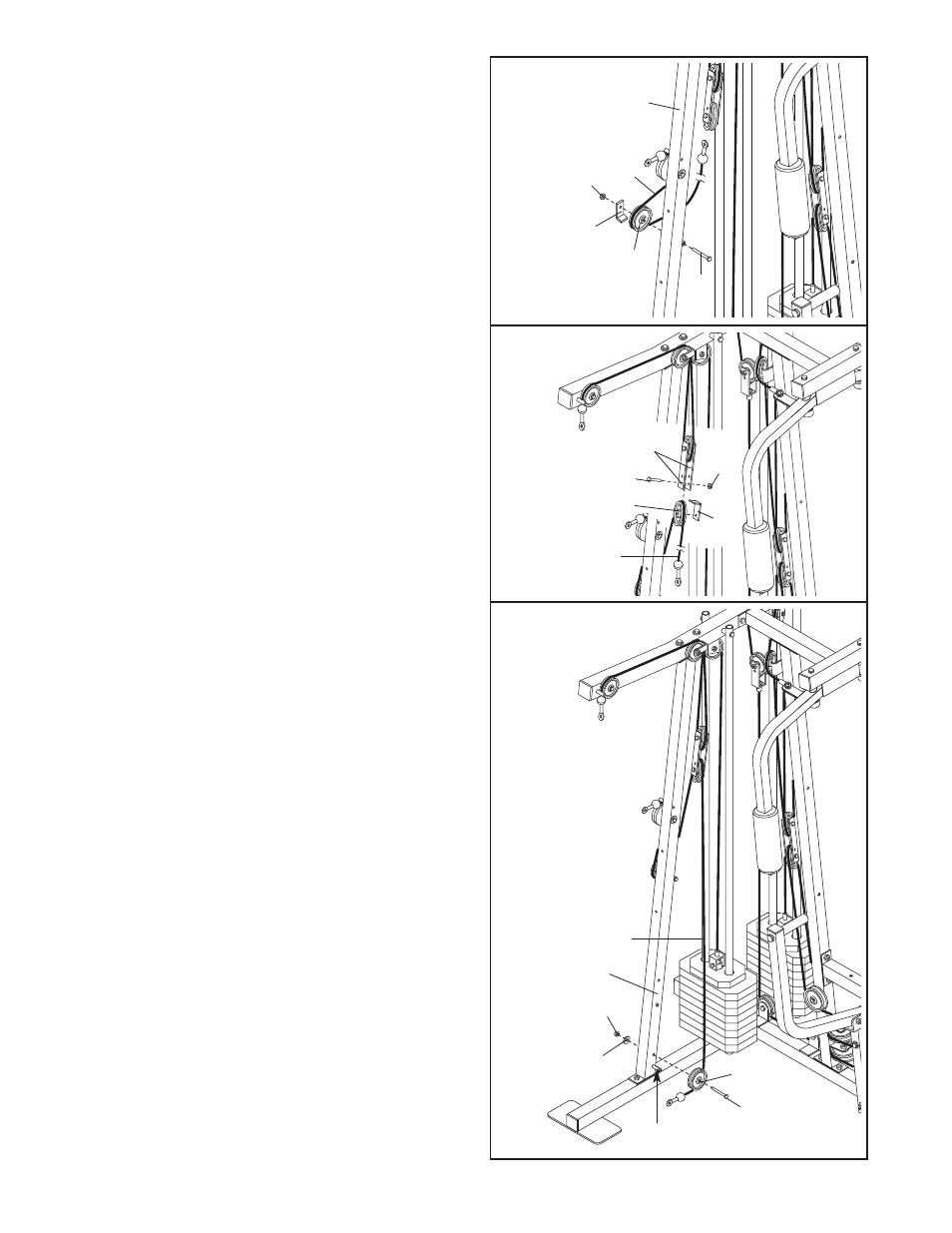

47. Wrap the Low Cable (86) around a 90mm Pulley
(82). Attach the Pulley and a Cable Trap (80) to
the Ab Upright (1) with the M10 x 92mm Bolt (76)
and an M10 Nylon Locknut (42).
Make sure that
the Cable Trap is in the indicated position.
48. Wrap the Low Cable (86) over a 90mm Pulley
(82). Attach the Pulley and a Cable Trap (80) to
the
lowest hole in the set of Pulley Plates (31)
with an M10 x 48mm Bolt (50) and an M10 Nylon
Locknut (42).
Make sure that the Cable Trap is
turned to hold the Cable in place.
49. Wrap the Low Cable (86) under a 90mm Pulley
(82). Attach the Pulley to the Ab Upright (1) with
the M10 x 92mm Bolt (76), an M10 Washer (38),
and an M10 Nylon Locknut (42).
The ball on the
Cable must be on the indicated side of the
Pulley. Make sure that the Cable and Pulley
move smoothly and that the Cable is between
the Pulley and the post.
47
48
49
42
31
42
82
80
50
80
82
86
76
1
42
38
82
76
Post
86
1
86
