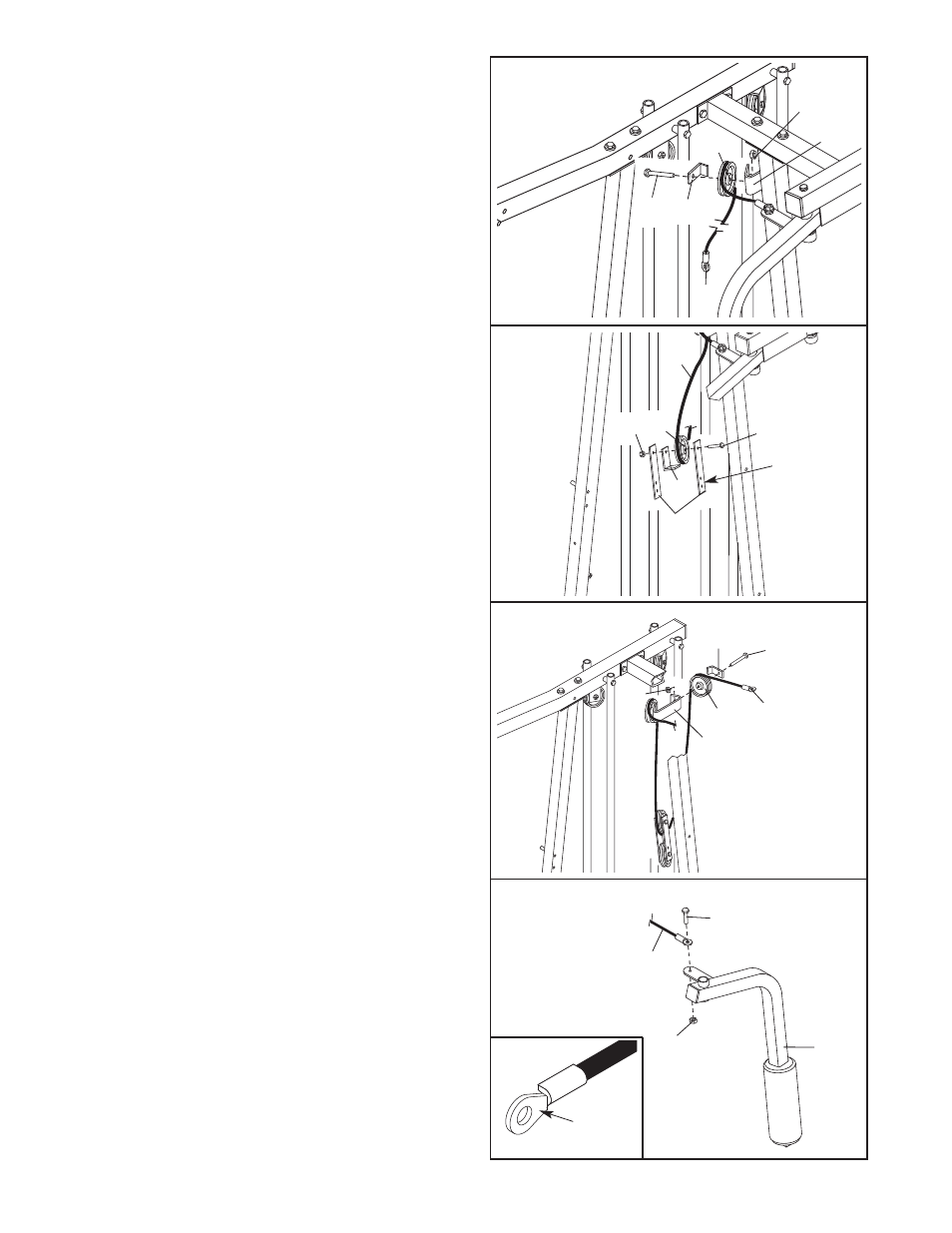

20. Wrap the Butterfly Cable (89) around a 90mm
Pulley (82) as shown. Attach the Pulley and a
Cable Trap (80) to the bracket on the Leg Press
Upright (4) with an M10 x 48mm Bolt (50) and an
M10 Nylon Locknut (42).
The Cable Trap must
be oriented to hold the Cable in the groove of
the Pulley.
21. Wrap the Butterfly Cable (89) under a 90mm
Pulley (82). Attach the Pulley and a Cable Trap
(80) between the single hole ends of two Pulley
Plates (31) with an M10 x 48mm Bolt (50) and the
M10 Nylon Locknut (42).
Make sure that the
Cable Trap is positioned to hold the Cable in
place.
22. Wrap the Butterfly Cable (89) over a 90mm Pulley
(82) as shown. Attach the Pulley and a Cable
Trap (80) to the other side of the bracket on the
Leg Press Upright (4) with an M10 x 48mm Bolt
(50) and an M10 Nylon Locknut (42).
The Cable
Trap must be oriented to hold the Cable in the
groove of the Pulley.
23. Note: The Left Fly Arm (6) is shown removed
for easier part identification.
Attach the Butterfly Cable (89) to the Left Fly Arm
(6) with an M8 x 22mm Shoulder Bolt (51) and an
M8 Nylon Locknut (40).
Make sure the flat edge
of the Cable is against the Fly Arm.
23
20
21
22
6
End with
two holes
should be
down
82
80
42
31
4
89
82
50 80
4
42
89
82
50
80
89
50
40
51
89
42
Flat
Edge
