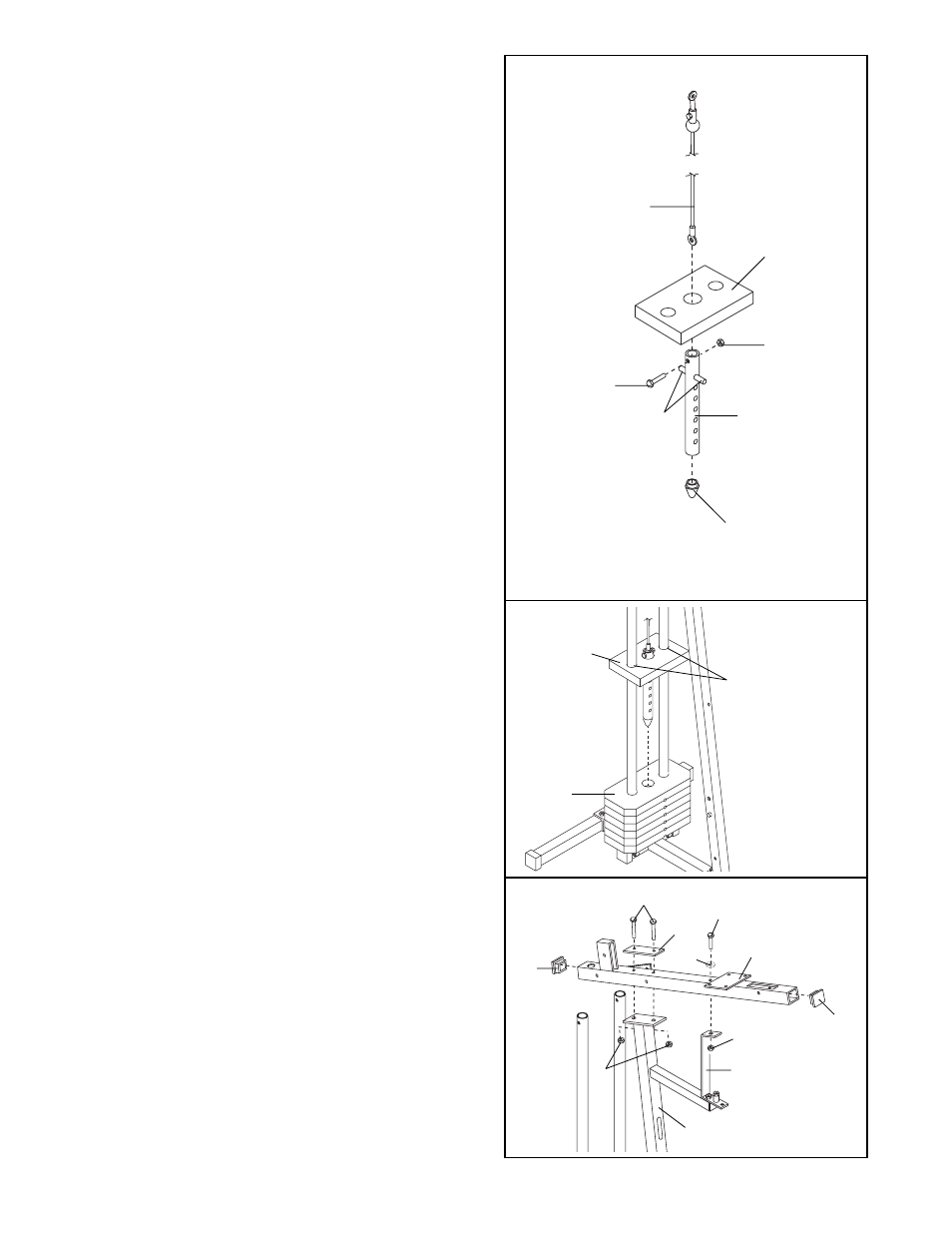

5. Press the Weight Tube Bumper (79) into the end of
the Weight Tube (80). Slide the Top Weight (77)
onto the Weight Tube. Be sure that the pins on the
Weight Tube are resting in the pin grooves under
the Top Weight.
Locate the Short Cable (23). Attach the Short
Cable to the Weight Tube (80) with a 5/16Ó x 1 1/2Ó
Bolt (24) and a 5/16Ó Nylon Locknut (3).
6. Lubricate the insides of the holes in the Top Weight
(77). Slide the Top Weight onto the stack of
Weights (25).
7. Press two 2Ó Square Inner Caps (27) into the Top
Frame (67).
Attach the Top Frame (67) to the Front Upright (42)
with two 5/16Ó x 2 3/4Ó Bolts (11), the Support Plate
(6), and two 5/16Ó Nylon Locknuts (3). Do not tight-
en the Nylon Locknuts yet.
Attach the Top Frame (67) to the Stop Bracket (63)
with a 5/16Ó x 2 3/4Ó Bolt (11), 5/16Ó Flat Washer
(8), and 5/16Ó Nylon Locknut (3). Do not tighten
the Nylon Locknut yet.
