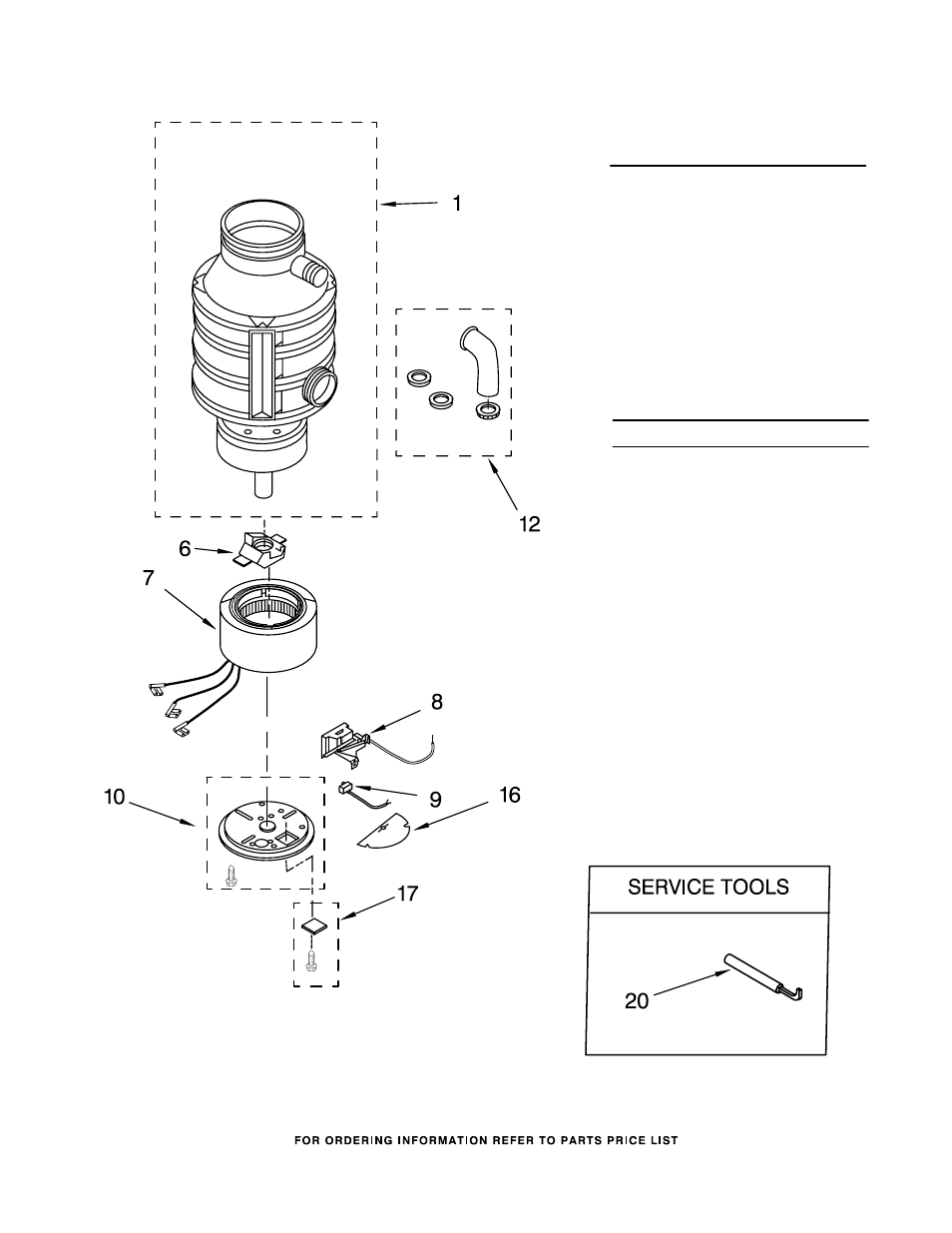

LOWER HOUSING AND MOTOR PARTS
2
For Model: GC5000XE2
8174351
Illus. Part
No. No. DESCRIPTION
1
Enclosure Assy
(Not Serviceable)
6
4211322 Actuator Assembly,
Centrifugal
7
8174337 Stator Assembly
8
8174312 Switch Assembly,
Start
9
8174347 Overload,
Protector
10
8174345 End Frame Assembly
12
8174355 Kit, Installation
16
4211326 Shield, Wire
17
8174315 Cover, Terminal
20
8174310 Wrench, Emergency
Following Parts Not Illustrated
8174356 Guide,
Use And Care
