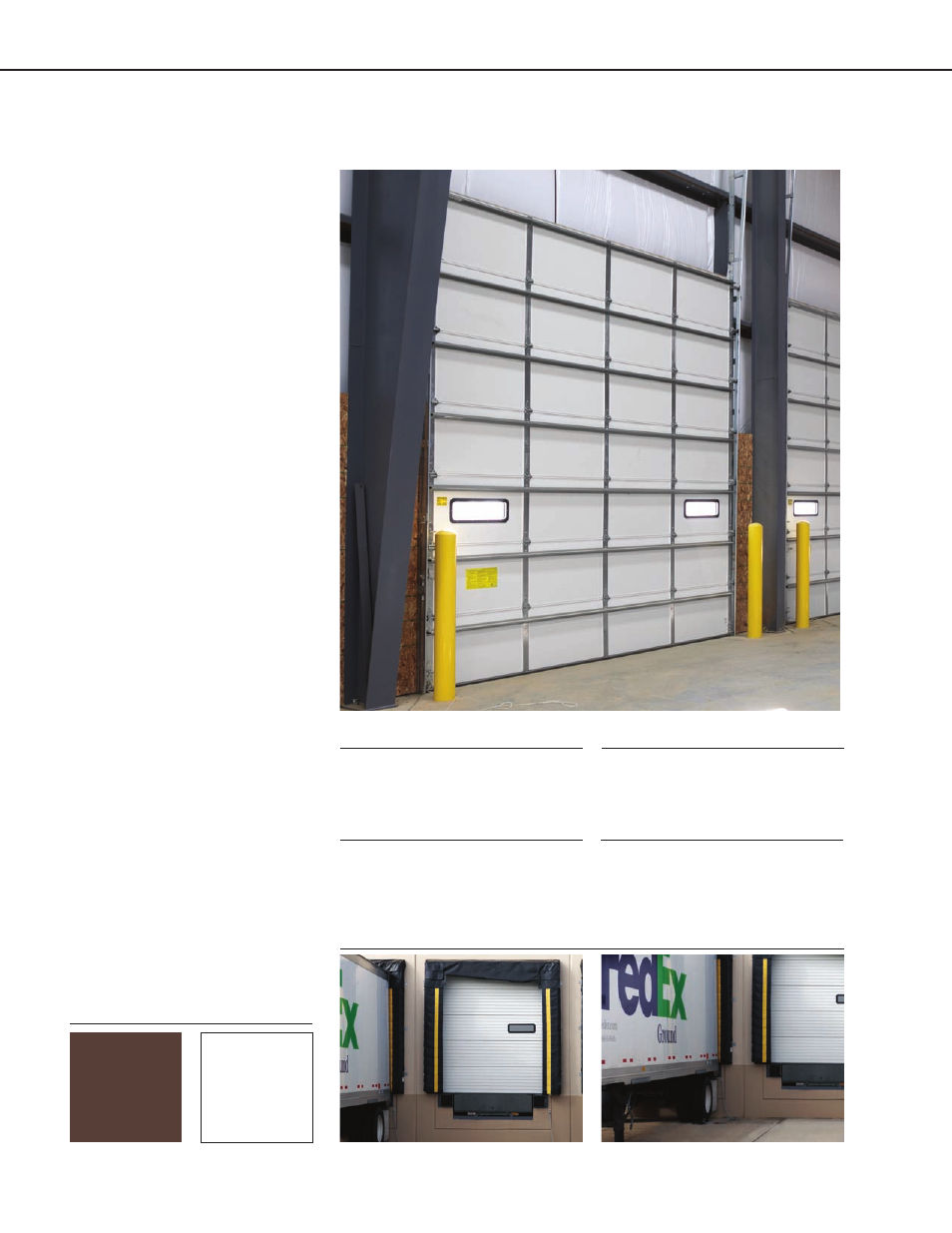

The Wayne-Dalton 2415 Steel Sectional Door
features heavy-duty 16-gauge vertical interior
end stiles and 20-gauge center stiles for
increased strength. The “C”-shaped stiles,
secured with No. 8 screws and adhesive, have
prelocated, extruded holes for quick, secure
mounting of hinges. The 2415 offers a ribbed
exterior skin that also helps to increase strength
while enhancing the building’s visual appearance.
End stiles wrap around the exterior of each
section to protect the section face from wear
caused by the door jambs.
Materials & Construction
Wayne-Dalton’s 2415 features true 24-gauge
ribbed steel sections with 16-gauge vertical end
stiles and 20-gauge center stiles attached to the
interior. The exterior ribbing consists of two
deep and two shallow ribs in each section,
making it ideal for moderate use. The bottom
section features a vinyl bulb-shaped astragal,
held by a roll-formed, hot-dipped galvanized
steel retainer.
Additional options include top head seal, joint
seals and jamb seals. Optional insulation,
consisting of 1 9 /
16
" expanded polystyrene or
urethane and covered with .015" minimum
embossed pre-painted white steel provides an
R-value of up to 7.64 and a U-value as low
as 0.13. Lite options include insulated or
non-insulated factory-installed vision lites or
complete aluminum full-view sections for maxi-
mum visibility. Operators can also be specified
for use with the Wayne-Dalton 2415.
Contact Wayne-Dalton for additional sizes and
colors.
Vision Lites allow for visibility while
maintaining security
Aluminum full view sections allow for maximum
natural light and visibility
Window Options
• Chain Hoist Operation
• Motor Operation
Operation Options
White Smooth Finish Brown Smooth Finish
Color Options
• Broken Cable Devices
• Safety Edges
• Safety Photo Eyes
Safety Options
• High Cycle Spring (25K,50K,100K)
• 3"Track Option
• Solid Shafts
• PerimeterWeatherseal
Performance Options
• SpecialTrack Designs
• Mullions
Special Application Options
