66
Maintenance Instructions REPLACING/REPAIRING/
ADJUSTMENTS
Reinstall the blades following procedure from Sharp-
en Mower Blades instructions. If blades are re-
placed, always use Walker original equipment
blades to ensure safety and optimum performance.
The quality and performance of replacement blades
offered by other manufacturers cannot be guar-
anteed, they could be dangerous.
ADJUSTMENTS

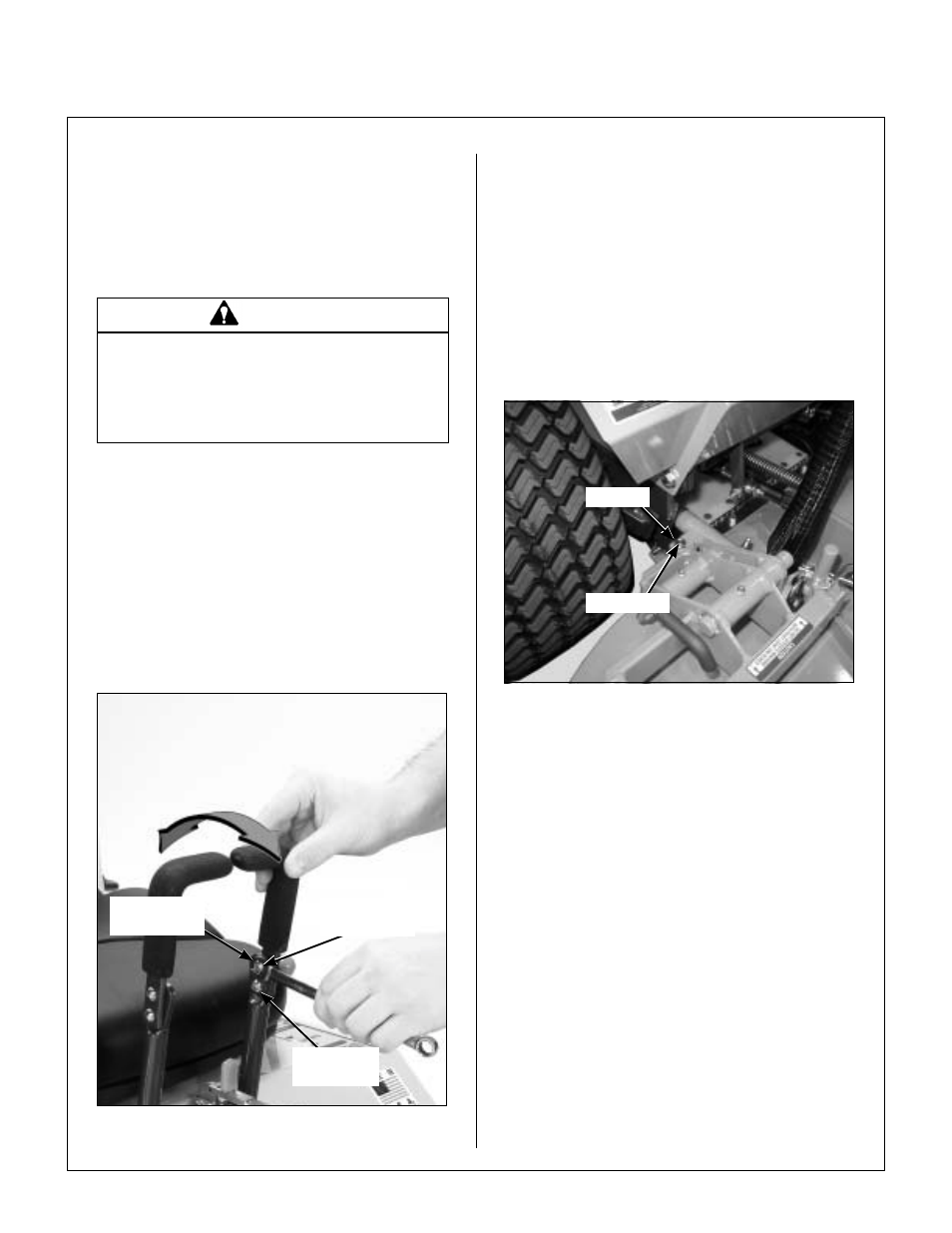

Steering Levers
An adjustment range of approximately 3 inches is
available on the steering levers - the levers can be
adjusted forward or aft depending on the arm length
of the operator. The levers can be adjusted by loos-
ening the locknut at the pivot point and the locknut
holding the lever in position in the adjustment slide.
Adjust levers into most comfortable position and
tighten both locknuts.
Steering Lever Adjustment
Tilt-Up Deck Adjustable Stop
When the carrier frame hinge joint is properly adjust-
ed, the deck lock levers should move in and out of the
engaged and disengaged positions freely. All four
hitch pins used for height adjustment should sit flush
on the washers above the deck pin bushing. On a
level surface, if any pin is sticking up (likely the front
pins), tighten the opposite side or loosen the same
side to lower the pin. Adjustments are made by loos-
ening the jam nut and tightening or loosening the set
screws on the Deck Mount Pivot Brackets. Retighten
the jam nut when the adjustment is complete.
Tilt-Up Deck Adjustable Stop
CAUTION
ALWAYS use genuine factory replacement
parts. Substitute parts CAN result in prod-
uct malfunction and possible injury to the
operator.
Locknut
(Position)
Adjustment
Slide
Locknut
(Pivot Point)
Set Screw
Jam Nut
