Walker MC (18 HP) - Manual (Page 13)

Component Identification
9
LH Hydrostatic
Transmission
RH Hydrostatic
Transmission
GHS Blower
Muffler Heat Shield
RH Transmission
Lockout Lever
PTO Gearbox
Dipstick
Precleaner
Tube
Fuel Pump
Air Cleaner
Cover
Air Restriction
Indicator
(Not Visible)
Air Intake
Hose
Fuel Tank Cap
Jackshaft
Turbine
Precleaner
Muffler
Oil Fill/
Dipstick
Throttle and
Choke Linkage
Neutral Safety
Switch
LH Transmission
Lockout Lever
Battery
Negative (-)
Battery Cable
PTO
Clutch Lever
Rubber Bumper
(Body Support)
Donaldson
Air Cleaner
Rubber Bumper
(Body Support)
30 Amp
Circuit Breaker
Positive (+)
Battery Cable

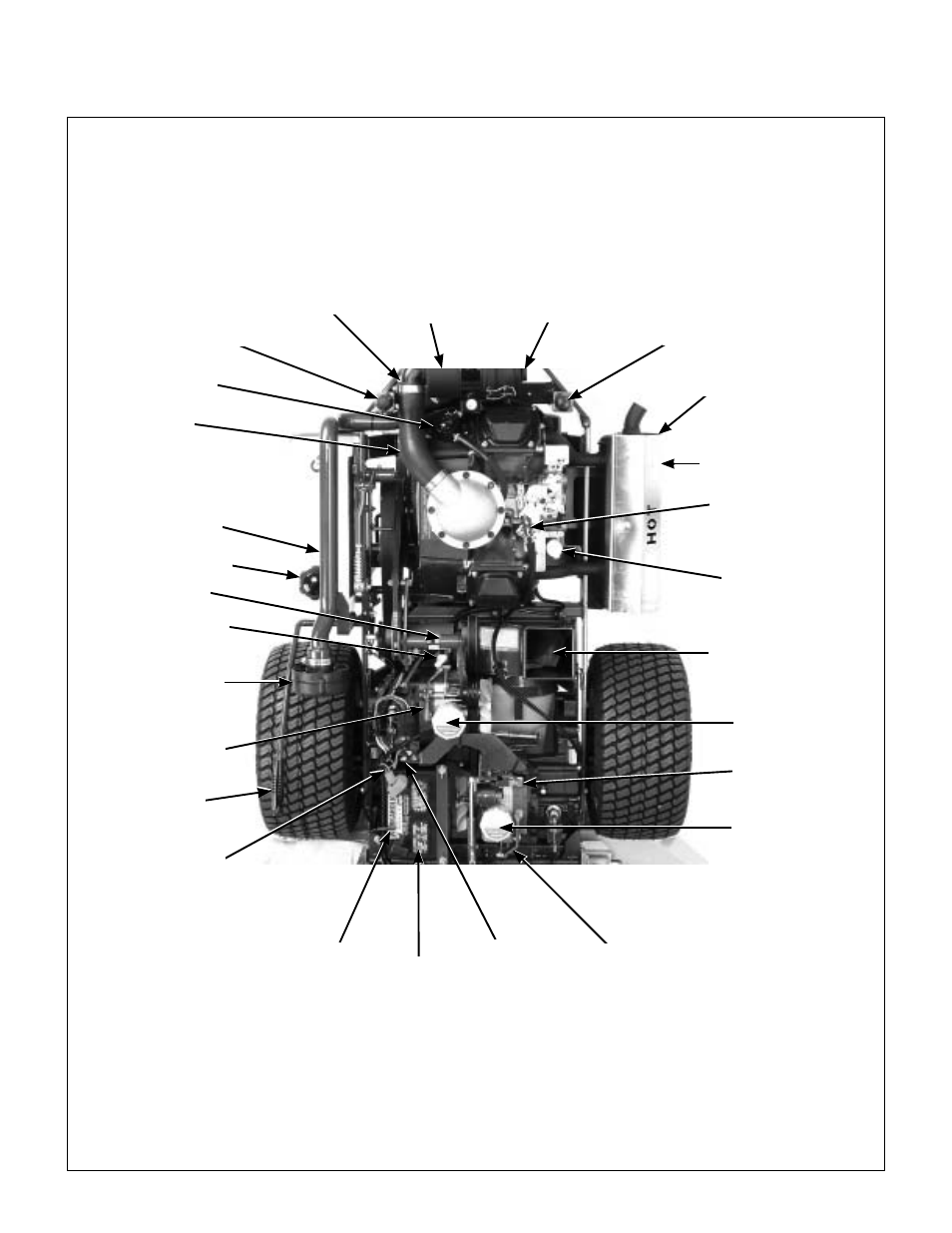

Top View (Engine Compartment)
