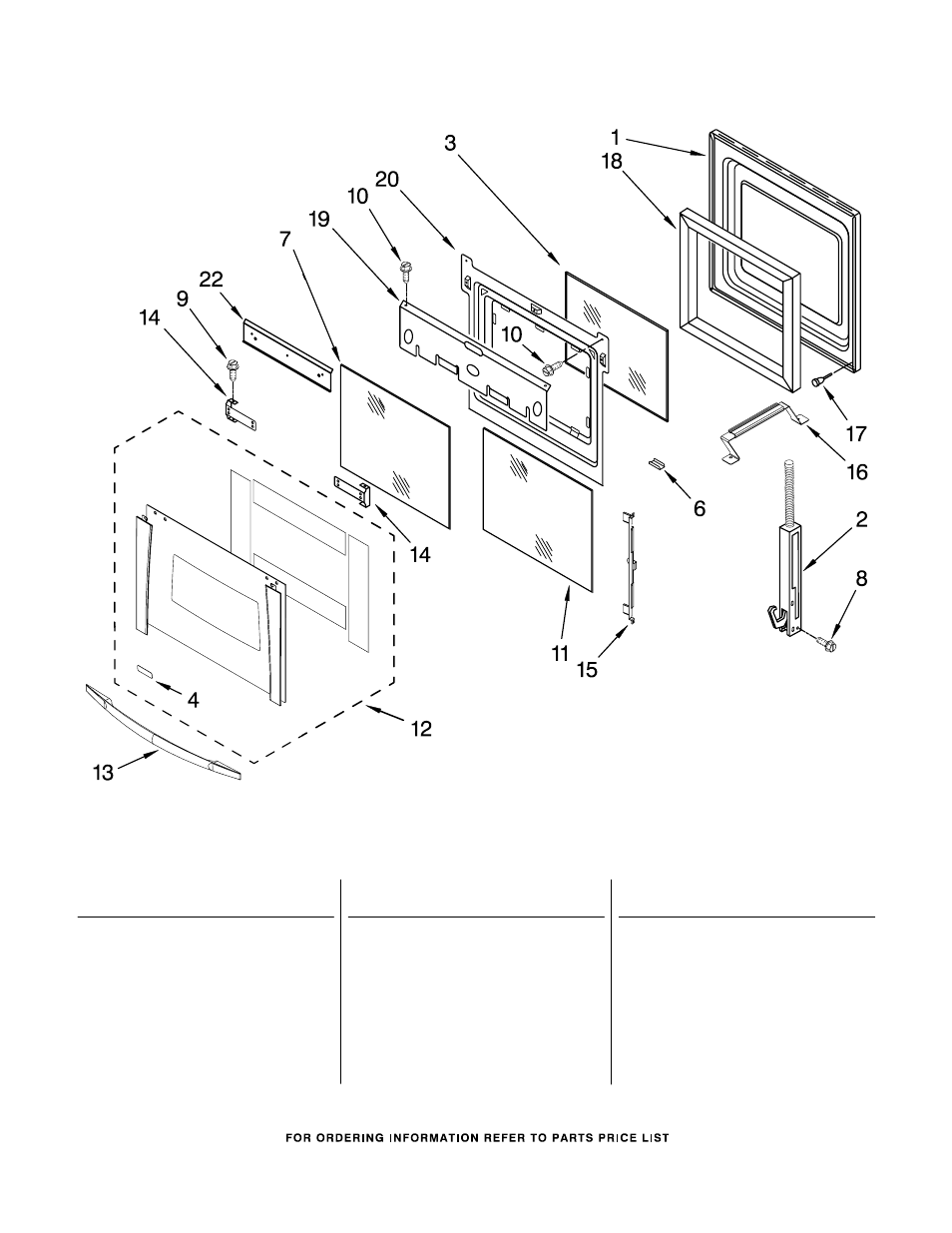

OVEN DOOR PARTS
5
For Models:RBD275PRS01
(Stainless)
W10162394
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
8303699 Panel, Door
2
Hinge, Door
9760565 Right
9760566 Left
3
9759224 Glass, Inner Door
4
8303811 Nameplate
6
4451432 Retainer, Glass
Clip
7
4449253 Glass, Inner Door
8
4449743 Screw
9
4451040 Screw
10
4449809 Screw
11
9759228 Glass, Inner Door
12
Assembly, Door
Glass
W10151082 Upper
8303313 Lower
13
8302810 Door Handle
14 W10136472 Bracket, Handle
15
9759229 Bracket(2nd Glass)
16
9759230 Bracket(3rd Glass)
17
4448520 Bumper, Door
18
4451721 Insulation, Door
19
4457102 Shield, Heat
Upper
20
4457131 Retainer, Glass
22
4457113 Shield, Heat
Lower
