Step 21
Install the lid
You will need: lid, two hinge pins and two hair pin cotters.
Set the lid in place. Align the hinges at the rear of the
barbecue. Insert hinge pins from the outside. Insert hair
pin cotters into the small holes in the hinge pins.

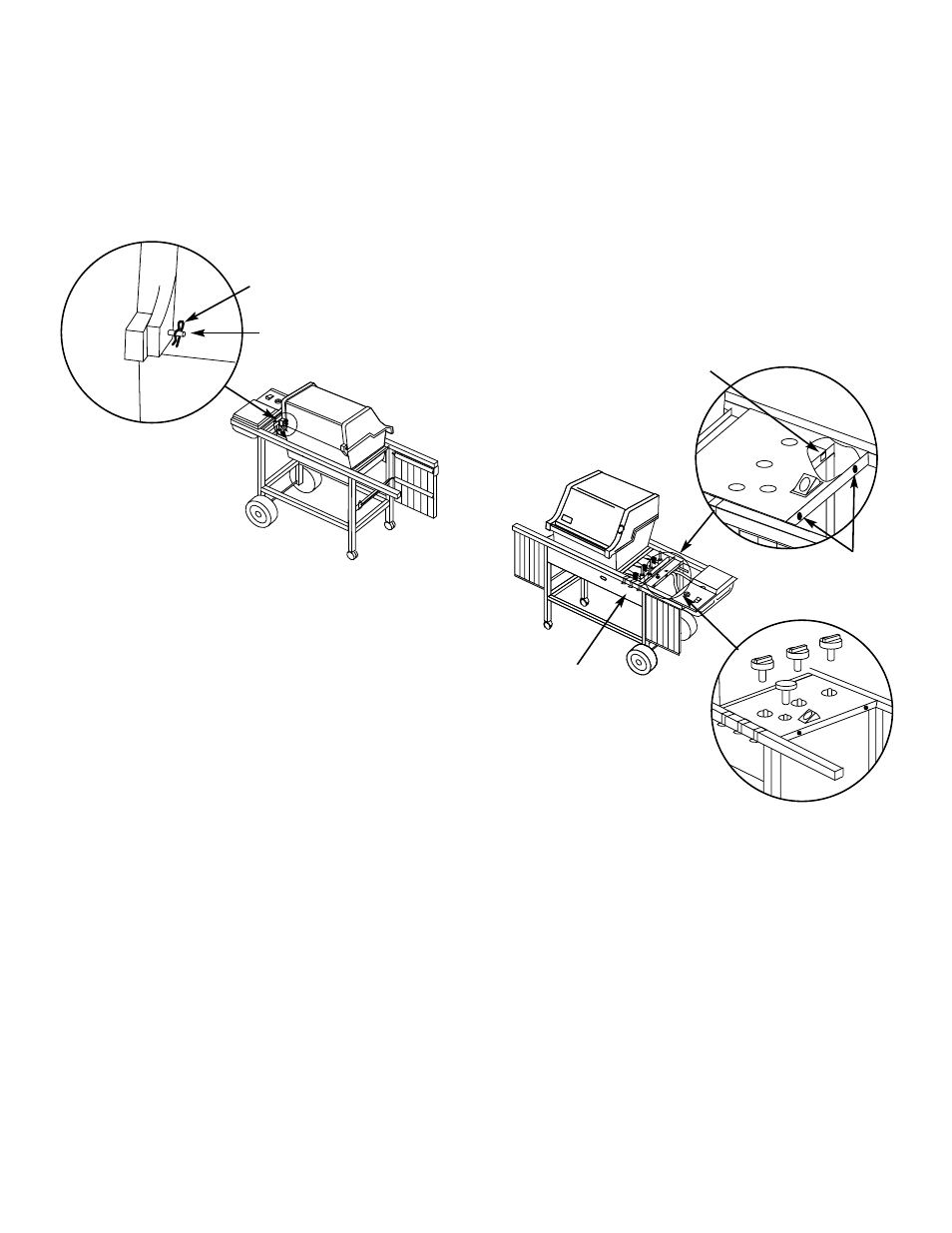

Figure 35.
Figure 35
Hair pin cotter
Hinge pin
Step 22
Install tool holders, control panel, burner control
knobs and FlameCheck button
You will need: three tool holders, control panel, three
burner control knobs and FlameCheck button.
Hook the tool holders over the frame rail. Figure 36.
Set the control panel in place over both frame braces.
(Hold the Crossover Ignition button up while setting the
control panel in place.) Place your thumbs over the
control panel push-in buttons and push them into the
frame brace until they snap into place. Figure 36 (a).
Push on the burner control knobs and FlameCheck
button. Figure 36 (b).
Figure 36
Hole in frame brace
Tool holders
(a)
(b)
Control panel
push-in buttons
