3
1 Cable entry plate
1 large yellow spade connector
2 small red spade connectors
All required screws and washers
1 base with electronics, dish, dual LNBF
1 tube silicone
1. Open box and remove packing material.
2. Lift unit out of box vertically. Do not turn box and
“roll” out, or turn upside down to remove.
!
USE 2 PEOPLE
when removing the unit
from the carton.
Parts Included • Tools Needed • How to Unpack
If using knife to open
carton, BE CAREFUL.
Do not cut the dome on
the unit.
About this manual —
We hope this manual will provide clear instructions to install and operate the MV-0500.
Two symbols have been used —
!
Indicates caution should be taken! Indicates suggestions to make
processes easier for you.
PARTS INCLUDED:
1 Radome
3 base mounting feet
1 Power switch
2 Wall plates (white & brown)
1 Surface mount bracket
2 Cable clamps

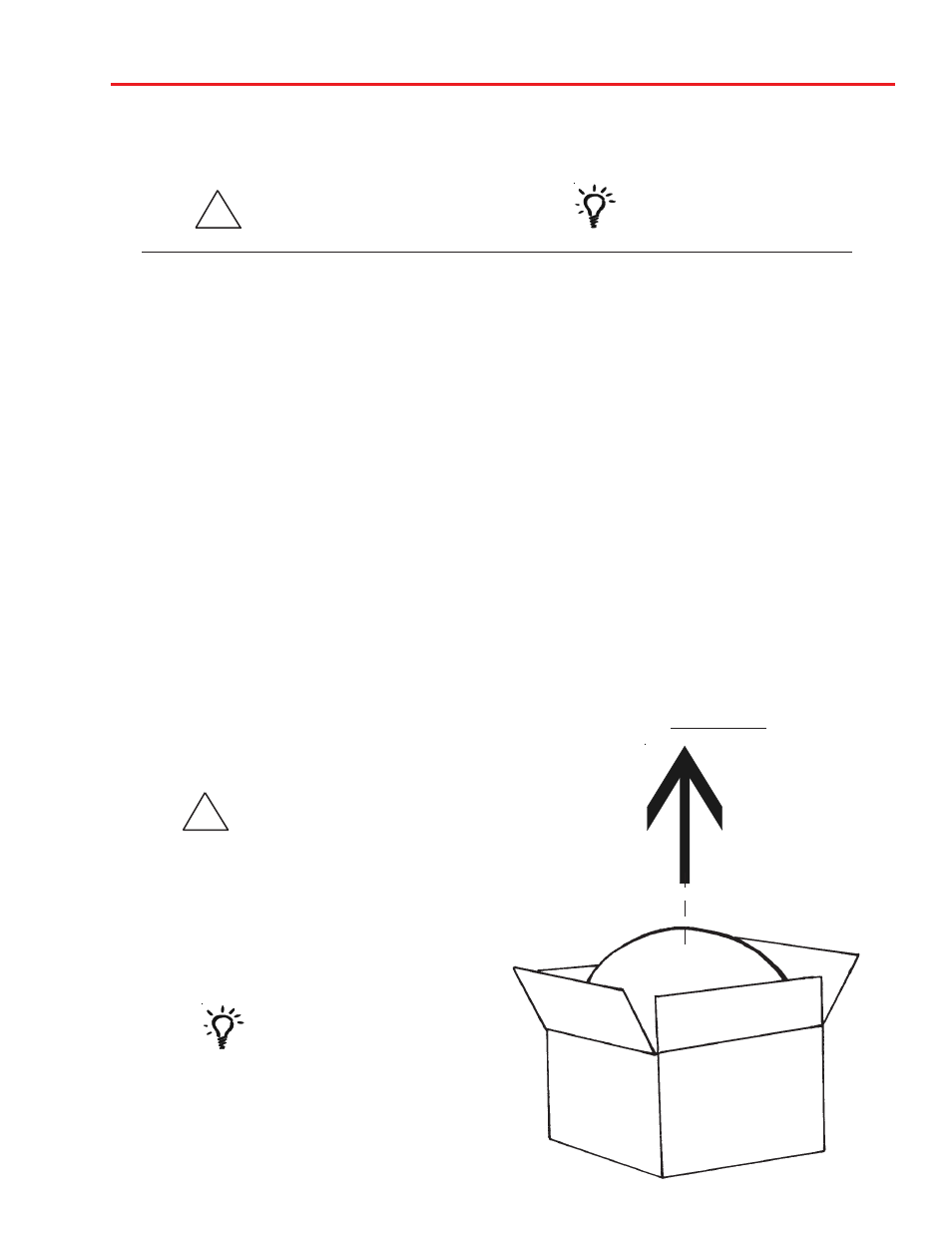

LIFT UNIT STRAIGHT UP
TOOLS NEEDED FOR UNPACKING & INSTALLATION:
UNPACKING THE UNIT
7/16” open end wrench
Level
Drill w/3/4” bit
1-1/4” hole saw (if mounting switch in wall)
5/16” Socket for roof screws
1/8” Allen wrench 1/2” Open end wrench
Crimping tool for coax connections
Crimping tool for electrical connections
Small blade screw driver
Pliers
Sealant (consult RV manufacturer for proper type for
your roof material)
