J) To reinstall the manifold assembly, reverse steps G through I .
m Caution: the burner openings (7) must be positioned
properly over the valve orifices (8). make sure the opposite
end of the burner tubes (9) properly align into the slots on
the backside of the cookbox. Check proper assembly before
fastening manifold in place.
m warninG: after reinstalling the gas lines, they should be
leak checked with a soap and water solution before using
the grill. (see “CheCK for Gas leaKs”)
◆
mAINTENANcE
3
1
1
2
2
side burner Grate
side burner Cap
side burner ring & head
igniter electrode
Control Knob
igniter

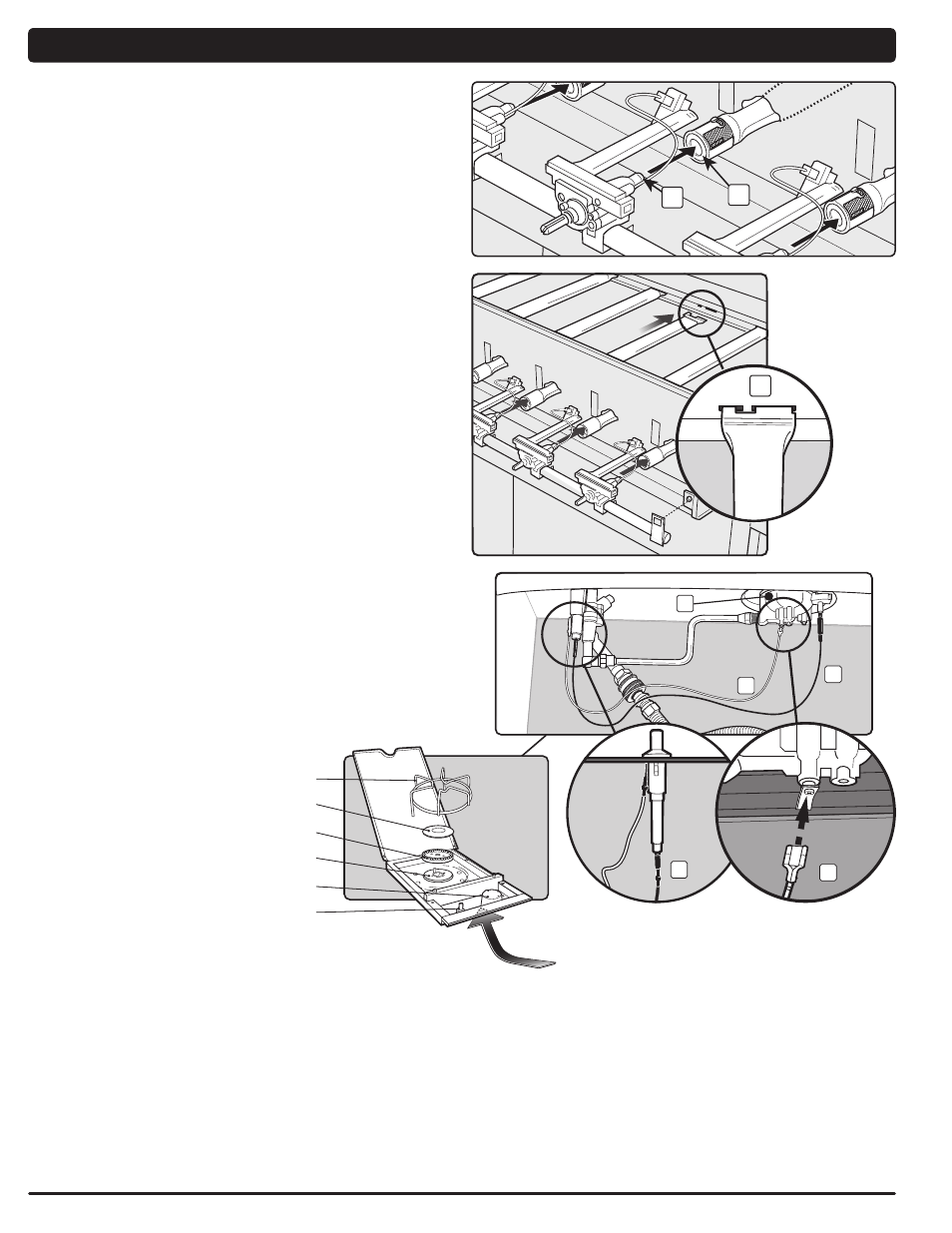

side burner maintenanCe
m warninG: all gas controls and supply valves should be in
the off position.
Make sure black wire is connected between the igniter and electrode .
Make sure white wire is connected between the igniter and grounding clip .
Spark should be a white/blue color, not yellow .
A) Igniter wire (1)
B) Ground wire (2)
C) Burner (3) ◆
1 2
7 8
3 9
