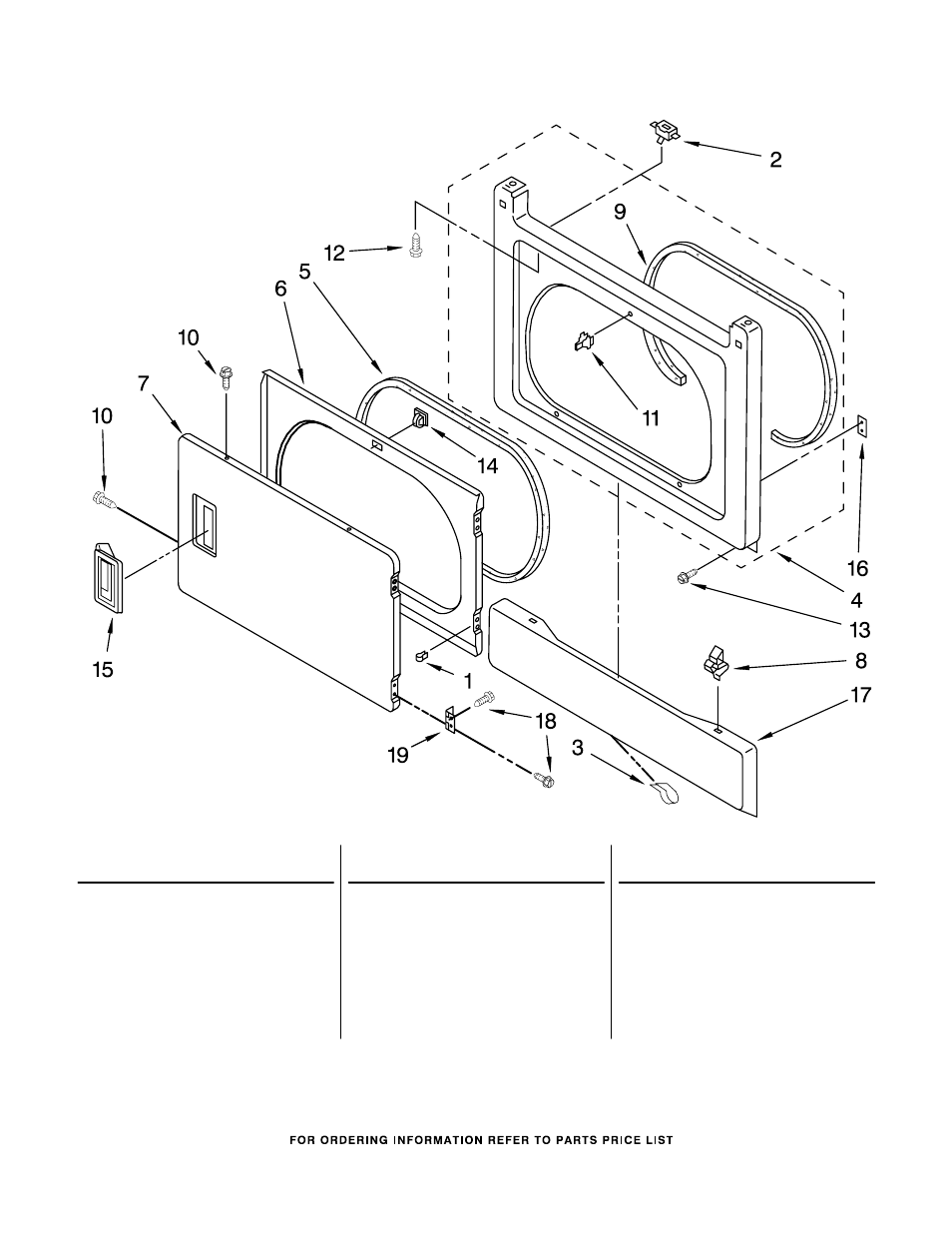

DRYER FRONT PANEL AND DOOR PARTS
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 3389249 Nut, Push (4)
2 3391901 Switch, Door
3 98234 Clip, Ground
4 3392547 Panel, Front
5 3390735 Seal, Door
6 3392563 Door, Rear
7 3387872 Door, Front
8 3388229 Retainer, Toe
Panel (2)
9 3387242 Bearing & Seal
10 694091 Screw, 8−18 x 3/8
11 696144 Strike, Panel
12 697773 Screw, Door
Switch
Mounting (2)
13 3393008 Screw, 10−16 x 1/2
14 3392538 Catch, Door
15 W10095180 Handle, Door
16
3390902 Clip, Door
Hinge (2)
17 3388958 Panel, Toe
18 342055 Screw, 8−18 x 1/2
19 3389247 Hinge & Pin,
Door (2)
