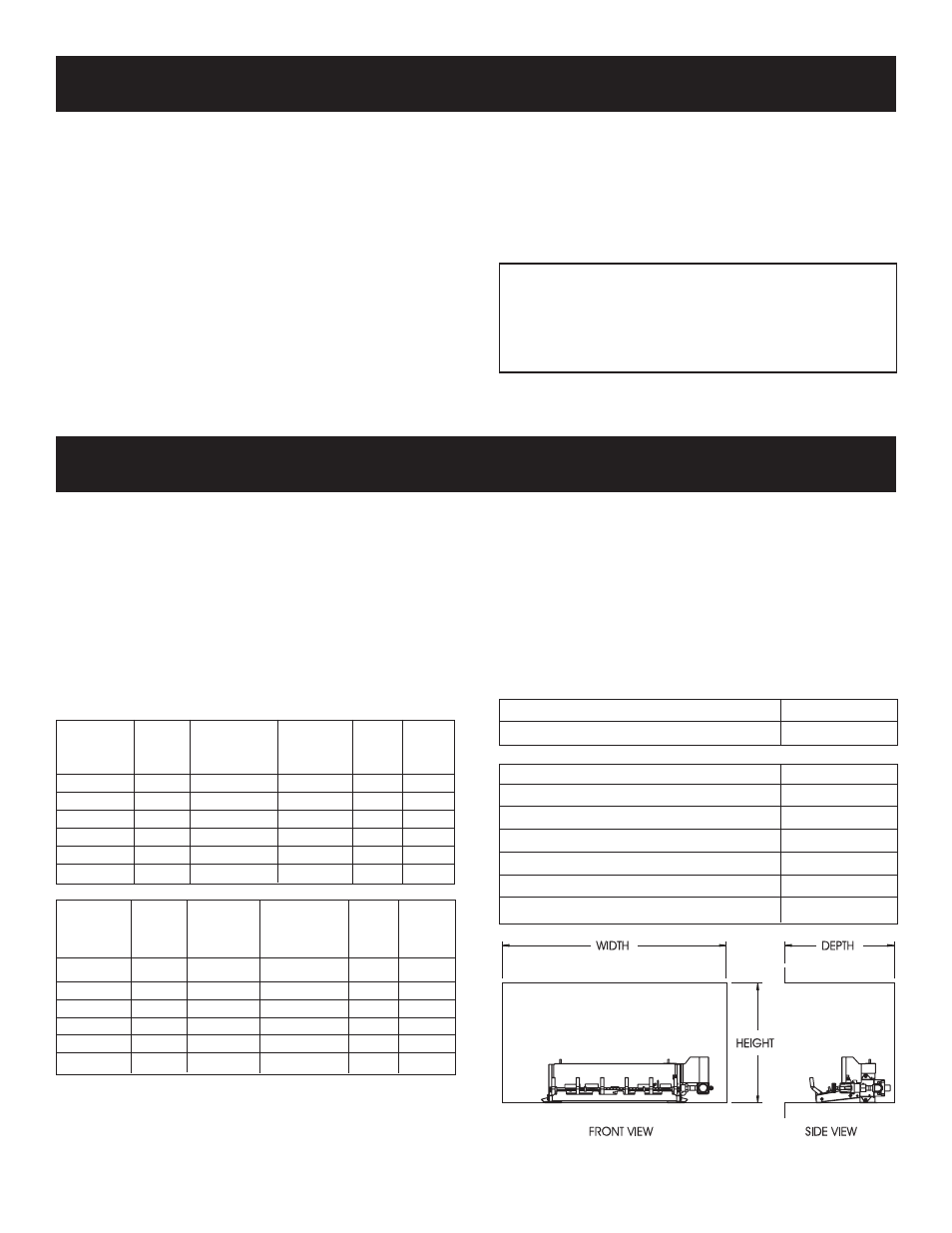

Specifications (Figure 1)
Input ** Reduced Minimum Depth Height
Model Btuh Input Front
BTUH Width
VSM-18* 65,000 40,000 32" 15" 22"
VSM-24* 75,000 50,000 34" 15" 22"
VSM-30* 75,000 60,000 38" 15" 22"
VSR-18† 65,000 40,000 28" 15" 22"
VSR-24† 75,000 50,000 30" 15" 22"
VSR-30† 75,000 60,000 34" 15" 22"
Input **Reduced Minimum Depth Height
Model KW/H Input Front (cm) (cm)
BTUH Width (cm)
VSM-18* 19.0 11.7 81.3 38.1 55.8
VSM-24* 21.9 14.6 86.4 38.1 55.8
VSM-30* 21.9 17.5 96.5 38.1 55.8
VSR-18† 19.0 11.7 71.1 38.1 55.8
VSR-24† 21.9 14.6 76.2 38.1 55.8
VSR-30† 21.9 17.5 86.4 38.1 55.8
* M Denotes manual gas valve
† R Denotes millivolt gas valve
** Attention: An additional main burner orifice is provided in
instruction package envelope to reduce the input of the
burner assembly.
INTRODUCTION
Gas Inlet VSM Models 3/8" (9.5mm)
Gas Inlet VSR Models 3/8" (9.5mm)
Accessories for VSM and VSR Models
Embers Kit
EK-1
Accessories for VSR Models
Battery Operated Remote Control
FRBC
Electric Remote FREC
Wall Switch FWS
Figure 1
Product Components
• Burner Pan Assembly
— "M" model includes manual gas valve, regulator and
safety pilot.
— "R" model includes millivolt valve and safety thermopile
generator and on/off switch. A remote control or wall
switch accessory is available as an option for this model.
• 1 Bag of Glowing Embers (Rock Wool)
• 1 Damper Clamp
• 2 Bags Decorative Rock
Always consult your local Building Department regarding regula-
tions, codes or ordinances which apply to the installation of a
vented decorative gas log set in a solid-fuel burning fireplace.
This appliance is only for use with the type of gas indicated on the
rating plate.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner fill out and mail warranty card
supplied with the fireplace.
3. Installer should show owner how to start and operate the
fireplace.
WARNING: ANY CHANGE TO THIS APPLIANCE OR
ITS CONTROLS CAN BE DANGEROUS.
Improper installation or use of the appliance can cause
serious injury or death from fire, burns, explosion or
carbon monoxide poisoning.
GENERAL INFORMATION
This series is design certified in accordance with American National Standard/CSA Standard Z21.60 and CGA 2.26, respectively, by the
Canadian Standards Association as a Vented Decorative Appliance and should be installed according to these instructions.
Any alteration of the original design, installed other than as shown in these instructions or use with a type of gas not shown on the
rating plate is the responsibility of the person and company making the change.
Important
All correspondence should refer to complete Model Number, Serial Number and type of gas.
Notice: During initial use of the logs and branches you will detect an odor as the logs and branches are cured.
