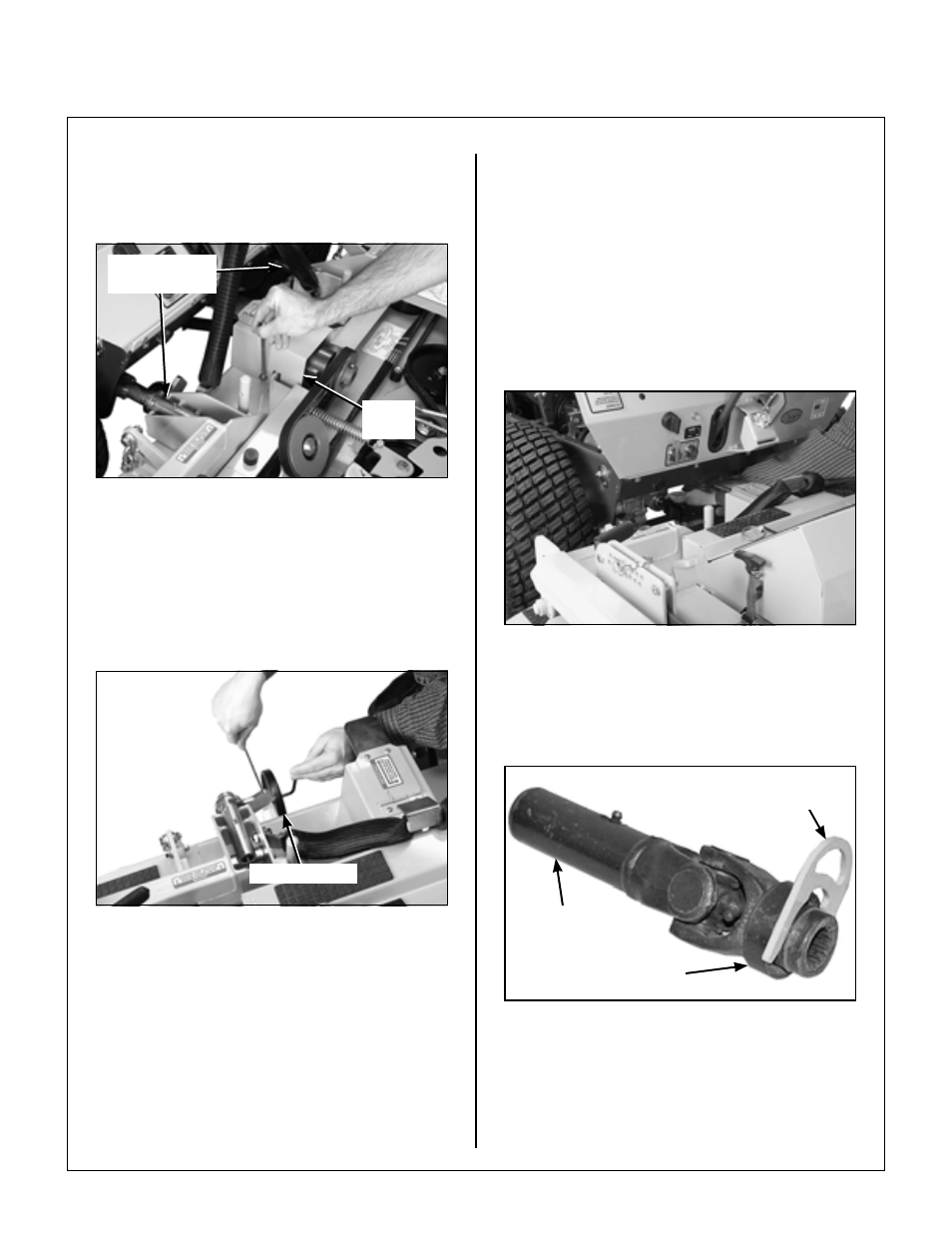

Walker MBSSD (27 HP) - Manual (Page 21)

Assembly Instructions
17
PTO Shaft Guard Installation
Position the shaft guard as shown and mount with
two 1/4-20 x 1/2 in. bolts.
PTO Shaft Guard Installation
Tilt-Up Roller Wheel Installation
Mount the two (2) tilt-up roller wheels on the brackets
on the rear skirt of the deck housing using the
P/N 8490 axle bolt, 3/8 in. wave spring washer and
3/8-16 in. Whiz locknut. Tighten the axle bolt until the
wheel rolls freely, but is not loose.
Roller Wheel Installation
Mower Deck Installation on Tractor
Deck Installation
1. Lightly grease each deck support arm (2) on the
tractor. Refer to Mower Deck Installation photo
for location of deck support arm.
2. Engage the LH deck carrier frame tube socket
first on the tractor support arms and then the RH
tube socket, slide the deck onto the support arms
approximately 3 in. (76 mm).
Retract Coupler Ring
3. Retract spring-loaded coupler ring on the PTO
Tube (provided in Owner’s Packet) and insert
coupler tool. Refer to Quick Coupler Installa-
tion Tool photo.
Quick Coupler Installation Tool
Attach
Guard
Carrier Frame
Tube Sockets
Roller Wheel
PTO Tube
Quick Coupler
Installation Tool
Pull Back Spring-Loaded
Coupler Ring
