INSTALLATION INSTRUCTIONS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.

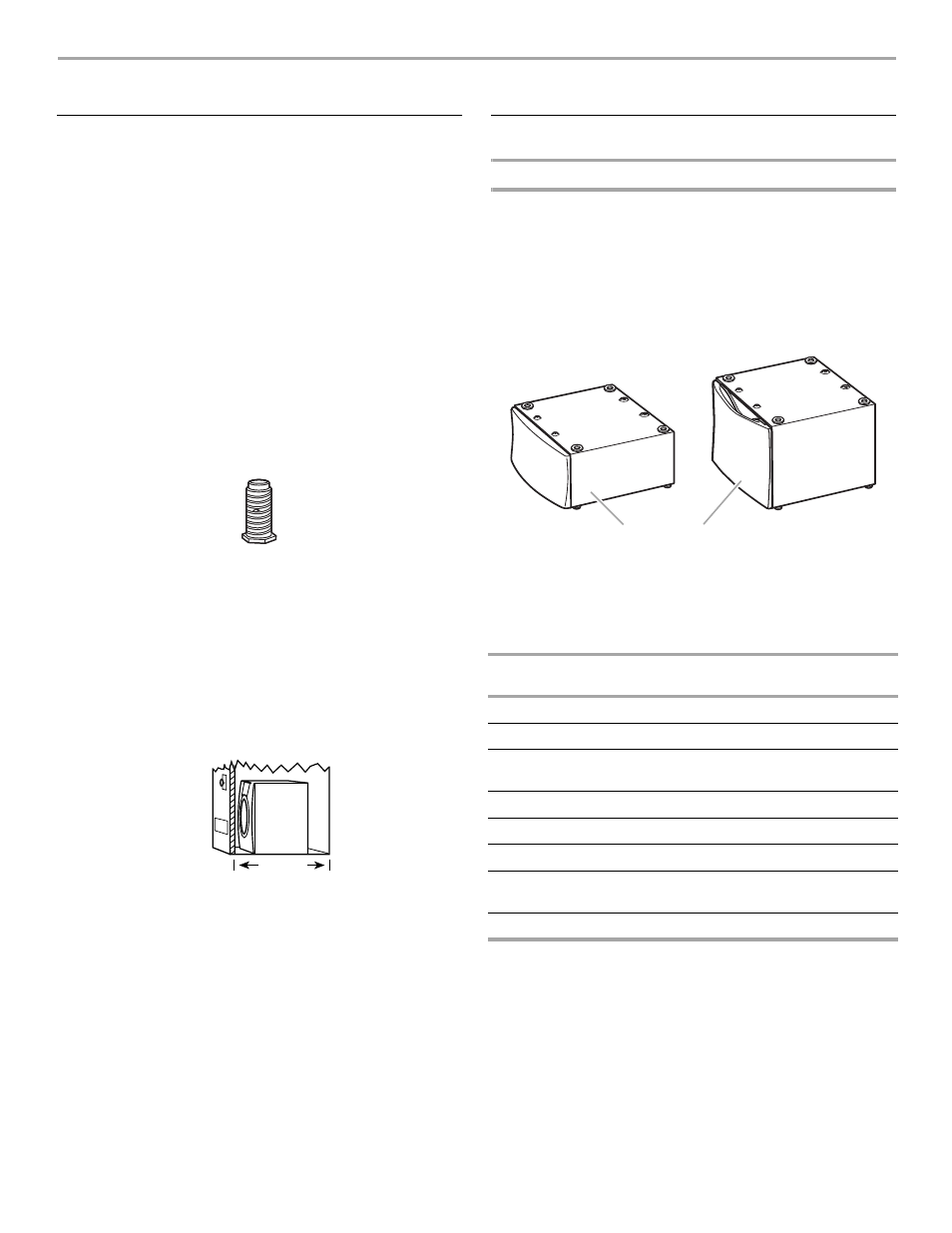

Parts supplied
Remove parts packages from dryer drum. Check that all parts are
included.
■ Parts package
4 Leveling legs
NOTE: Do not use leveling legs if installing the dryer on a
pedestal.
Parts needed
Check local codes. Check existing electrical supply and venting.
See “Electrical Requirements” and “Venting Requirements”
before purchasing parts.
■ For close-clearance installations between 31.5" (80.01 cm)
and 37" (93.98 cm), see “Plan Vent System” section for
venting requirements.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryer. For further information, please refer to the “Assistance
or Service” section of this manual.
Options
Pedestal
Are you placing the dryer on a pedestal? You have the option of
purchasing pedestals of different heights separately for this dryer.
You may select a 10" (25.4 cm) or 15.5" (39.4 cm) pedestal.
These pedestals will add to the total height of the dryer for a total
height of approximately 48" (121.9 cm) or 53.5" (135.9 cm),
respectively.
For a garage installation, you will need to place the 10" (25.4 cm)
pedestal at least 9" (22.9 cm) above the floor and the
15.5" (39.4 cm) pedestal at least 3.5" (8.9 cm) above the floor.
The pedestals are available in several colors.
To order, call the dealer from whom you purchased your dryer or
refer to the “Assistance or Service” section of this manual.
■ Flat-blade screwdriver
■ #2 Phillips screwdriver
■ Adjustable wrench that
opens to 1" (2.5 cm) or
hex-head socket wrench
(for adjusting dryer feet)
■ Wire stripper (direct wire
installations)
■ Level
■ Vent clamps
■ Caulking gun and
compound (for installing
new exhaust vent)
■ Tin snips (new vent
installations)
■ ¼" nut driver
(recommended)
■ Tape measure
37"
(93.98 cm)
A. 10" (25.4 cm) pedestal
B. 15.5" (39.4 cm) pedestal
Pedestal
Height
Color Part Number
10" (25.4 cm) White WHP1000SQ
10" (25.4 cm) Biscuit WHP1000ST
10" (25.4 cm) Diamond Dust
(Silver) WHP1000SU
10" (25.4 cm) Black Diamond WHP1000SB
15.5" (39.4 cm) White WHP1500SQ
15.5" (39.4 cm) Biscuit WHP1500ST
15.5" (39.4 cm) Diamond Dust
(Silver) WHP1500SU
15.5" (39.4 cm) Black Diamond WHP1500SB
A B
