TECHNICAL SUPPORT 1 800 908 0884 11
The gate must be installed in a location so that enough clearance is supplied
between the gate and adjacent structures when opening and closing to reduce the
risk of entrapment.
Swinging gates shall not open into public access areas.

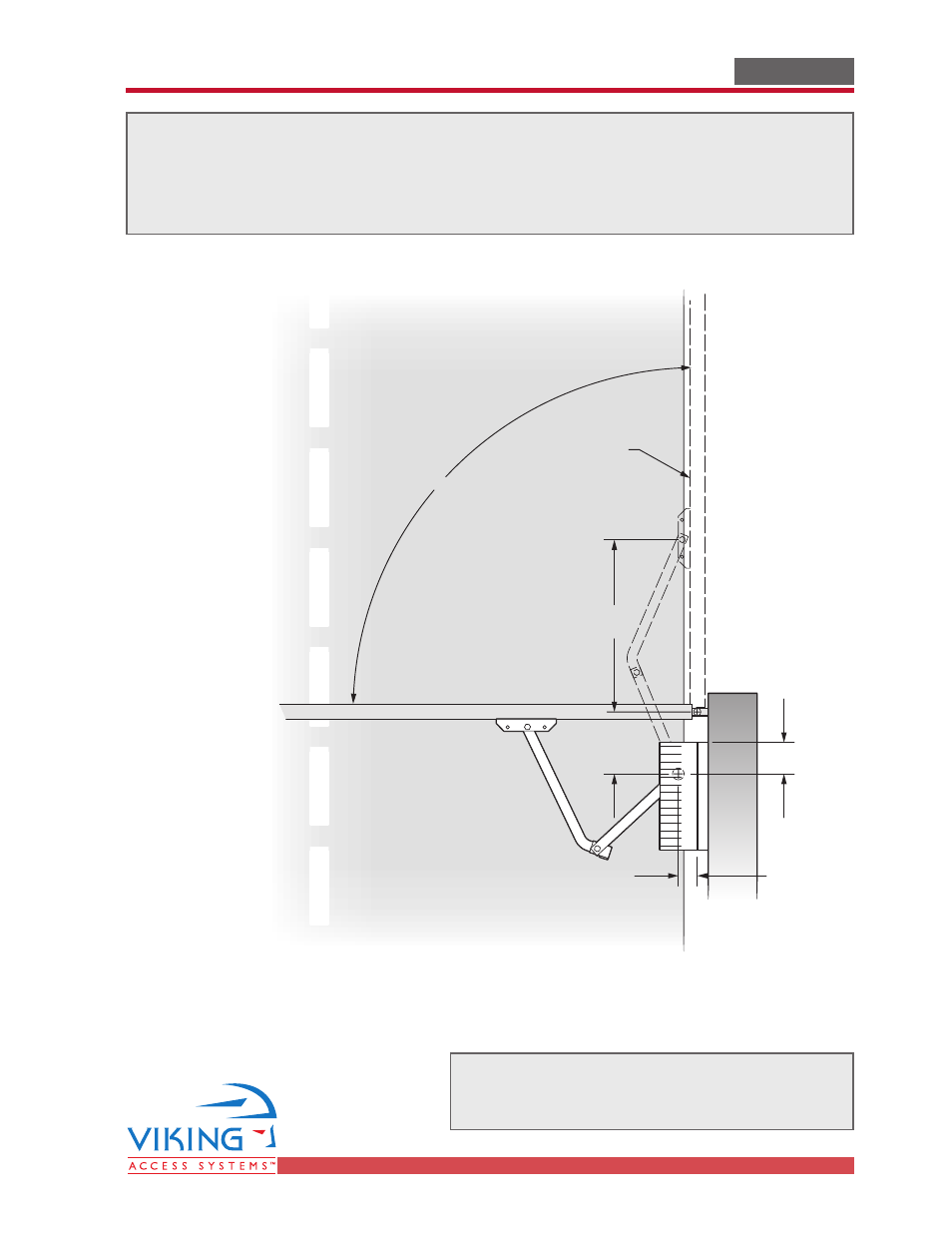

PLAN OF INSTALLATION – OPEN OUTSIDE PLAN OF INSTALLATION – OPEN OUTSIDE
Inside
Outside
Gate in Closed Position
C:
19-1/2"
90
°
A:
11-3/4"
Max.
G: 4.33"
Ref.
H:
2.55"
Ref.
Gate in Open
Position
Figure C
Open Outside Plan of Installation
Note: Varying from the dimensions shown
may severely affect the speed and
performance of the gate operator.
