Gate operator installation, Limit switch connections, Reference wiring diagram opening/closing setup – Viking Access Systems Vehicular Gate Opener X-9 User Manual

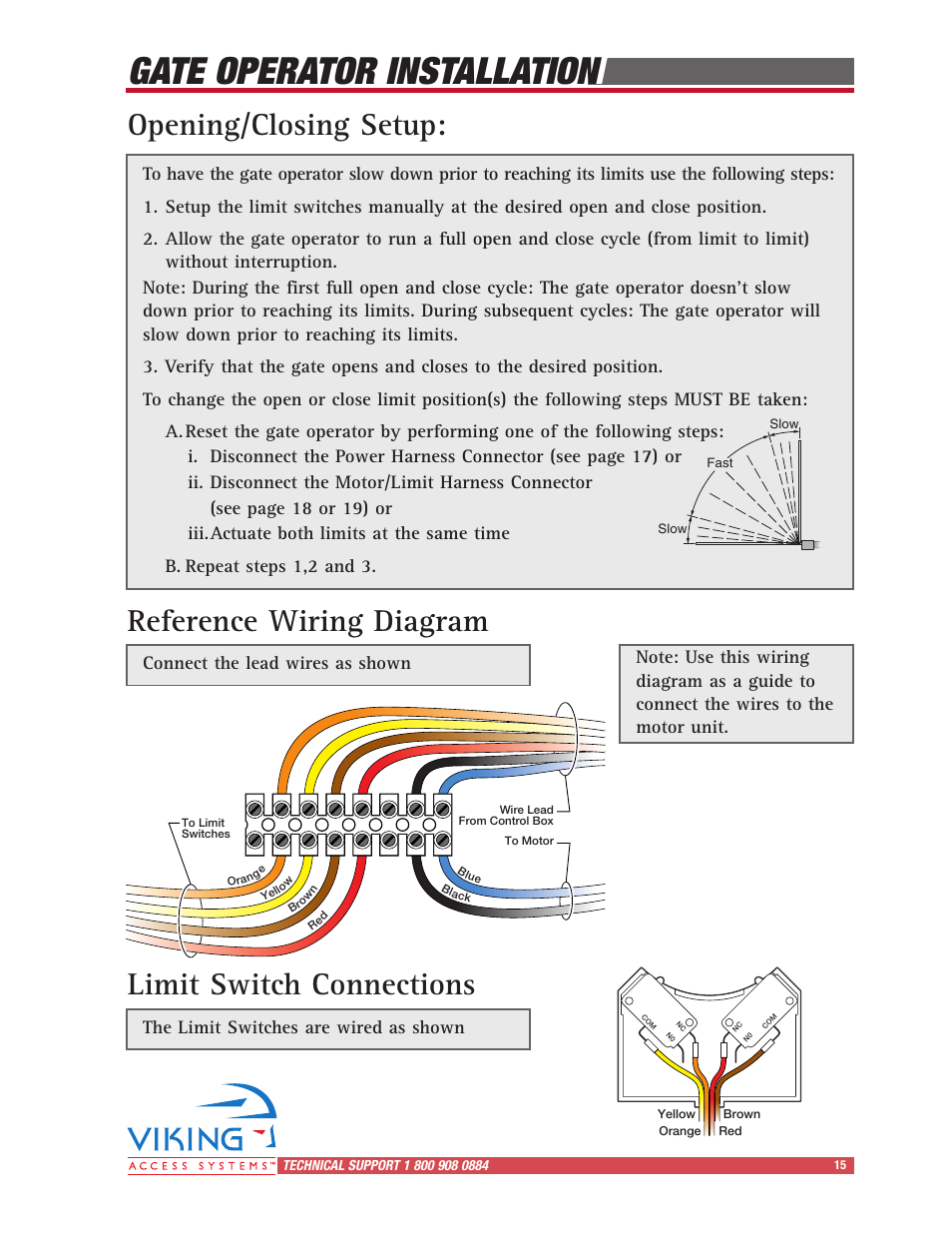

Page 17: The limit switches are wired as shown

Text mode
Original mode

Gate operator installation, Limit switch connections, Reference wiring diagram opening/closing setup | The limit switches are wired as shown | Viking Access Systems Vehicular Gate Opener X-9 User Manual | Page 17 / 36
