Vizio TL-R480T - Manual (Page 17)

TL-R480T Enterprise Broadband Router User Giude

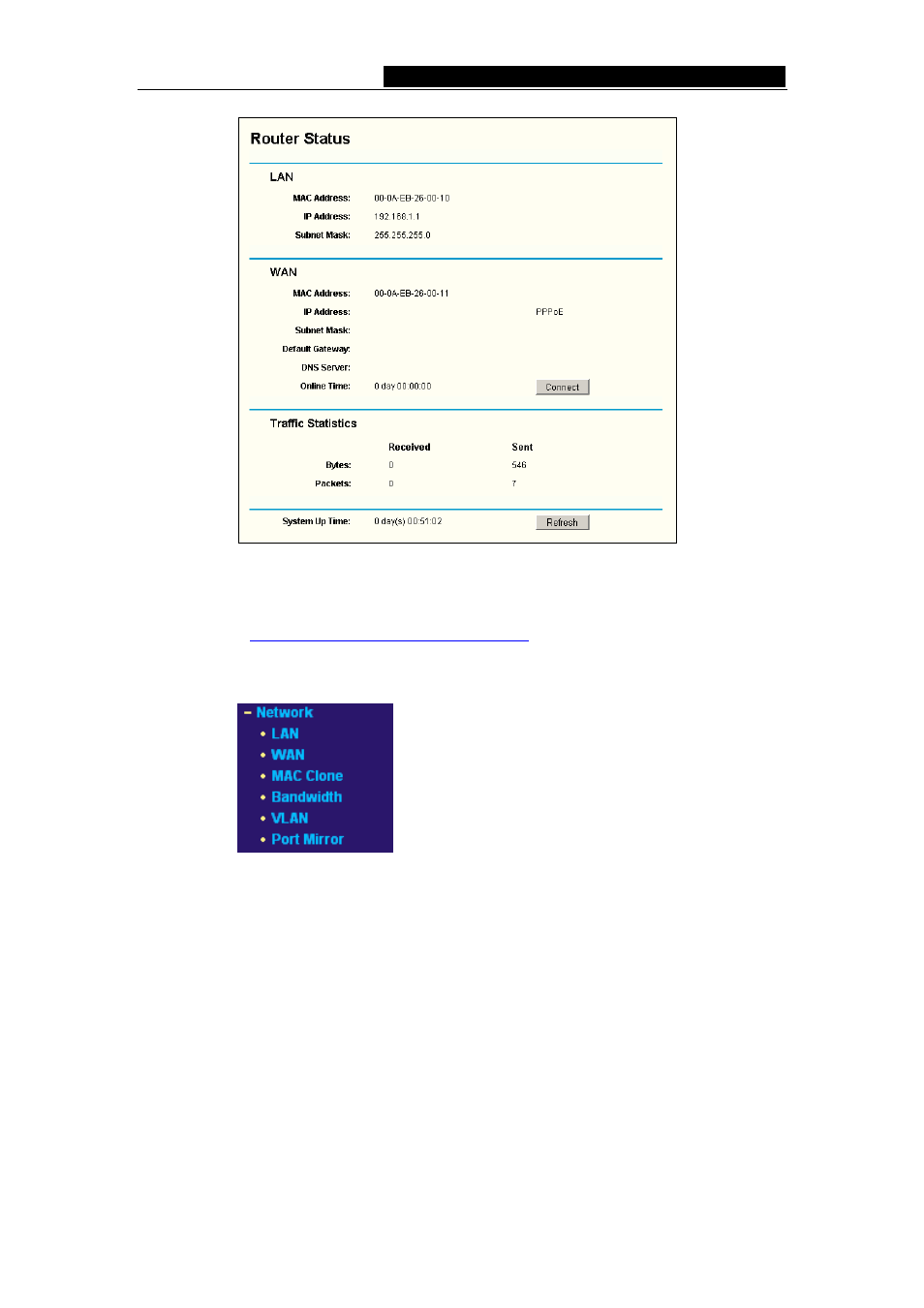

Figure 5-1 Router Status
5.3 Quick Setup
Please refer to Section 4.2: "Quick Installation Guide."
5.4 Network
Figure 5-2 the Network menu
There are six submenus under the Network menu (shown in figure 5-2): LAN, WAN,
MAC Clone, Bandwidth Control, VLAN and Port Mirror. Click any of them, and you
will be able to configure the corresponding function. The detailed explanations for each
submenu are provided below.
5.4.1 LAN
You can configure the IP parameters of the LAN on this page.
- 13 -
