CONTROLS AND CONTROL SYSTEM
Refer to Fig 5:
(A1) Low pressure gauge for A/C system
(A2) High pressure gauge for A/C system
(A4) Pressure gauge for storage tank
(A6) Emergency/alarms panel
(A7) Display
(A8) Keypad controls
(A9) Operations selector panel
A1
A2
A9
A4
A6
A7
A8

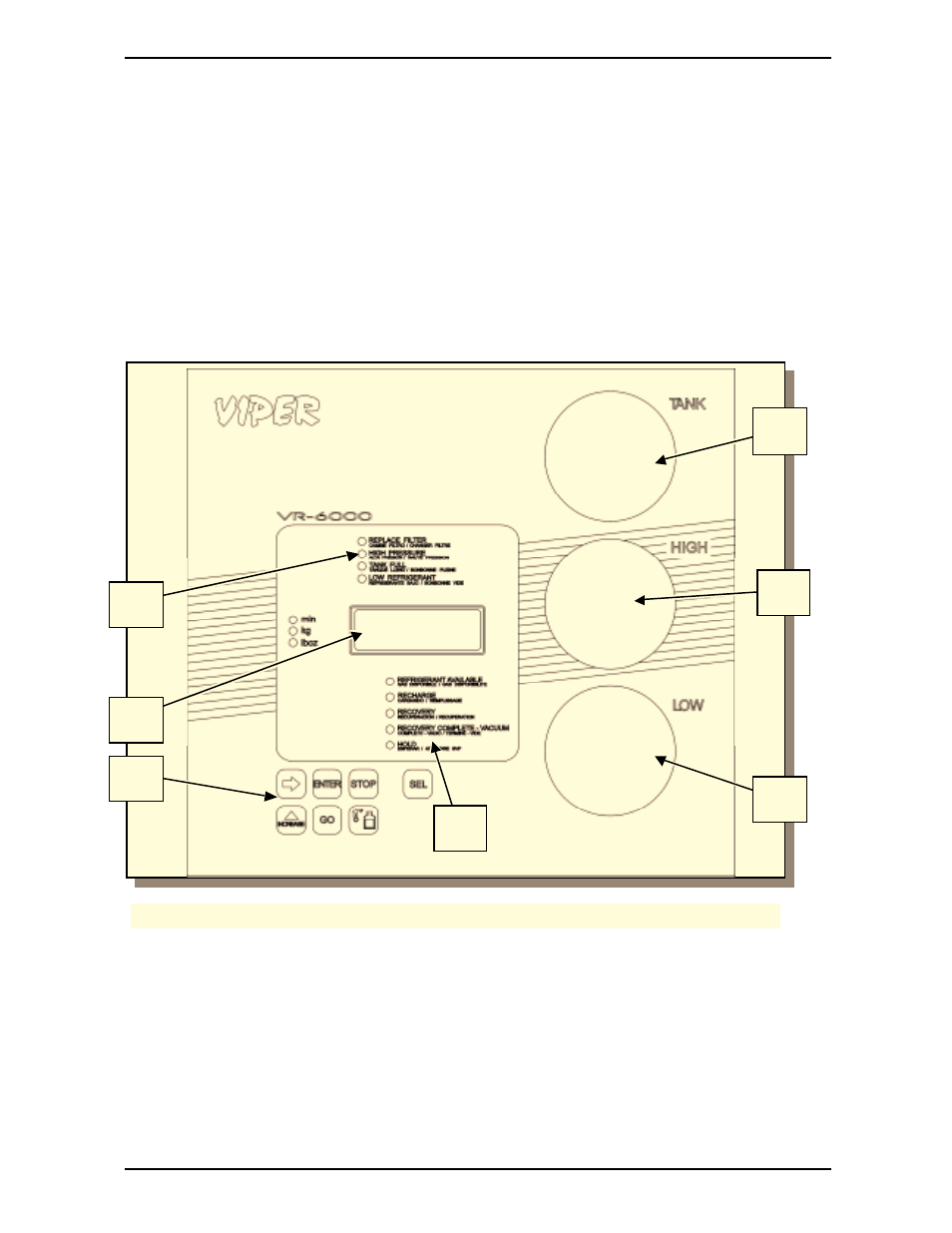

Fig.5: Control Panel
