VIZIO VA22L FHDTV10T User’s Manual
Version 9/12/2008 17
www.VIZIO.com

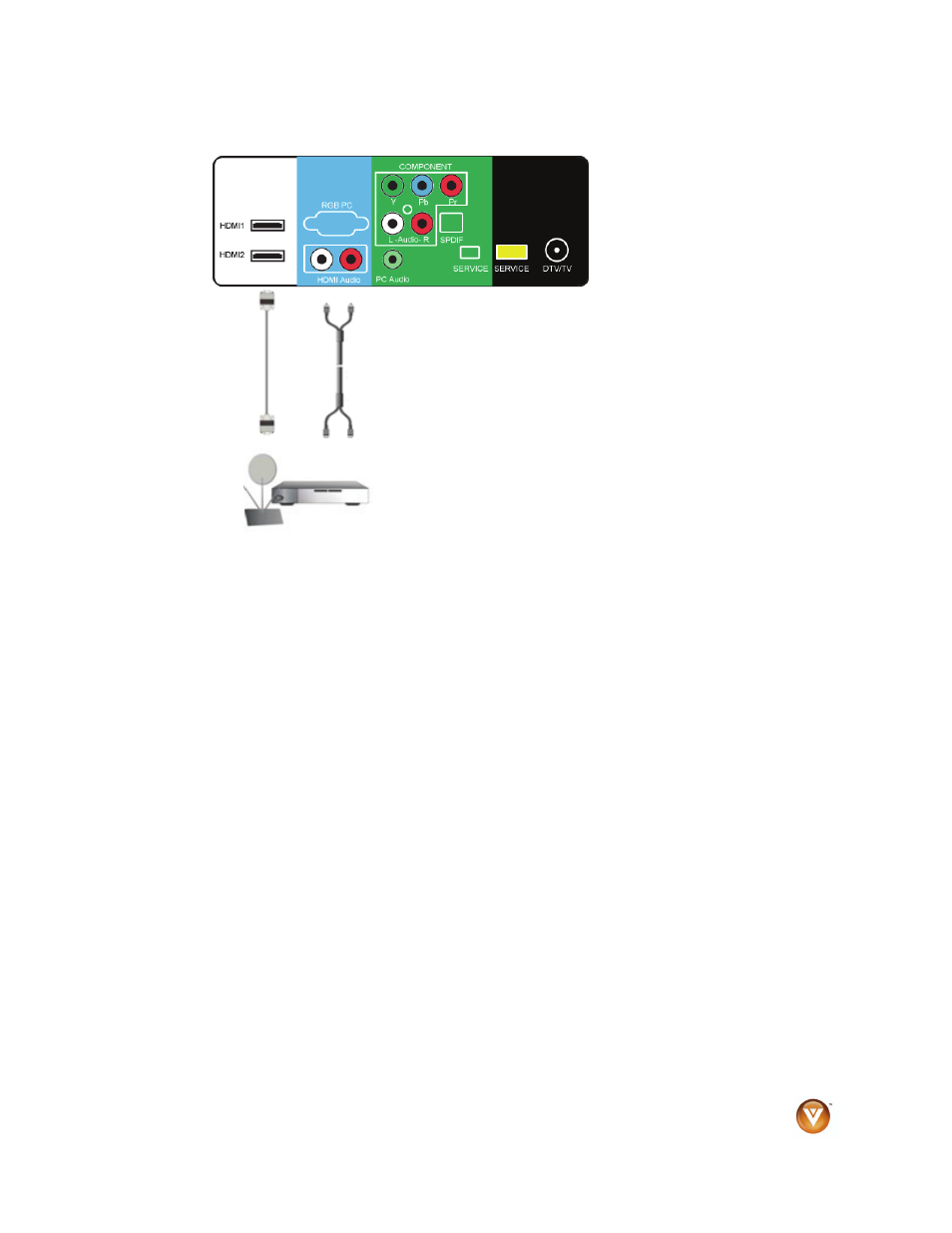

HDMI Connections for Cable or Satellite Boxes with DVI
1. Turn off your HDTV and set-top box.
2. Using an HDMI-DVI cable, connect the DVI end to the DVI OUT jack on your set-top box and the
HDMI end to the HDMI 2 jack on the back of your HDTV.
3. Connect the audio cable (white and red connectors) from the DVI audio output jacks on the set-
top box to the adjacent HDMI 2 audio jacks on the back of your HDTV.
4. Turn on your HDTV and set-top box.
5. Press HDMI repeatedly on the remote control to view the content. You can also press INPUT on
the remote control.
NOTE:
! If HDMI2 is being used, connect to the HDMI1 port instead.
! The HDMI input on the TV supports High-bandwidth Digital Content Protection (HDCP). HDCP
encrypts the transmission between the video source and the digital display for added security and
protection.
