1. Key features
Color /Monochrome (Mono) scan selection
600/300 dpi scan selection
Directly save JPG file to microSD card
Support microSD/SDHC card up to 32GB
Driver free to download for Windows® XP SP2, Windows® Vista™,
Windows® 7 and Mac OS® 10.4 or above (direct plug-in, driver
installation not required)

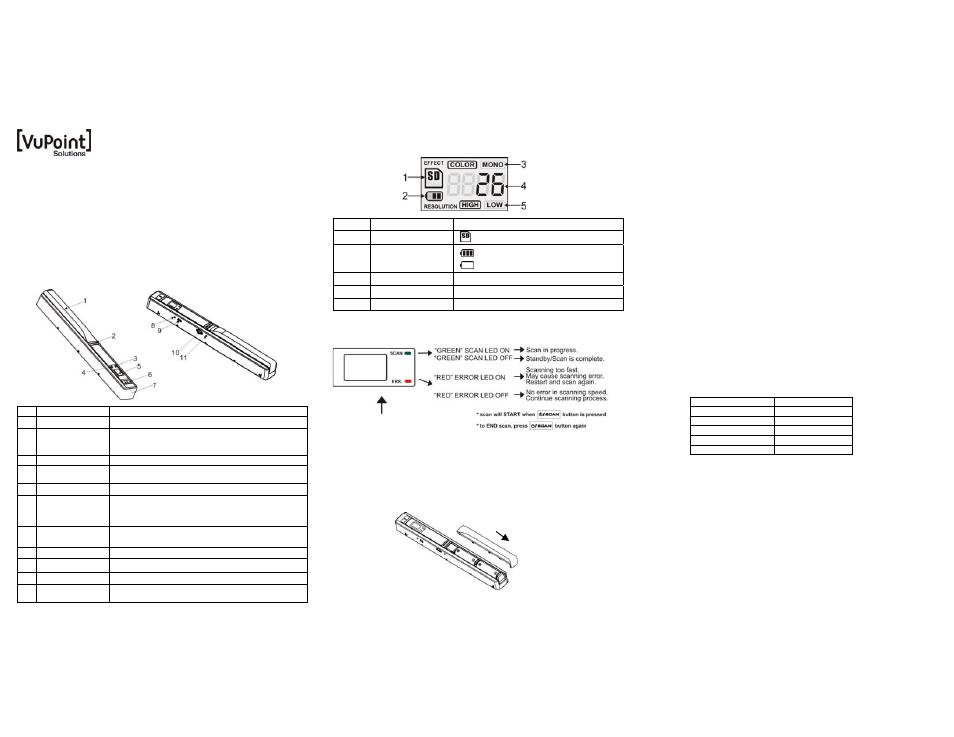

2. Functional parts
Part Function
1 Battery door For 2x AA alkaline batteries
2 Power/Scan
Power On/ Off: Press and hold this key for 2 seconds to
turn power on or off. In power on mode, press this
button to start scan, press this button again to stop
3 Error LED indicator Over speed: Red LED on
4
Scan LED
indicator
Ready for scan: Green LED on
5 LCD screen Scanning status display
6 Resolution
Select High(600dpi)/Low(300dpi) resolution;
High/Low resolution mode icon will be displayed on
status LCD
7 C/BW
Select Color/Mono scan, Color/Mono mode icon will be
displayed on status LCD
8 Time set Press this button to enter Time and Date setting mode
9 USB interface Download photo to a computer via USB cable provided.
10 microSD card slot microSD card storage location.
11 Format button
Press this button with a thin, blunt object, such as the
end of a paperclip to format the microSD card.
3. Explanation of the status icons
Item Function Description
1 SD card indicator Photos will be stored in microSD card
2 Battery indicator
Battery is full
Empty battery
3 Effect indicator Color or Mono
4 Counting indicator Show scanned files in microSD card
5 Selected resolution High:600 dpi / Low:300 dpi
4. LED light indications
5. Using the scanner
5.1 Installing the battery
1. Open the battery door by sliding the battery compartment downwards as
indicated by the arrow in the diagram below.
2. Insert 2x AA alkaline batteries into the battery compartment.
3. Turn on the scanner by pressing the [POWER] button for 2 seconds.
5.2 Inserting a microSD memory card (not included)
To operate the scanner, you must insert a microSD Card (not supplied) to record
and store your pictures. Inserting the microSD memory card:
1. Turn OFF the scanner.
2. Insert the microSD card into the microSD card slot (with metal side facing up).
Gently press in until card is latched.
Note: - Do not force the card into the slot; forcing may damage the scanner and the
microSD memory card. Align microSD card position (as marked) and try
again.
5.3 Formatting the microSD memory card
Note: All content on the microSD card will be erased during formatting. It is
recommended, but not necessary.
1. Insert a microSD card into the scanner with metal side facing up.
2. Turn on the scanner by pressing the [Power/Scan] button for 2 seconds.
3. Press the [FORMAT] button with a thin, blunt object, such as the end of a
paperclip to access the button. An “F” will show on the LCD status display
screen.
4. Press the [SCAN] button once to begin formatting the microSD card.
5. The microSD card indicator will blink until the formatting process is complete.
5.4 Time and Date setting
1. Press [TIME SET] button once to enter time setting mode by using a thin, blunt
object, such as the end of a paperclip to access the button. The LCD status
display screen will show “1 XX”.
2. Press the [C/BW] or [DPI] button to select the current Year.
3. Press [SCAN] button once to confirm setting.
4. Repeat step 2 and 3 to continue the Time and Date setting process
5. After setting the Minute, “5 XX”, press the [TIME SET] button again to complete
the Time and Date setting.
5.5 Setting the resolution
Press the [DPI] button to select High/Low resolution.
High/Low resolution icon will be displayed on status LCD.
5.6 Setting the scan mode
Press the [C/BW] button to select Color/Mono mode.
Color/Mono icon will be displayed on status LCD.
Indicator Setting
1 XX Year
2 XX Month
3 XX Date
4 XX Hour
5 XX Minute
