VuPoint Solutions PDS-ST440-VP - Manual

PDS-ST440-VP Manual
1. Key features
Color /Monochrome (Mono) scan selection
600/300 dpi scan selection
Directly save JPG file to microSD/microSDHC card
Supports microSD/microSDHC card up to 32GB
Color LCD Display
Driver free to download for Windows® XP, Windows® Vista™,
Windows® 7 and Mac OS® 10.4 or above
(direct plug-in, driver installation not required)

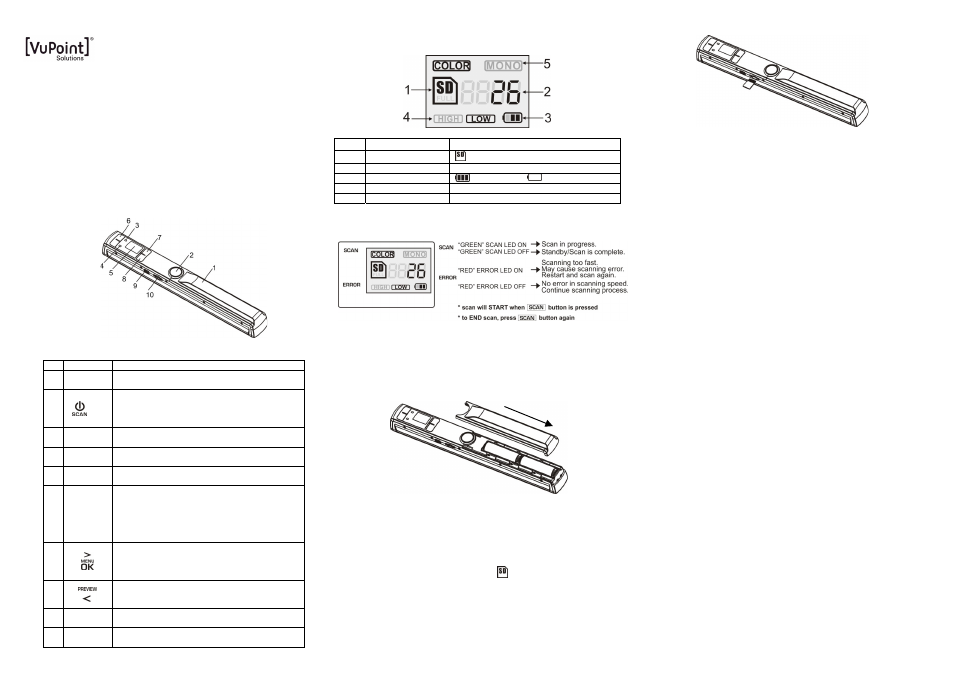

2. Functional parts
Part Function
1
Battery
door
For 2x AA alkaline batteries
2
Power On/ Off: Press and hold this key for 2
seconds to turn power on or off. In power on mode,
press this button to start scan, press this button
again to stop
3
Scan LED
indicator
Ready for scan: Green LED on
4
Error LED
indicator
Over speed: Red LED on
5
LCD
screen
Scanning status display
6 UP/DOWN
In MENU mode: Press UP/DOWN buttons to
navigate the setup menu.
In PREVIEW mode: Preview NEXT or PREVIOUS
image file.
In ZOOM Mode: Navigate upper and lower area of
the image file.
7
Press MENU/OK/RIGHT button to enter MENU
setting mode.
In ZOOM mode: Move to view right side of the
image file.
8
Press PREVIEW/LEFT button to enter PREVIEW
mode. Press again to select ZOOM options.
In ZOOM mode: Move to view left side of image file.
9
USB
interface Download photo to a computer via USB cable
provided.
10
microSD
card slot
microSD card storage location.
3. Explanation of the status icons
Item Function Description
1 SD card indicator Photos will be stored in microSD card
2 Counting indicator Show scanned files in microSD card
3 Battery indicator Battery is full Empty battery
4 Selected resolution High:600 dpi / Low:300 dpi
5 Effect indicator Color or Mono
4. LED light indications
5. Using the scanner
5.1 Installing the battery
1. Open the battery door by sliding the battery compartment downwards as
indicated by the arrow in the diagram below.
2. Insert 2x AA alkaline batteries into the battery compartment.
3. Turn on the scanner by pressing the [POWER] button for 2 seconds
5.2 Inserting a microSD memory card (not included)
To operate the scanner, you must insert a microSD Card (not supplied) to
record and store your pictures. Inserting the microSD memory card:
1. Turn ON the scanner.
2. Insert the microSD card into the microSD card slot (with metal
side facing upwards). Gently press in until card is clicked in and
latched. The SD card indicator
must appear on the LCD
screen.
Note: Do not force the card into the slot; forcing may damage scanner and
the microSD memory card. Align microSD card position (as marked)
and try again.
5.3 MENU Setup mode
1. Press [MENU] button to enter MENU Setup
2. Press [POWER/SCAN] button to exit MENU mode
5.3.1 QUALITY setting
1. Press [MENU] button to enter MENU Setup
2. Press UP/DOWN buttons to select QUALITY
3. Press [OK] to enter QUALITY mode
4. Press UP/DOWN buttons to select options: High resolution
(600dpi)/ Low resolution (300dpi)
5. Press [OK] to confirm
6. QUALITY setting will be saved and will exit to return to the
previous Menu Setup screen
5.3.2 COLOR setting
1. Press [MENU] button to enter MENU setting mode
2. Press UP/DOWN buttons to select COLOR
3. Press [OK] to enter COLOR mode
4. Press UP/DOWN to select options: Color/Mono (black and white
scans)
5. Press [OK] to confirm
6. COLOR setting will be saved and will exit to return to the
previous Menu Setup screen
5.3.3 TIME setting
1. Press [MENU] button to enter MENU Setup
2. Press UP/DOWN buttons to select TIME SETUP
3. Press [OK] to enter TIME SETUP mode
4. Press UP/DOWN buttons to set the YEAR
5. Press [OK] to set the MONTH Æ DAY Æ HOUR Æ MINUTES Æ
SECONDS
6. After setting the date and time, press [OK] to save and exit to
return to the previous Menu Setup screen
5.3.4 AUTO POWER OFF setting
1. Press [MENU] button to enter MENU Setup
2. Press UP/DOWN buttons to select AUTO POWER OFF
3. Press [OK] to enter AUTO POWER OFF mode
4. Press UP/DOWN buttons to select options: 1Min/ 3Min/ 5Min/Off
5. Press [OK] to confirm
6. AUTO POWER OFF setting will be saved and will exit to return to
the previous Menu Setup screen
5.3.5 DEFAULT Setting
1. Press [MENU] button to enter MENU Setup
2. Press UP/DOWN buttons to select DEFAULT
3. Press [OK] to enter DEFAULT mode
4. Press UP/DOWN buttons to select DEFAULT options: Yes/No
5. Press [OK] to confirm
6. DEFAULT setting will be saved and will exit to return to the
previous Menu Setup screen
5.3.6 FORMAT the microSD memory card
Note: All contents on the microSD card will be erased during formatting.
1. Insert a microSD card into the scanner with metal side facing
