Installation Manual

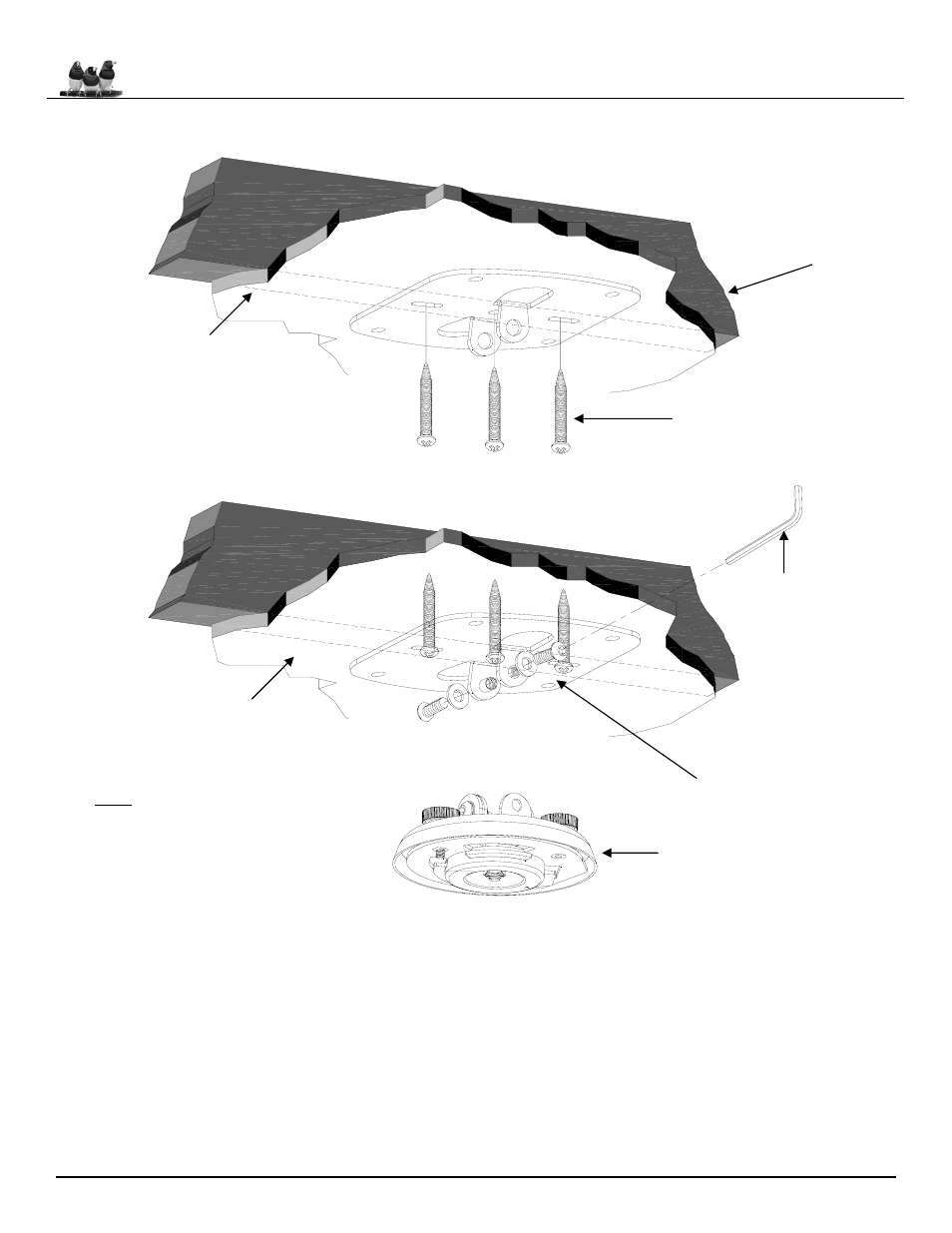

Figure 6B. Low Profile Installation
Secure the ceiling plate to the ceiling structure.
Ceiling Structure
Wooden Stud
Lag Bolts
Allen Wrench
Secure the bell housing
with two M8 x 16mm
screws and flat washers.
Re-attach the bell housing to
the ceiling plate.
Ceiling Structure
NOTE:
Do not use the star
washers on a close-
ceiling application
