Viper 200.4 User Manual

Page 9

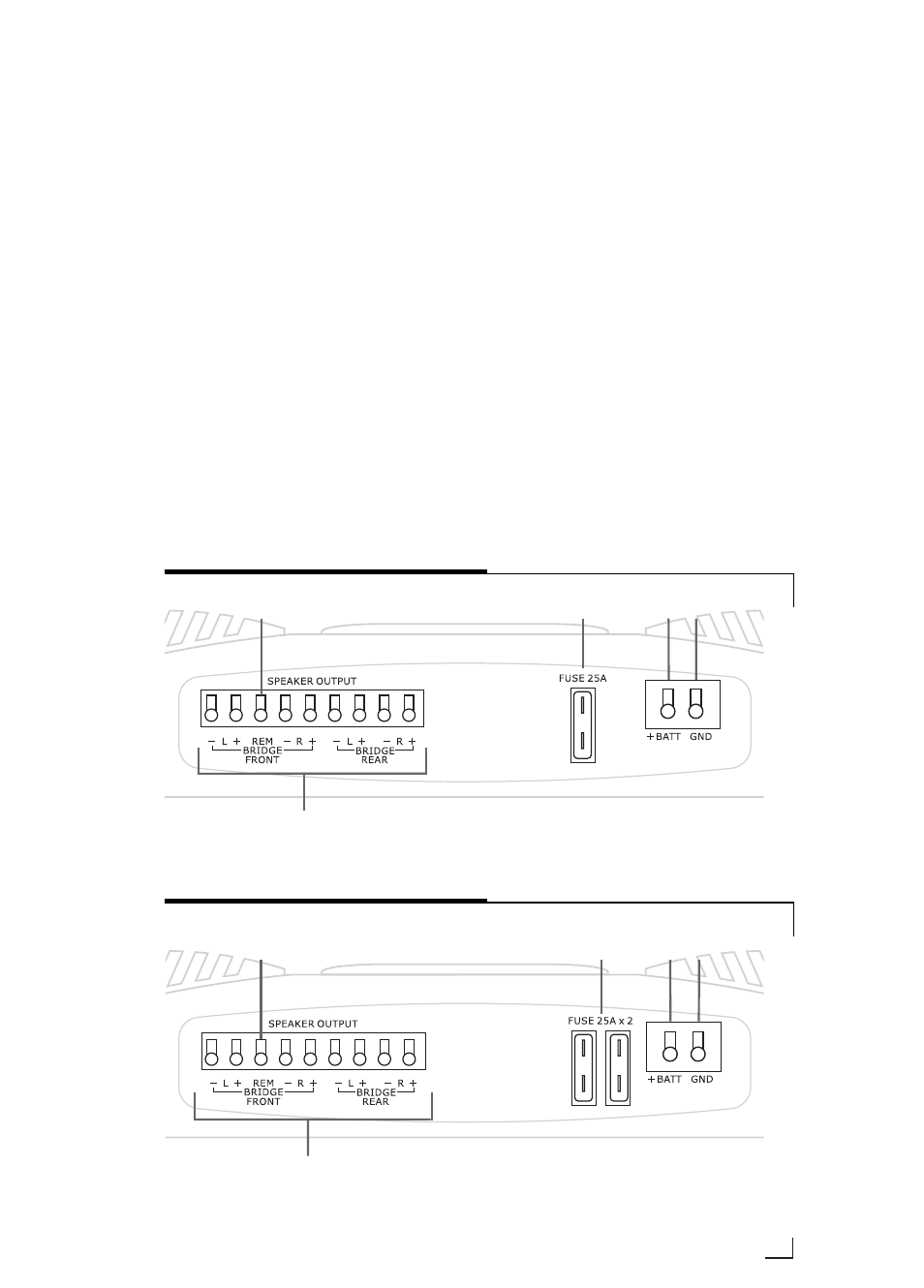

FIGURE 2—AMPLIFIER CONNECTIONS 500.4 REAR

FIGURE 3—AMPLIFIER CONNECTIONS 200.4 REAR

4. ((++)) 1122 VVoolltt PPoow

weerr - Connect this

terminal through a FUSE or CIRCUIT
BREAKER to the positive terminal of
the vehicle battery or the positive
terminal of an isolated audio
system battery.

WAARRNNIINNGG:: Always protect this power wire by installing a fuse

or circuit breaker of the appropriate size within
12 inches of the battery terminal connection.

5. GGrroouunndd - Connect this terminal

directly to the sheet metal chassis
of the vehicle, using the shortest
wire necessary to make this

connection. Always use wire of the
same gauge or larger than the (+)
12 volt power wire. The chassis
connection point should be scraped
free of paint and dirt. Use only
quality crimped and/or soldered
connectors at both ends of this
wire. DO NOT connect this terminal
directly to the vehicle battery
ground terminal or any other
factory ground points.

This manual is related to the following products:

500.4
