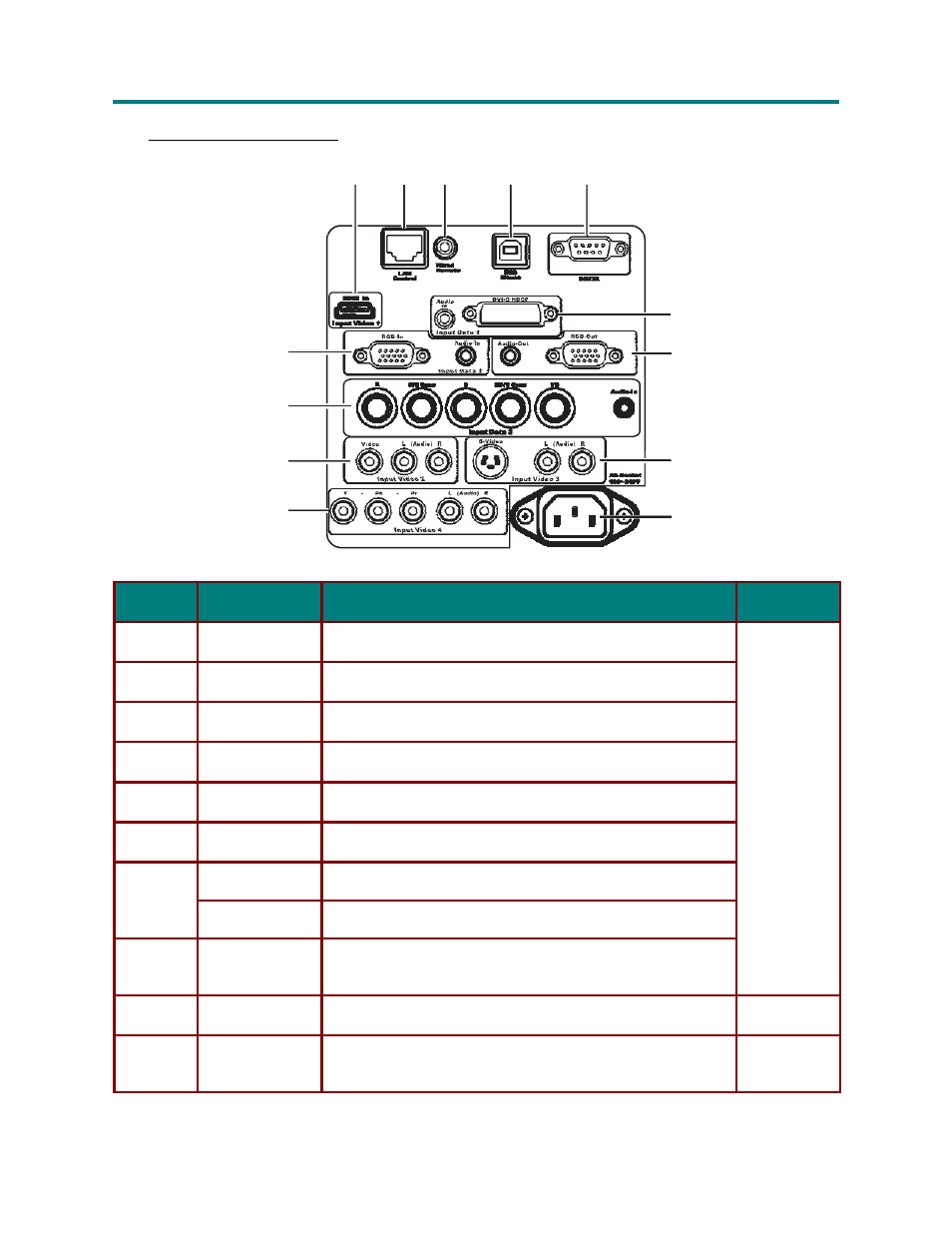

S
ide View Connectors
1
2
3
4
5
6
13
7
12
11
8
10
9
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
Input Video 1
Connect an HDMI cable from an HDTV
2.
LAN Control
Connect a LAN cable for controlling projector through a PC
3.
Wired Remote
Connect a wired remote control
4.
USB Mouse
Connect the USB cable from a computer
5.
RS232
This is a service port for firmware upgrades.
6.
Input Data 1
Connect a DVI-D computer cable from a computer
Audio-Out
Connect an audio cable to external speakers
7.
RGB-Out
Connect an RGB cable to an external monitor
8.
Input Video 3
Connect an S-video cable to the S-video connector
Connect an RCA audio connector to L/R audio connectors
12
9.
Power
Connect the supplied power cord
14
10.
Input Video 4
Connect an RCA component cable the Y/Pb/Pr connectors
Connect an RCA audio connector to L/R audio connectors
12
