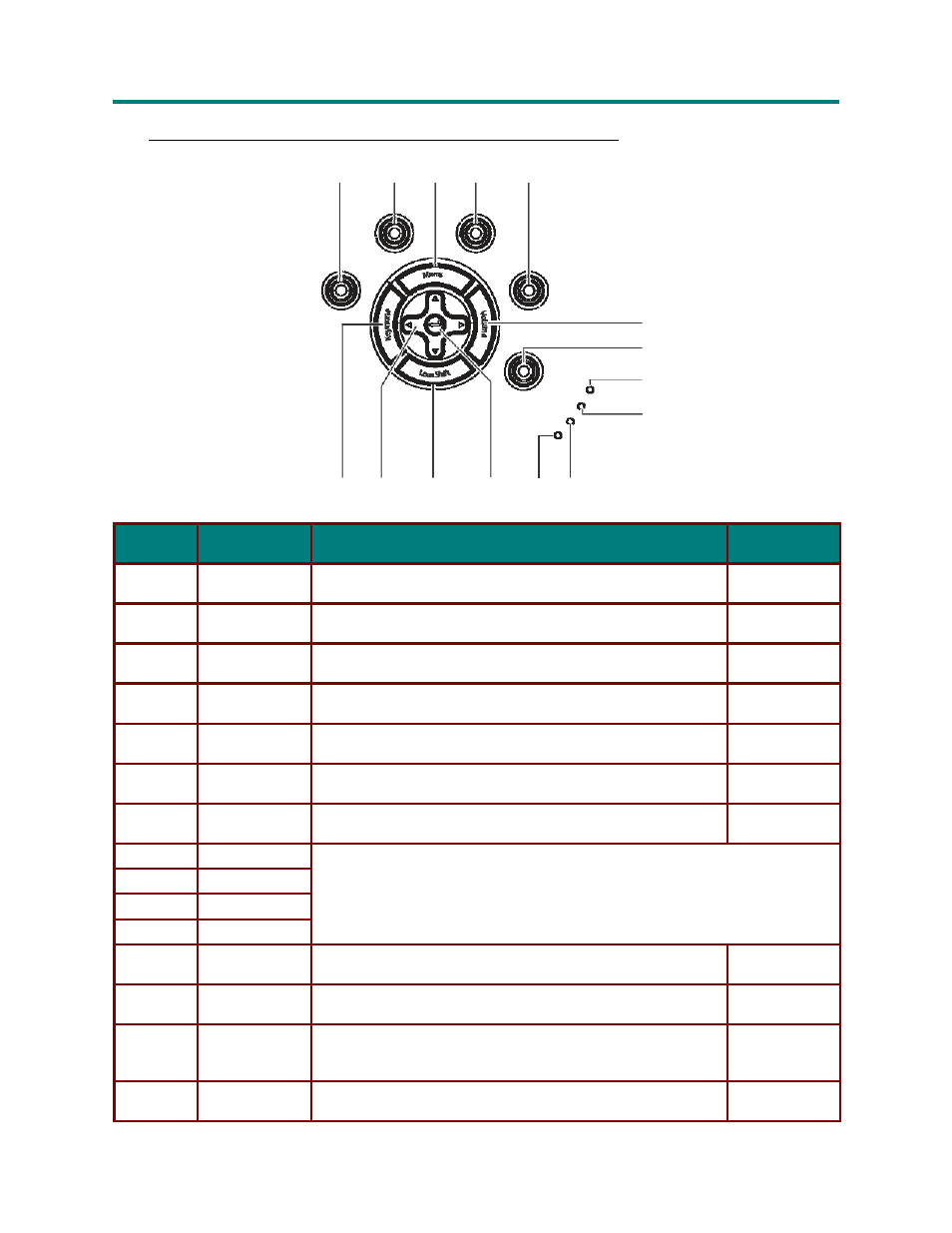

T
op View—On-screen Display (OSD) Buttons and LEDs
1 2
3
4 5
Auto
Source
Data
Power
on/off
Source
Video
User
Mode
6
7
8
Power
Temp
9
Lamp 1
Lamp 2
15 14 13
12 11 10
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
Power of/off
Turns the projector on or off
14
2.
Auto
Optimizes image size, position, and resolution
3.
Menu
Opens and exits the OSD
19
4.
Source Data
Detects the data (PC) input device
14
5.
Source Video
Detects the video input device
6.
Volume
Adjust the volume with LEFT/RIGHT arrow buttons
7.
User Mode
Open the User mode menu
8.
Power
9.
Temp
10.
Lamp 1
11.
Lamp 2
See “Projector LED Descriptions” on page 5.
12.
Enter
Confirm settings in OSD menus
13.
Lens Shift
Adjust the vertical shift of the lens
14.
Arrow buttons
Navigate and changes settings in the OSD
Volume/keystone adjust when OSD off
15.
Keystone
Adjust the keystone with UP/DOWN arrow buttons
