TL-WR641G 108M Wireless Router User Guide
- 8 -

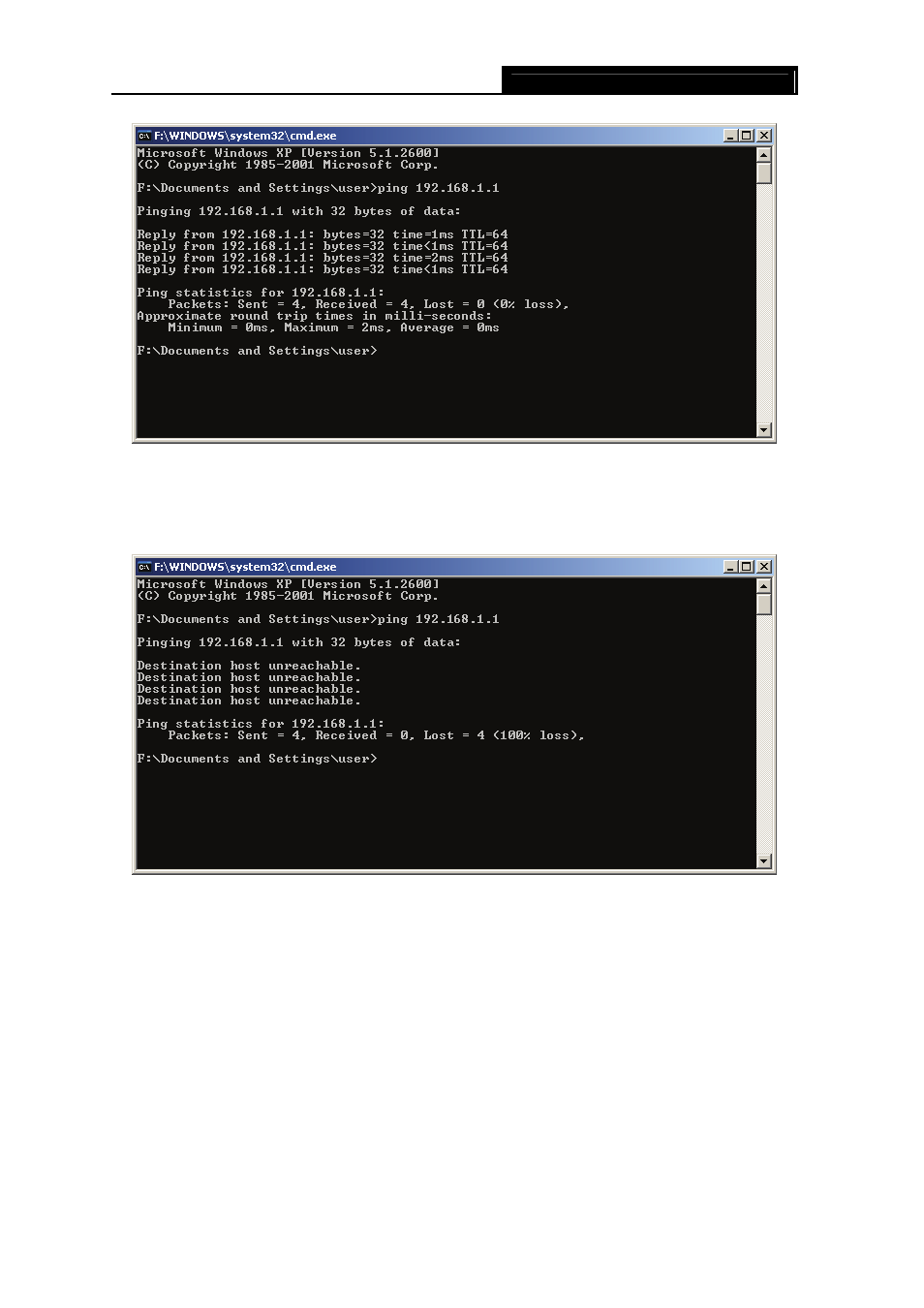

Figure 3-1
If the result displayed is similar to that shown in Figure 3-2, it means that your PC has not
connected to the router.
Figure 3-2
Please check the connection following these steps:
1. Is the connection between your PC and the router correct?
) Note:
The 1/2/3/4 LEDs of LAN port which you link to on the router and LEDs on your PC's adapter
should be lit.
2. Is the TCP/IP configuration for your PC correct?
) Note:
If the router's IP address is 192.168.1.1, your PC's IP address must be within the range of
