PANEL Unit

34

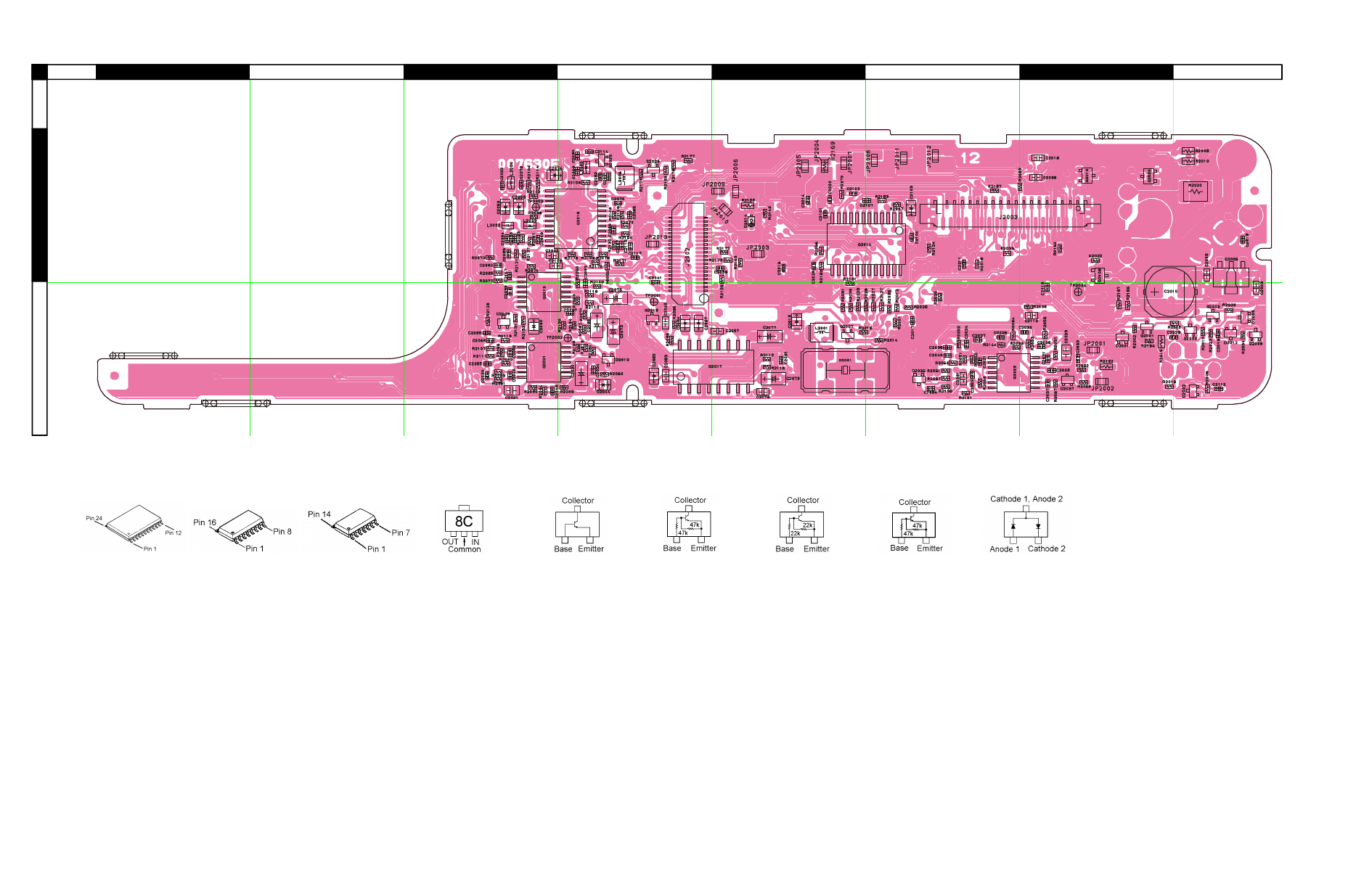

Parts Layout (Side B)

a

c

b

e

d

g

f

h

1

2

AK2345

(Q2016)

M62364FP

(Q2014)

LA8630M

(Q2017)

NJM2902V

(Q2015, 2021, 2022)

NJM78L05

(Q2006)

2SC4617 (BR)

(Q2001, 2002,

2005, 2007)

PDTC144EE (08)

(Q2019)

RT1N241M (N2)

(Q2008, 2010, 2025)

RT1P441U (P3)

(Q2009)

DA221 (K)

(D2001, 2002, 2005,

2009, 2012, 2013,

2036)
