5. CONTROLS AND INDICATORS
5.1 CONTROLS AND SWITCHES
NOTE
This section defines each control of the transceiver. For detailed operat-
ing instructions, refer to section 6 “BASIC OPERATION”. Refer to illus-
trations for the location of the following controls, switches, and connec-
tions.
c ANT Jack (Top Panel)
The supplied CAT460 flexible antenna is attached here.
d MIC/SP Jack (Top Panel)
The jack accepts the optional CMP460 Speaker/Microphone, MH-73
A4B
Speaker/Microphone, MH-57
A4B
Mini Speaker/Microphone, VC-24 VOX
Headset, or VC-27 Earpiece/Microphone. When this jack is used, the in-
ternal speaker and microphone are disabled.

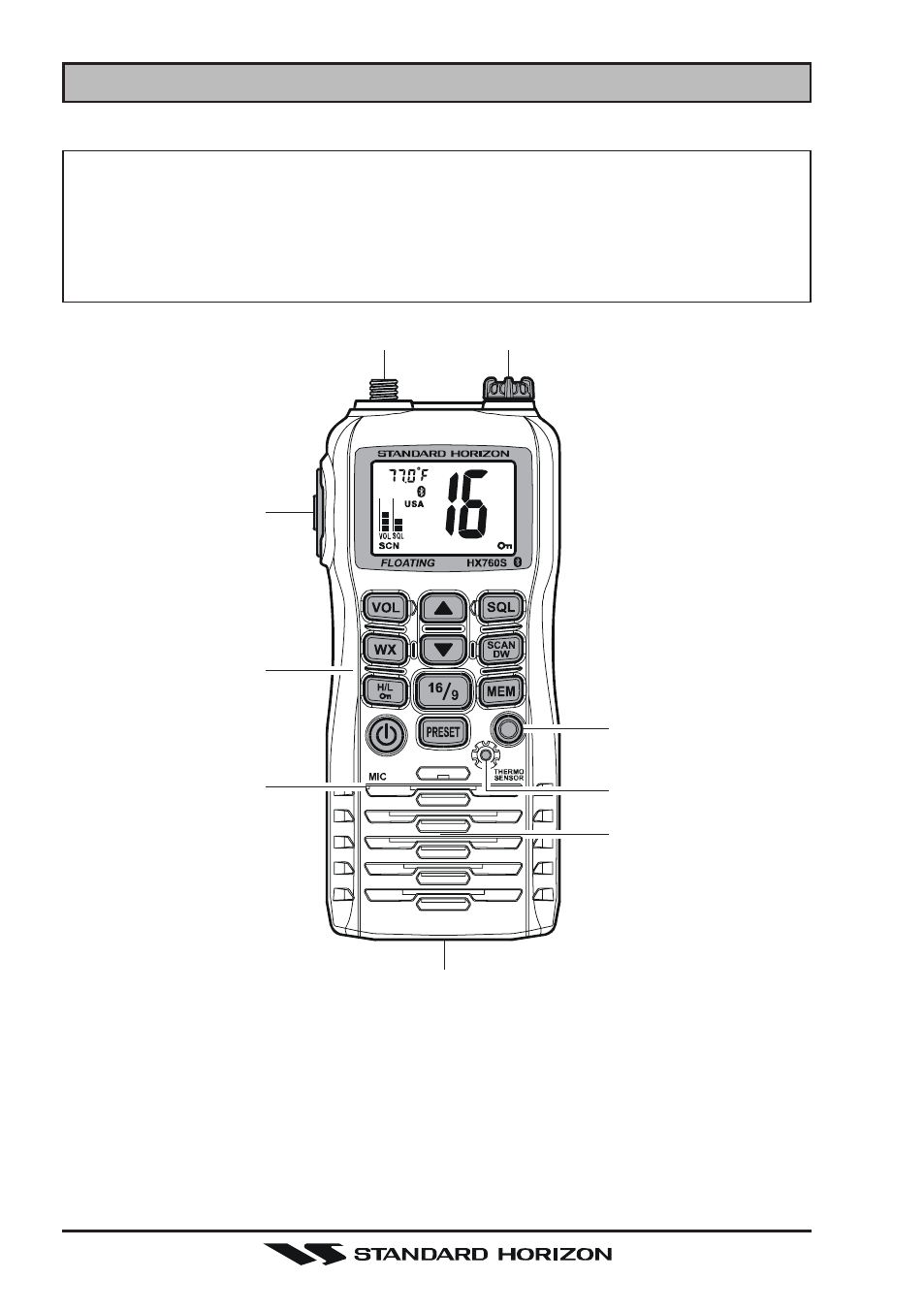

d c
