USER’S INSTRUCTIONS

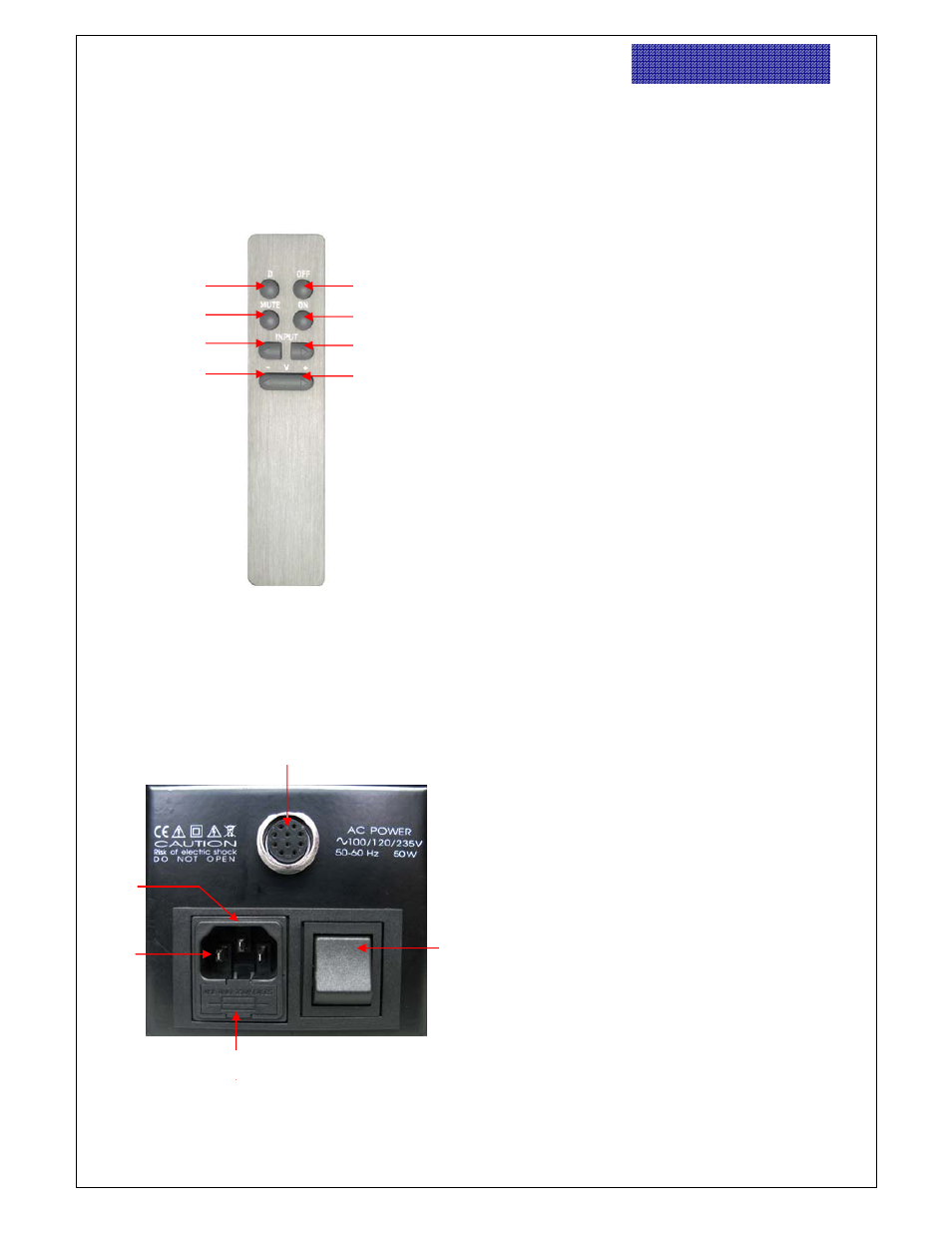

3. REMOTE CONTROL
Infrared LED emitter
(1) Switch on/off the digital display.
(2) Mutes the sound or back to previous
volume.
(3) Selects inputs (-).
(4) Lowers sound volume (-).
(5) Sets the amplifiers in Stand-By mode
(6) Wakes up the amplifiers (Stand-by off)
(7) Selects inputs (+).
(8) Rises sound volume (+).
4. POWER SUPPLY UNIT
(1) 10-Pins Power-supply plug to connect
to the VP100 preamplifier
(2) On/Off switch
(3) Mains plug inlet.
(4) 500mA
mains fuse
(5) Mains phase input pin.
