Setup
AM
DC 9V
TEL LINE
Connect the
telephone line cord
Connect the
power cord
Modular
telephone jack
Standard electrical
outlet

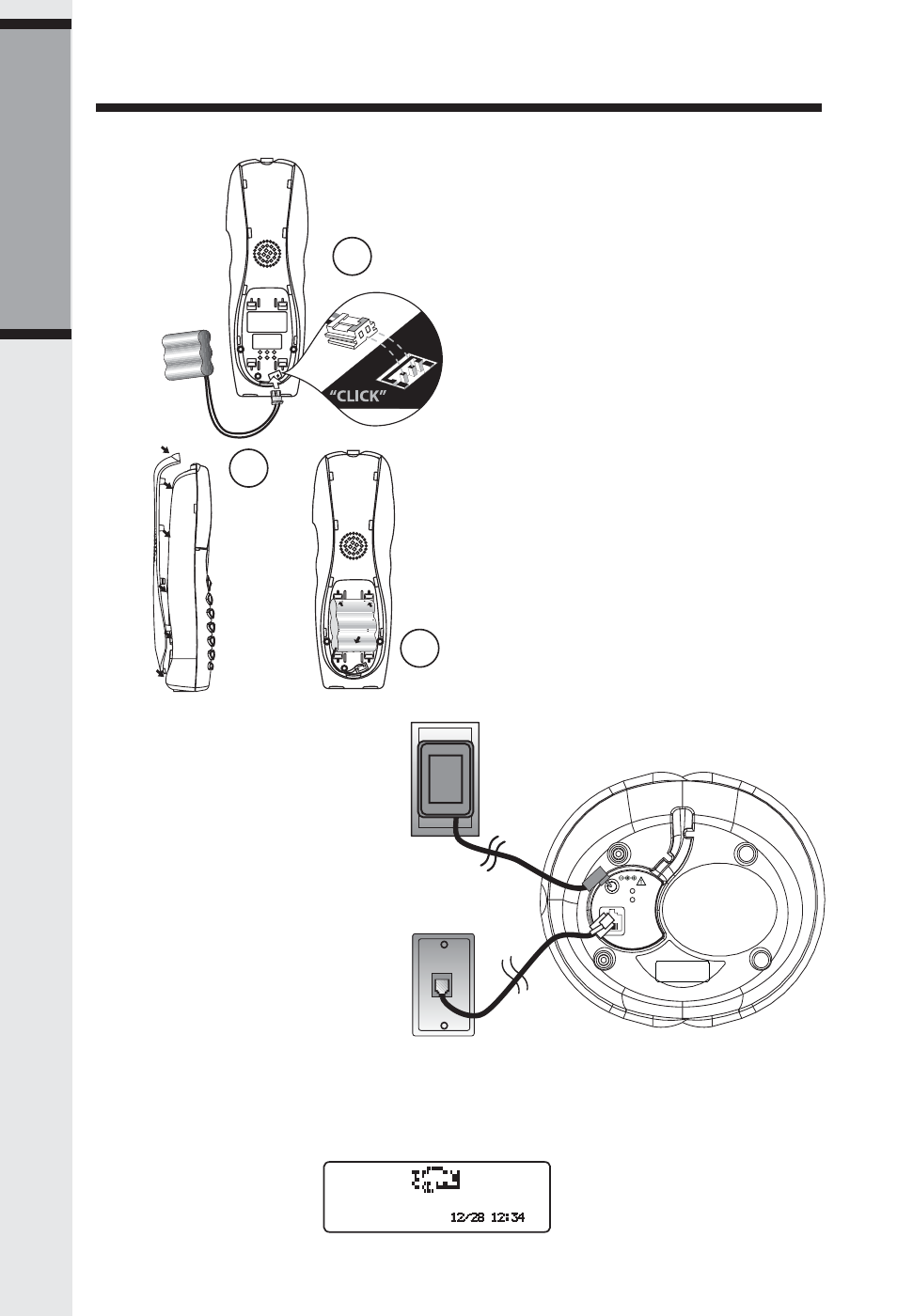

Getting Started
Connecting Power to Base Unit
Choose a location for the base near
an electrical outlet and a telephone
jack.
This phone requires a modular tele-
phone jack and a standard electrical
outlet (110V AC) not controlled by a
wall switch. Plug the AC power adaptor
into the electrical outlet and the DC
connector to the jack on the bottom
of the base unit.
Installation of Battery in Handset
1. Align the two holes in the plug with
the socket pins, then snap the plug
into place.
2. Place the battery in the compart-
ment, with the wires in the lower
left corner. Angle the top half of the
battery in first, under the two claws.
Then snap the lower portion of the
battery into place.
3. Replace the handset back cover by
firstly inserting the bottom portion,
then snap the top into place. (See
additional diagrams on page 5.)
Charge the Battery
The handset should be charged initially for 15 hours. Afterwards, a maintenance charge of
10 hours is sufficient. Maximum talk time on a full charged battery is approximately five
hours. Maximum standby time is five days. Look for the charging bull animation on the
handset as it charges:
3
1
2
