VuPoint Solutions DC-WPST591-VP - Manual

DC-WPST591-VP (series)
User’s Manual
1. Getting to know your camera.
1.1 Features
5.0 Mega pixels resolution sensor
Video clips
Audio recorder
PC camera
Built-in Microphone
Built-in flash
TV output
2.0" LTPS color display
Internal 16MB flash memory with SD card support (SD card not included)
Macro mode
Driver free for Windows XP/Vista and MAC 10.x or above
1.2 Specifications
1.3 System requirements

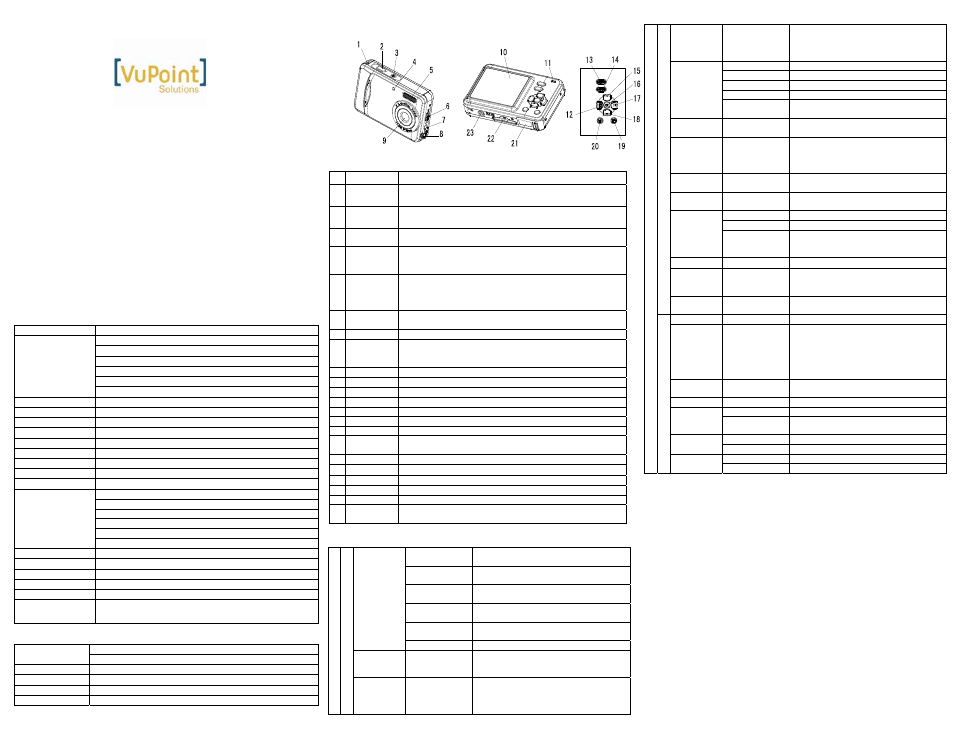

2. Functional parts:
1 Strap hook Hook for attaching the wrist strap to the camera.
2 Shutter
Press this button to take photographs or to start/stop recording
a short video clip.
3
Power on/off
button
Press this button to turn on, press again to turn off.
4 Self-timer
indicator
Blinks when the self-timer function is operating.
5 Flash light
Use the built-in flash to give the subject extra lighting in dark
surroundings (the best flash distance is recommended within
4.9ft.).
6
Macro
switch
Macro mode: Select this mode to take close-up photographs
(distance 0.4 ft. – 0.6 ft).
Normal mode:
Select this mode to take photographs from 1.6 ft
- infinity
7
USB
interface Using this connection, you can download photographs and
video clips to a computer.
8 AV port For television connection.
9 Lens
Records the image to be taken.
Note: Keep the lens clean. Dirt and fingerprints will affect the
quality of the picture.
10 LCD screen Display photographs, video clips, camera setting and menu.
11 Busy LED When the indicator is lit, the camera is in busy mode.
12 Left/ display For menu LEFT selection, and LCD display on / off.
13 Menu For camera setting.
14 Mode Press it to select different modes.
15 UP UP & Digital zoom in
16 OK Press it to confirm changes.
17
Right/flash
light
For menu right selection, and selection of flash light mode.
18 Down DOWN & Digital zoom out
19 Playback Press it to enter playback mode.
20 Delete Press it to delete the photo in playback mode.
21 Battery door 2xAAA alkaline batteries
22 SD card slot SD card slot.
23
Tripod
connector
To place the camera on tripod.
3. Setting your digital camera.
12M pixel
resolution *4032 x 3024
8.0M pixel
resolution *3264 x 2448
5.0M pixel
resolution 2560 x 1920
3.1M pixel
esolution
2048 x 1536
1.3M pixel
resolution 1280 x 960
Size
VGA resolution 640 x 480
Quality
Fine(Default)/Sta
ndard/
Economy
Picture quality setting
SET
Capture
Scene mode
Auto(Default)/Sp
ort/Night/
Portrait /Landscap
e/Backlight
Scene setting
Exposure
value
+/-2, +/-5/3,
+/-4/3,
+/-2/3,+/-1/3
+/-1, 0(Default)
Level of exposure
Auto (Default) Automatic white balance
Daylight White balance selected for daylight surroundings
Cloudy White balance selected for cloudy surroundings
Tungsten White balance selected for tungsten lighting
White
balance
Fluorescent
White balance selected for fluorescent
surroundings
ISO
Auto(Default)/10
0/200 Sensitivity select
Color
Standard
efault) / Vivid /
Sepia /
Monochrome
Color setting
Saturation
Normal(Default) /
High / Low Saturation setting
Sharpness
Normal(Default) /
Hard /Soft Sharpness setting
2s Set the delay time at 2s to take a picture
10s Set the delay time at 10s to take a picture
Self timer
10+2s
Set the delay time at 10s to take a picture,
and then every 2s to take pictures
automatically.
Date Input Off(Default)/Set DD,MM,YYYY
Time Stamp
Off(Default)/Date
Only/Date &
Time
Shows the date and / or time on the
pictures
Continuous
shoot Continuous
shoot Continuously shoot up to 3 pictures
within 10 seconds.
Format Execute/cancel Format the memory card.
Language
English(Default)/
T-Chinese/S-Chi
nese/French/Ger
man/
Italian/Spanish/P
ortuguese
Select display language
Auto power
off
1/3/5 min and Off
Auto power off in 1min, 3min (default) or
5 min if not in operation
Sys. Reset Execute/cancel Restore default settings
50Hz Main European electricity frequency Light-
Frequency
(Flicker)
60Hz Main American electricity frequency
NTSC American and Japanese video format
TV- Out
PAL European video format.
PC Cam Work as a web camera.
Setup
USB
Disk Drive Use as a portable disk.
Note: The camera will remain the last setting when it is turned off.
4. Explanation of the status icons on the
LCD screen.
Sensor 5.0 Mega pixel CMOS sensor
12.0 Mega pixels: (4032x3024) (Hardware Interpolation)*
8.0 Mega pixels: (3264x2448) (Hardware Interpolation)*
5.0 Mega pixels: (2560x1920)
3.1 Mega pixels: (2048x1536)
1.3 Mega pixels: (1280x960)
Image resolution
300K pixels: (640x480)
Lens F/2.8 f=8.5mm
Focus range 1.6 ft. - Infinity
Macro mode 0.4ft. – 0.6ft.
Digital zoom 8x
Flash strobe Built-in (Auto/force/off)
LCD display 2.0" color LTPS TFT
White balance Auto/Daylight/cloudy/Tungsten/Fluorescent
Video mode 30fps@QVGA &20fps@VGA
Built-in memory 16MB Flash memory
VGA: (640x480) --138 Pictures
1.3M: (1280x960) -- 54Pictures
3.1M: (2048x1536) -- 28 Pictures
5.0M: (2560 x 1920) -- 21 Pictures
8.0M: (3264x2448) -- 14 Pictures Picture Capacity in
16MB memory (The
quantity of pictures
varies and depends on
the contents of the
photos.)
12M: (4032x3024) --3 Pictures
External memory card SD card supports up to 8GB (SD card not included)
File format
Picture: JPEG, Video: AVI, Voice: WAV
Self timer 2, 10, 10+2 seconds
PC interface USB 1.1
TV-out NTSC/PAL
Power source
2xAAA alkaline batteries(Rechargeable batteries not
recommended)
Windows XP/Vista or above
Operating System
Mac 10.x or above
CPU Pentium II or above
RAM At least 64MB
Interface USB port
CD 4x speed CD ROM or above
