CUSTOM PANEL–REFRIGERATION

Built-In 42”W. Side-By-Side Refrigerator/Freezer &

Refrigerator/Freezer with Dispenser—DFSB423/423D

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M

1 - 8 8 8 - V I K I N G 1

R E V I S E D 8 / 1 1 / 0 9

© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE

22-13

/16”

(57.9

cm)

75-1/

2”

(191.8

cm)

3/4

(1.9

cm)

3/4

(1.9

cm)

18-3/

16”

(46.2

cm)

22-13

/16”

(57.9

cm)

75-1/

2”

(191.8

cm)

3/4

(1.9

cm)

18-3/

16”

(46.2

cm)

31-5/

8”

(80.3

cm)

10-11

/16”

(27.1

cm)

12-3/

8”

(31.4

cm)

3-5/3

2”

(8.0 c

m)

3/4

(1.9

cm)

DFSB423

DFSB423D

DFSB423

Note: Panel overlays must be dry, solid, straight one piece panels. The use of multiple panel pieces to achieve the dimensions is not
recommended.
Note: A 1/4” wood filler or insulation filler must be used between the door and 3/4” wood panel to prevent condensation from form-
ing. The dimensions of the 1/4” wood filler are 1/4” smaller than the dimensions shown.

Dimensions & Specifications

DFSB423/423D

Overall panel width

Refrigerator front

22-13/16” (57.9 cm)

Freezer front

18-3/16” (46.2 cm)

Overall panel height

75-1/2” (191.8 cm)

Overall panel depth

3/4” (1.9 cm)*

Maximum panel weight

Refrigerator front

40 lbs. (18.1 kg)

Freezer front

35 lbs. (15.9 kg)

*Panel thickness must not exceed 1” (2.5 cm) on hinge side. Thicker panels will interfere with door swing and clearance.

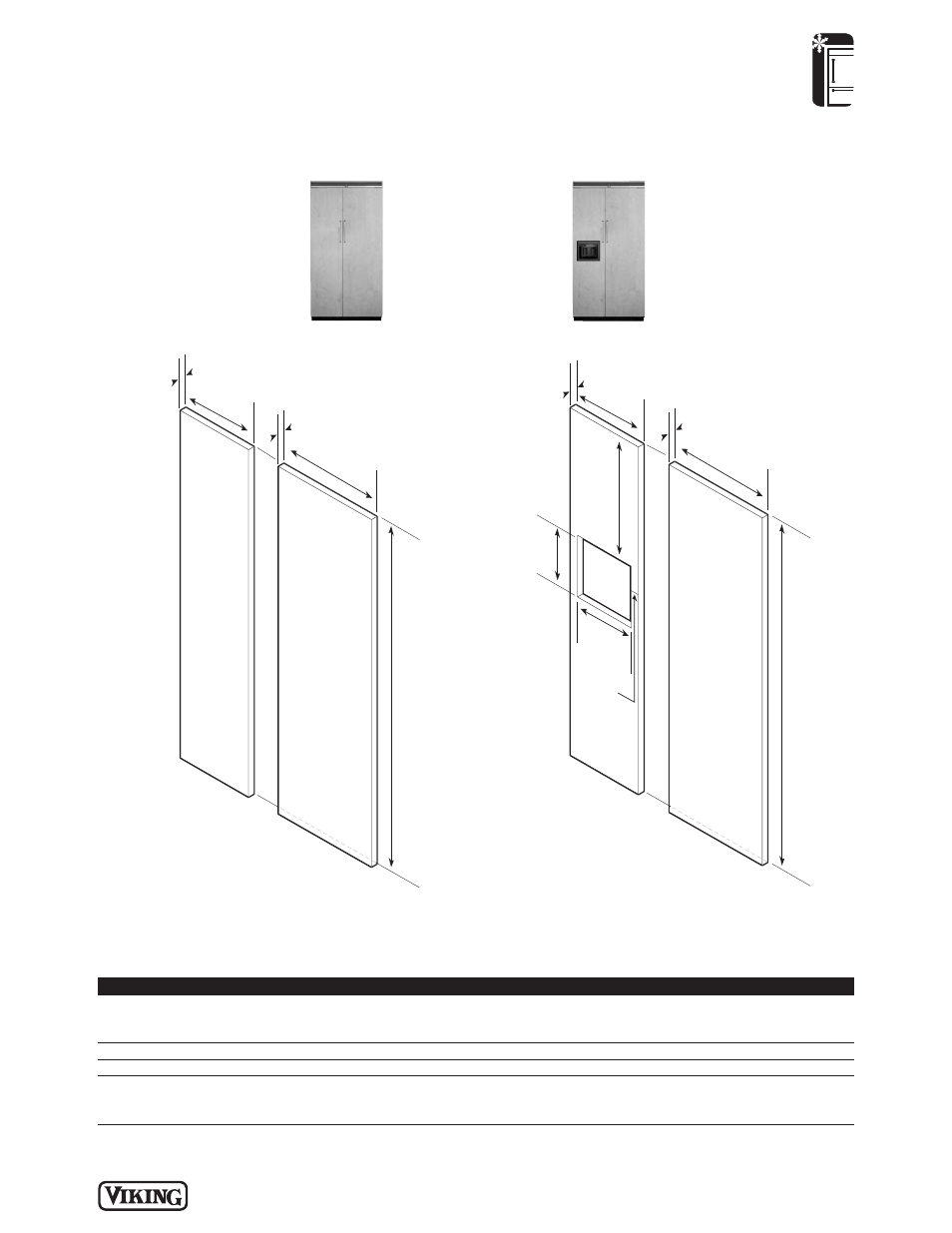

CUSTOM PANEL DIMENSIONS

DFSB423D
