Page 25
- 24 -
Electrical Wiring Diagrams
CAUTION:
• Hidden lines are the field wirings
• Use minimum 14 gauge wires for power lines.
• If equipped with low ambient condition kit, use low ambient temperature
wiring diagrams.
• A safety switch is always recommended for the condensing unit.

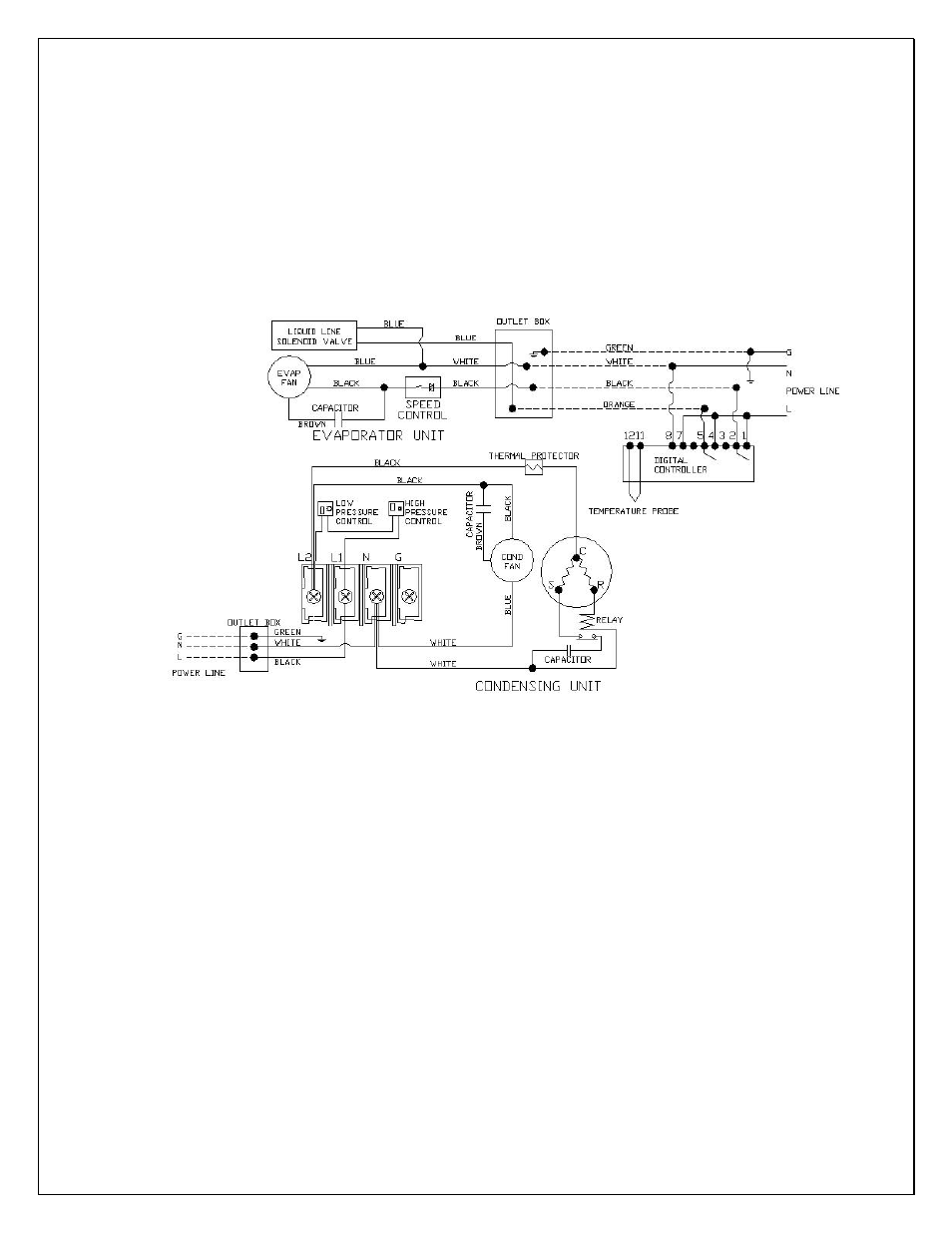

Fig. 15 WM-4500DS Wiring Diagram
