Relocate Detachable Speakers
If you decide to relocate or place speaker’s assemblies away from the TV set, it is recommendable to
follow the procedure or steps shown below.
1.
Select the place and then measure the distance from new location to the TV set.
2.

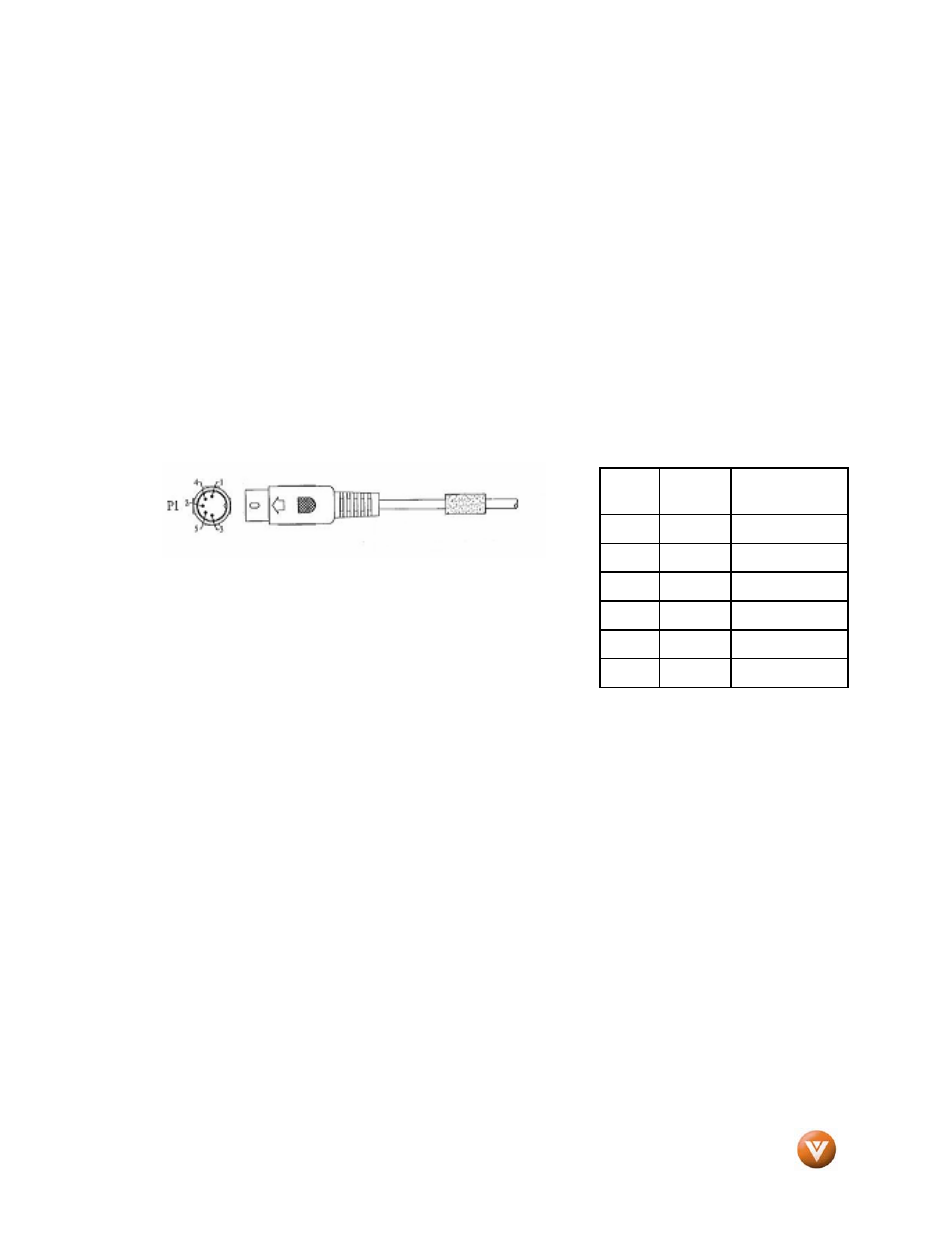

Make sure that the extension cables follow the pattern shown below.
3. Please notice that you will need a female (5-pin) connector at one end and a male (5-pin)
connector at the other end to make the speaker’s cable extensions.
WIRING TABLE
4.
Make sure that each color of the wire matches to the designated pin and hole’s patterns.
Note: This section is exclusive for TV owners who want to place the speakers away from the TV set.
PLUG
P1
WIRE
COLOR
CONNECTOR
1 Red
P2
2 NC
3 Black
P3
4 NC
5 NC
Shell Drain
