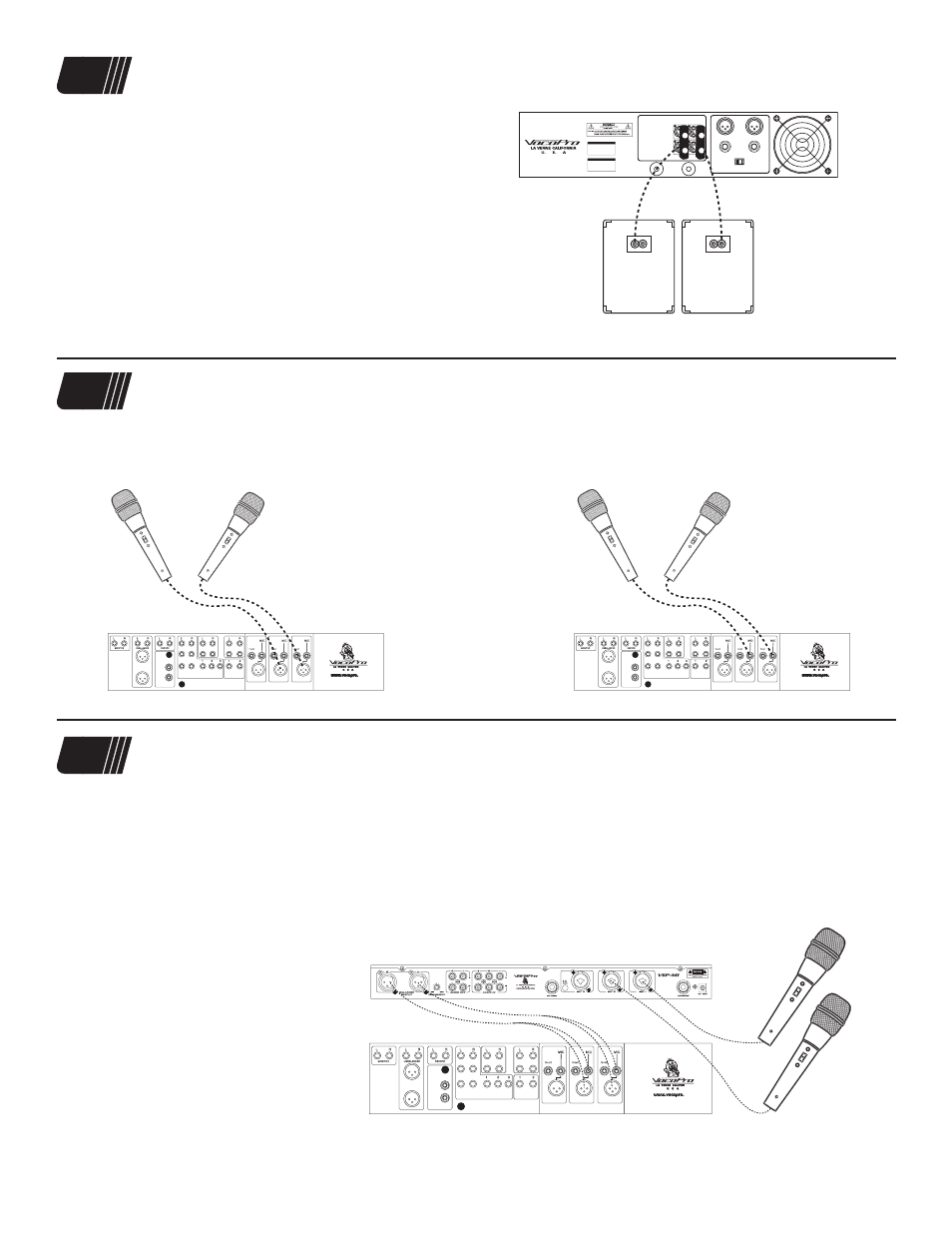

VP-600 PRO to VX-15 speakers
Using two 9’ MDP (Banana Plug) to ¼” speaker cables
1. Connect the MDP end to CH.B on the rear panel of the
VP-600 PRO and
2. Connect the ¼” end to one of the two VX-15’s.
3. Repeat this for the second speaker, except now connect
the MDP end to CH. A on the VP-600 PRO.
4
STEREO MONO BRIDGE
VX-15 Speaker #1 VX-15 Speaker #2
INPUTS
CH. B CH. A
BALANCED
BRIDGED
OUTPUTS
MODEL VP-600 PRO
STEREO 300W
PER CHANNEL
INTO 4 OHM
600W MONO
BRIDGED INTO
8 OHM
CH. A MONO CH. B
Connecting Microphones to the KJM-8000 PRO
Using either a mic cable with two XLR ends (Fig. A) or an XLR to ¼” cable (Fig. B):
Connect the microphone cables to the MIC inputs on the rear panel of the KJM-8000 PRO.
5
CDG(1)
DVD(2)
LD(3)
CDG(1)
DVD(2)
LD(3)
Adding the VSP-M1 to the CLUB-6800 system
Using either a mic cable with two XLR ends or an XLR to ¼” cable:
1. Connect the XLR(f) end to the LEFT BALANCED OUTPUT on the rear panel of the VSP-M1.
2. Connect the XLR(m) or ¼” end to MIC input 1 on the rear panel of the KJM-8000 PRO.
3. Follow the above steps, now going from the RIGHT BALANCED OUTPUT on the VSP-M1 to MIC input 2 on the rear panel
of the KJM-8000 PRO.
4. Connect the mics to the mic inputs on the rear panel of the VSP-M1.
6
CDG(1)
DVD(2)
LD(3)
VSP-M1 Processor
KJM-8000 PRO Mixer
KJM-8000 PRO Mixer
VP-600 PRO Amplifier
